– 120 mm cooler
– 5 x 6 mm nickel-plated copper heat pipes for optimal cooling
– ARGB lighting for customizing your system
– Quiet PWM fan with FDB fluid dynamic bearing
– Compatibility with a wide range of sockets for Intel and AMD
– Efficient 265W TDP cooler

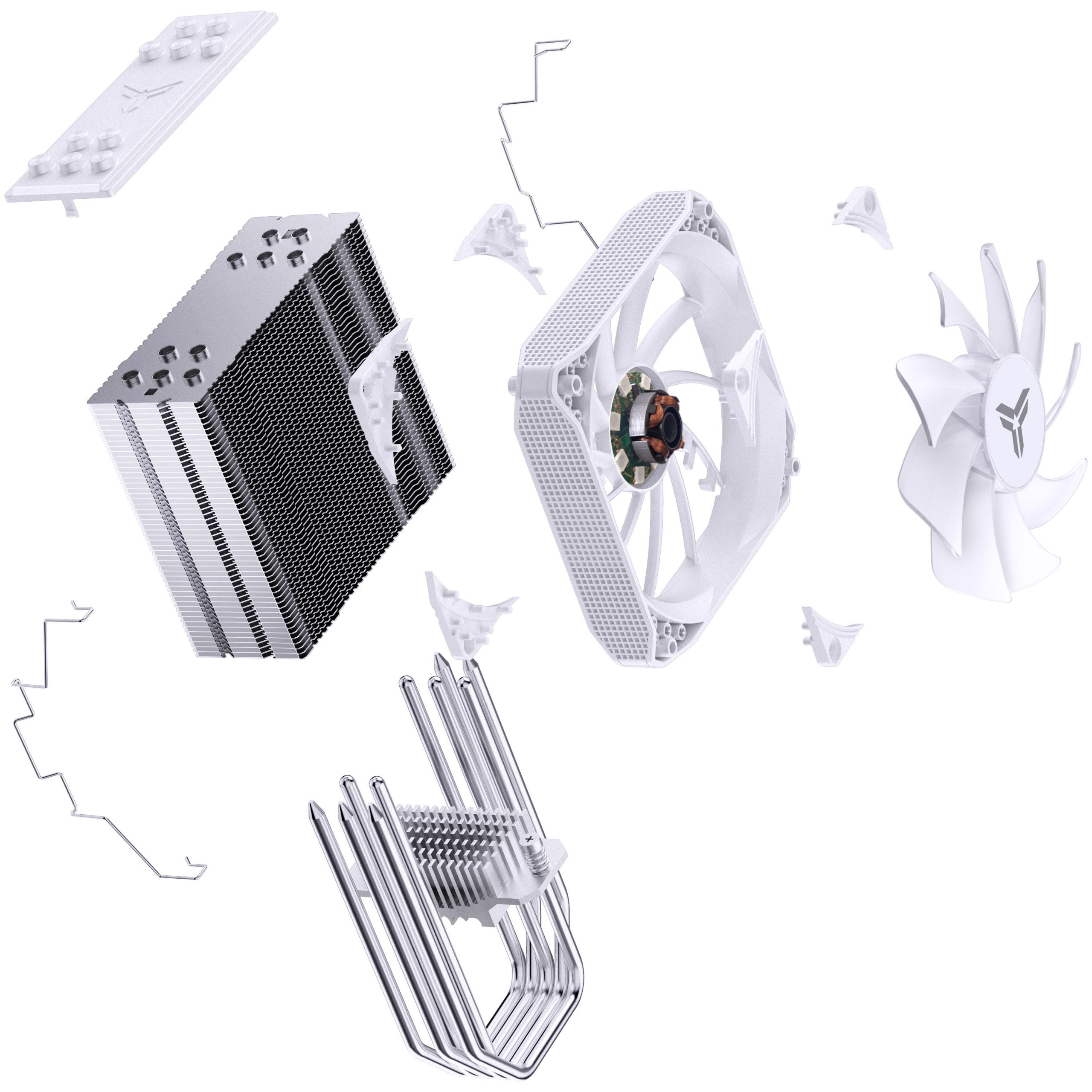

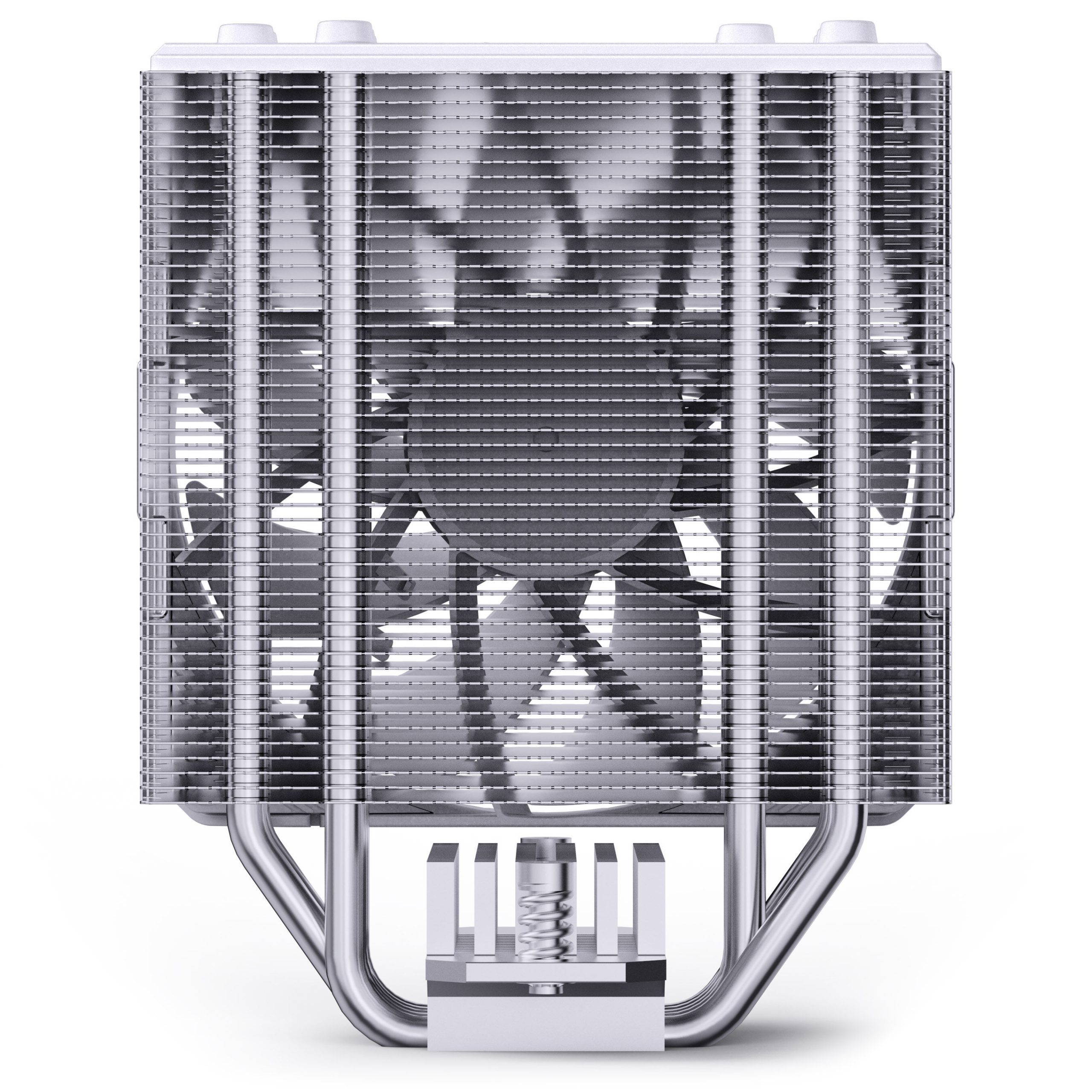

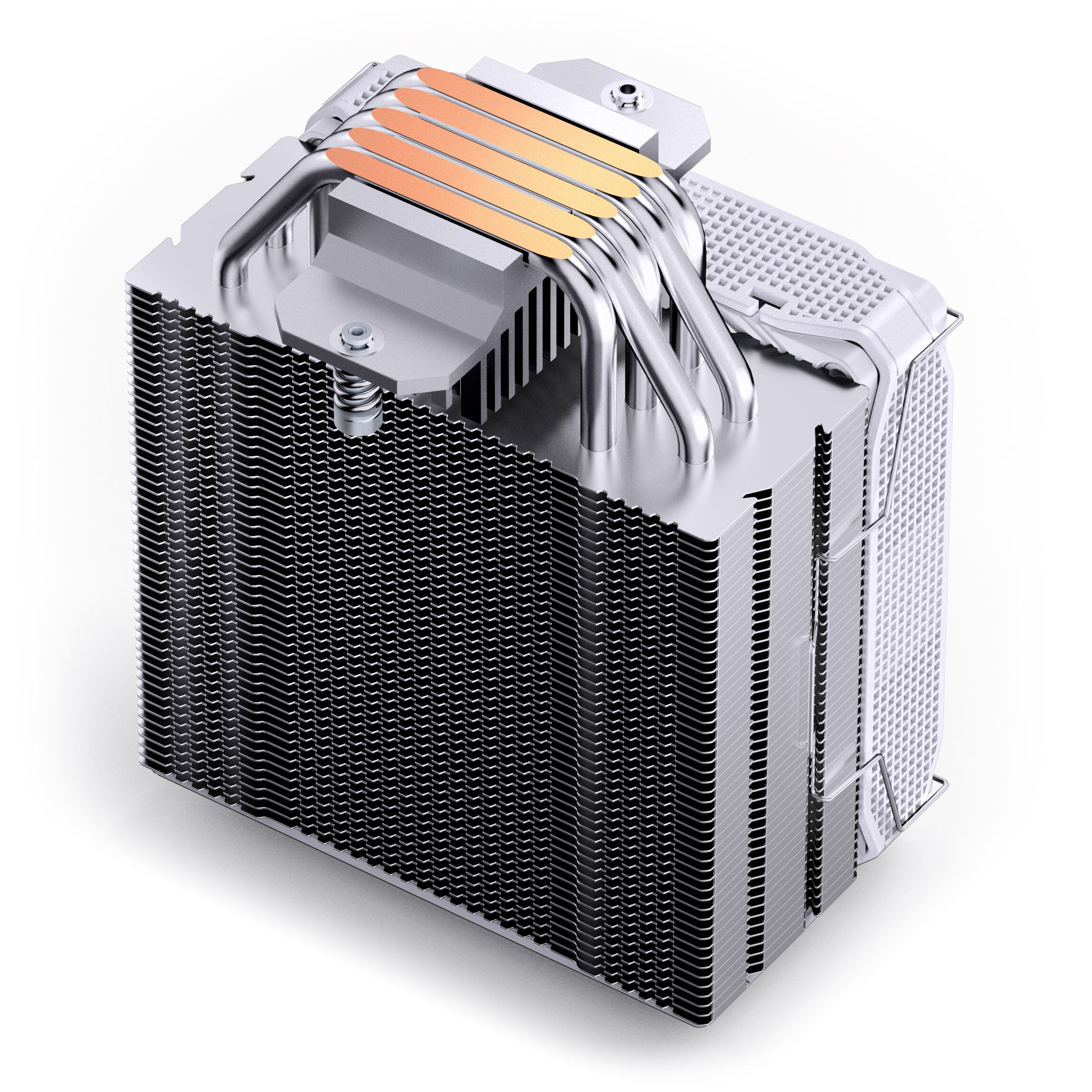

Jonsbo CPU coolers are equipped with 5 x 6 mm nickel-plated copper heat pipes. The use of optimized cooling technology ensures efficient cooling.

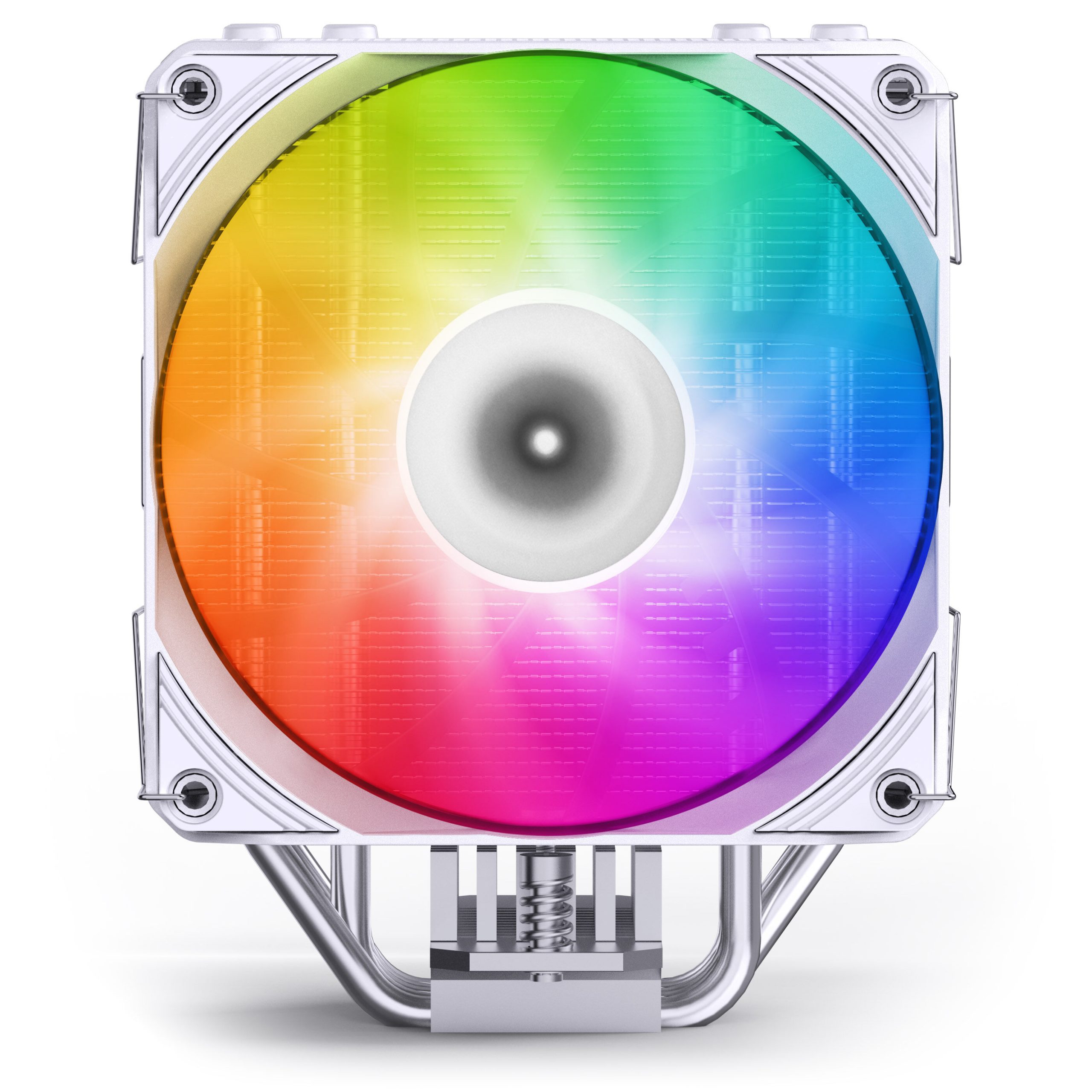

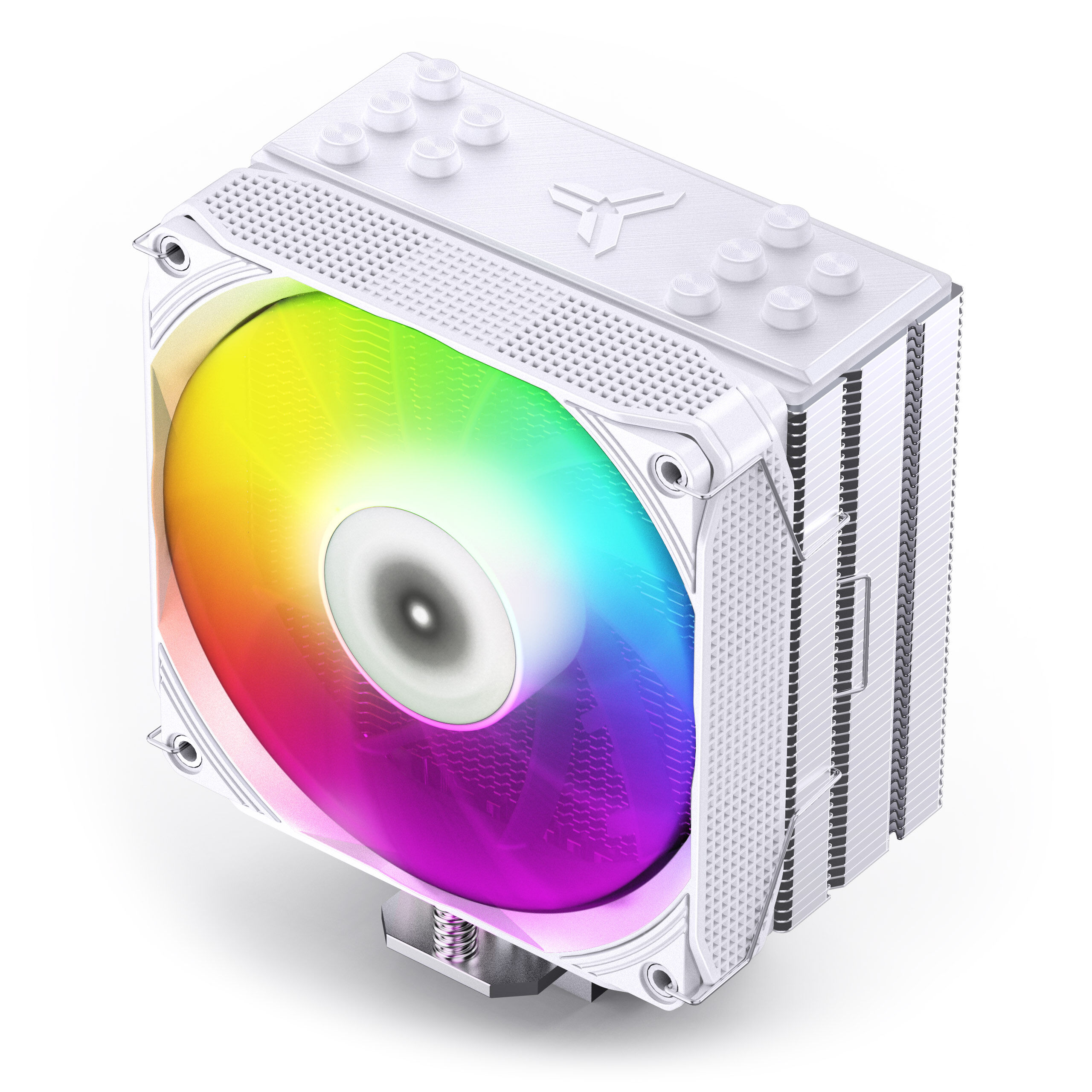

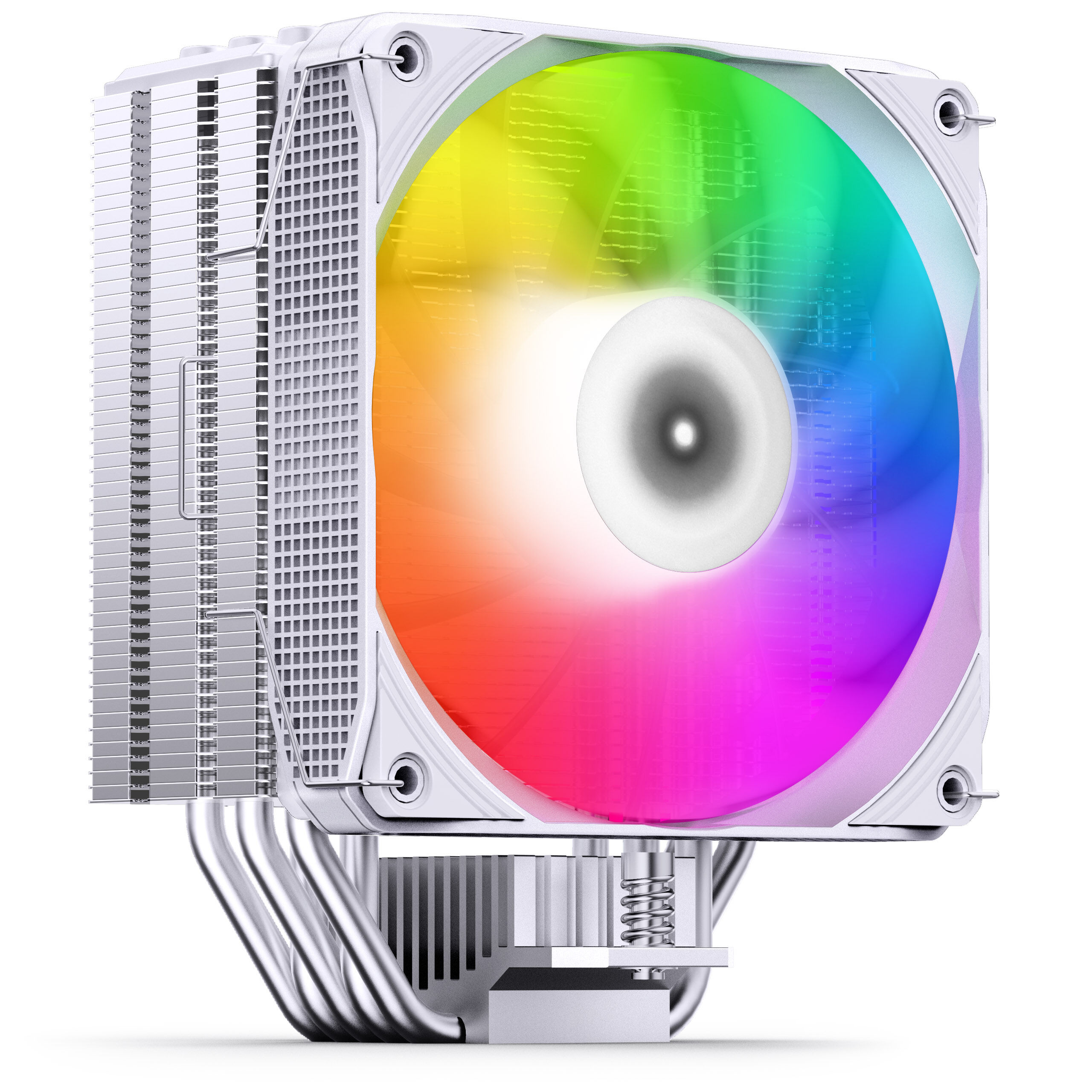

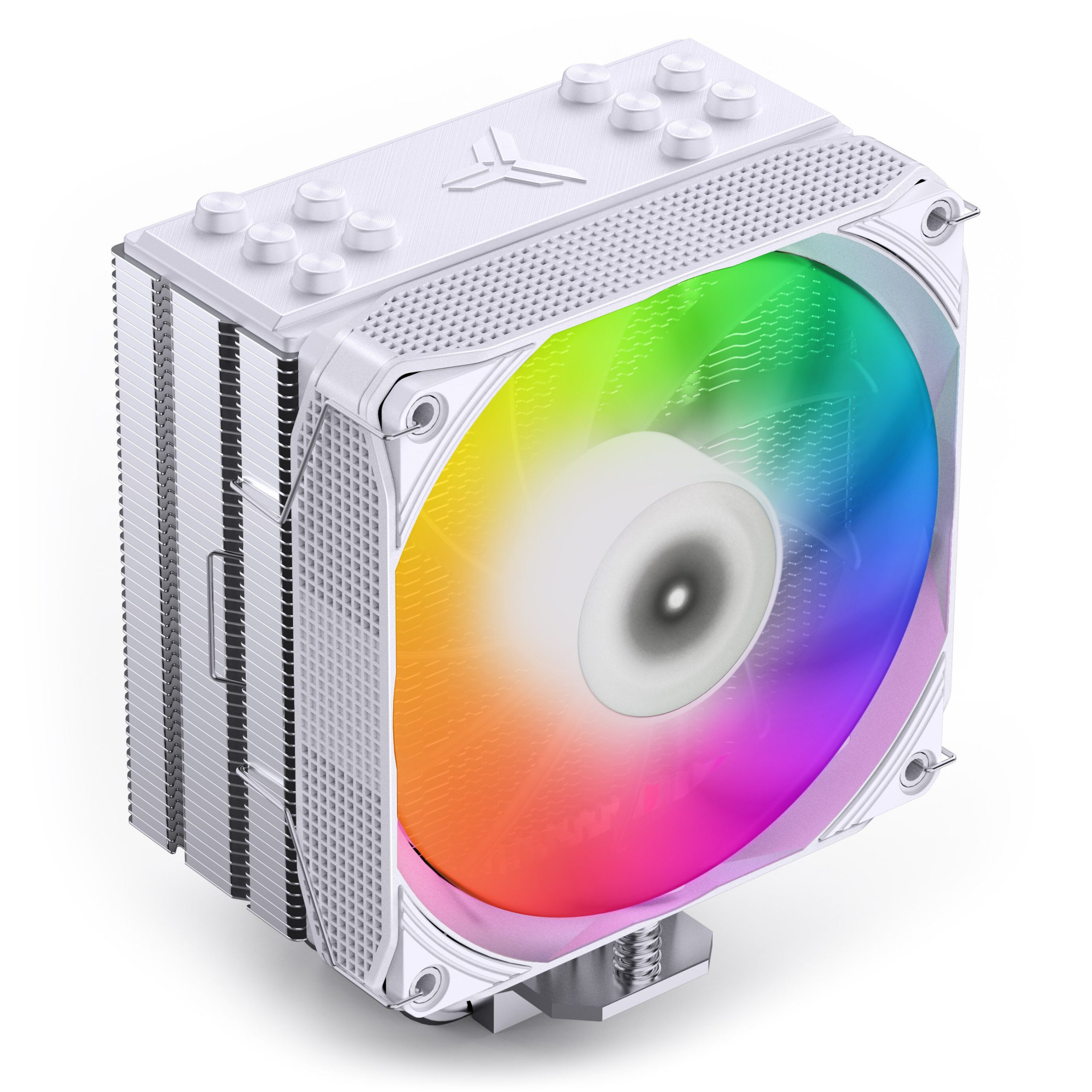

ARGB LIGHTING SYNC
With the great addressable RGB lighting system, the PISA A5 allows you to customize the color synchronization and visual lighting effects for your case.

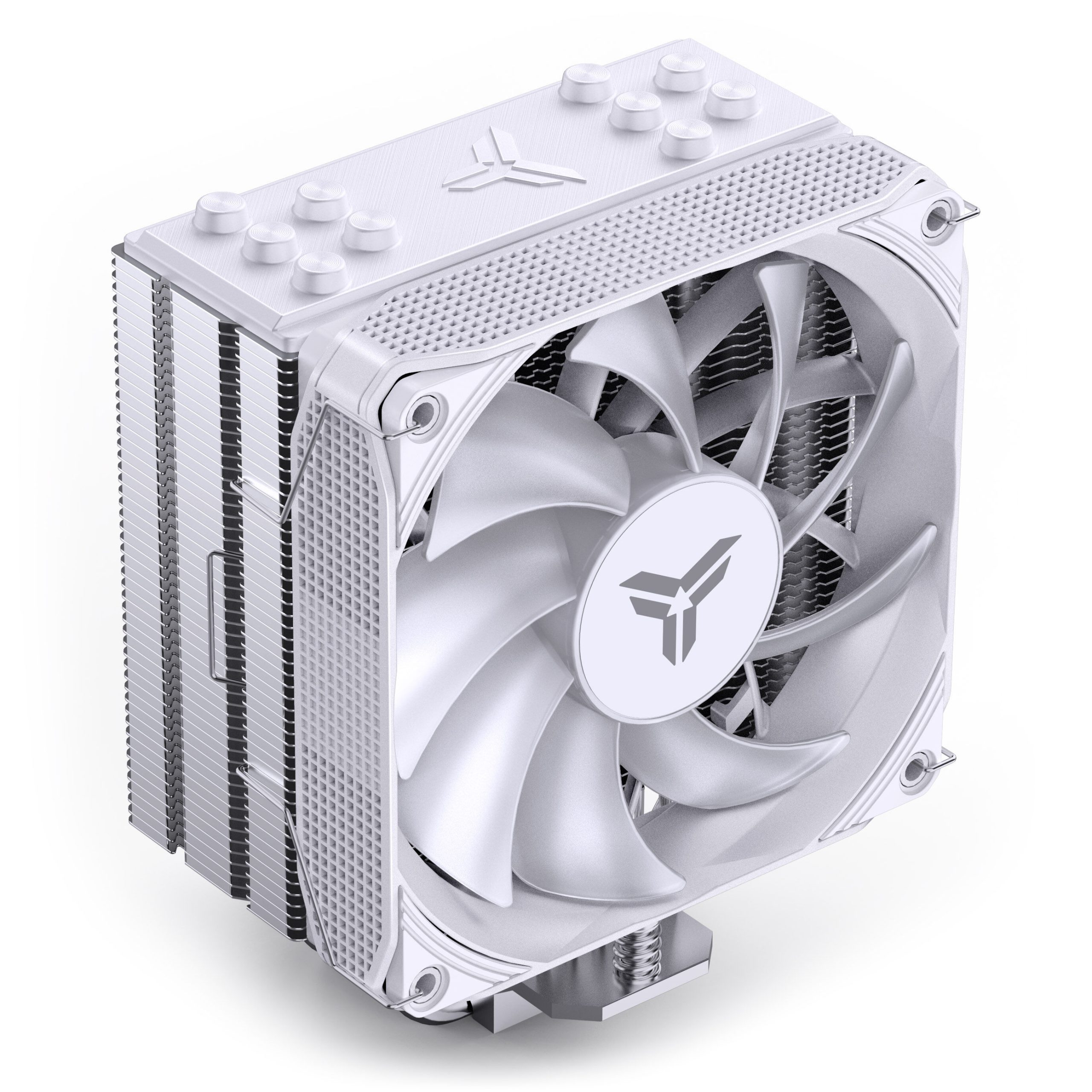

Quiet PWM fan system
The PISA A5 has minimal noise thanks to FDB fluid dynamic bearings and 8 rubber pads to prevent vibration. The fan runs efficiently, smoothly and quietly, with an operating noise of 36.8 dB (max.).

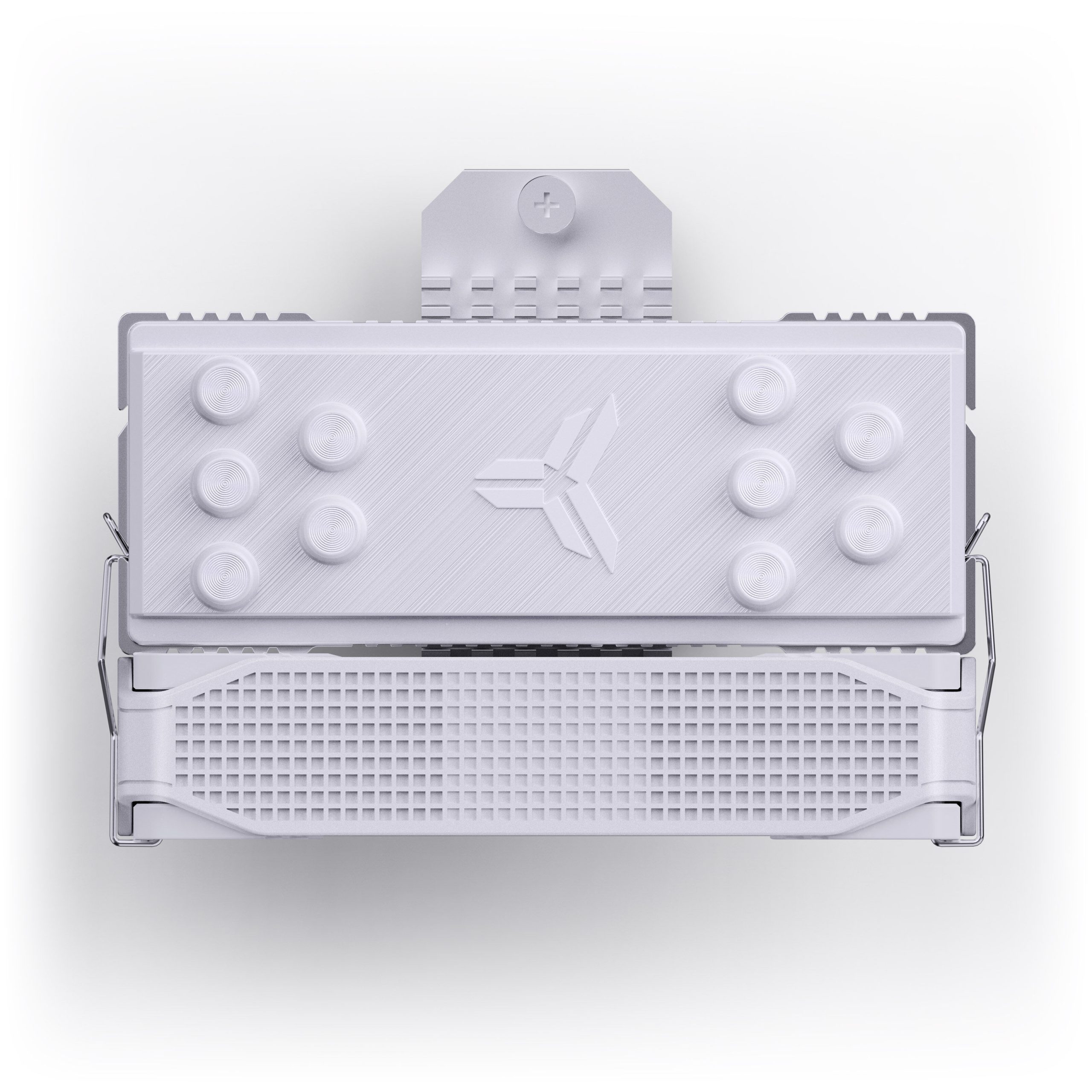

RAM-Friendly and Easy Installation
With its compact design of 120 x 75 x 153mm and adjustable fan, Jonsbo AMD CPU cooler is easy to match with almost any RAM. The cooling component comes with bracket and back plate, which can be easily installed on Intel and AMD motherboards
Socket Widely Compatible
Jonsbo PISA A5 CPU air cooler supports Intel i7-12700k, i5-12600k, Ryzen7 7700x, 7 5800x, etc. Compatible sockets Intel LGA 1151/1150/1155/1156/1200/1700, AMD AM5/ AM4.
| Model | PISA A5 White |
|---|---|
| Weight | 670 g |
| Color | White |
| Material | Copper |
| D-TDP | 265 W |
| Dimensions | 120 x 75 x 153 mm (L x W x H) |
| Heatpipes | 5 × 6 mm |
| Fan Dimensions | 120 x 120 x 25 mm |
| Fan Speed | 800–1850 RPM (±10%) |
| Airflow | 138.07 m³/h (max) |
| Noise Level | 36.8 dB(A) (max) |
| Bearing Type | FDB (Fluid Dynamic Bearing) |
| MTTF | ≥ 50,000 h @ 25°C |
| Connection | 4-pin PWM |
| Rated Current | Fan: 0.28 A | LED: 0.36 A |
| Rated Voltage | Fan: 12 V | LED: 5 V |
| Power Consumption | Fan: 3.36 W | LED: 1.8 W |
| Compatibility | Intel: LGA 1700 / 1200 / 115X AMD: AM4 / AM5 |
