After Intels Broadwell CPUs have slow in coming because of delays in 14-nm process long time now, so that only a short time the next generation comes later: Skylake. This has a newly developed micro-architecture with a constant (proven) manufacturing process and does so in accordance with its own tick-tock model is a tock. Accordingly big are the changes compared to its predecessor, and some of them pose a real revolution.

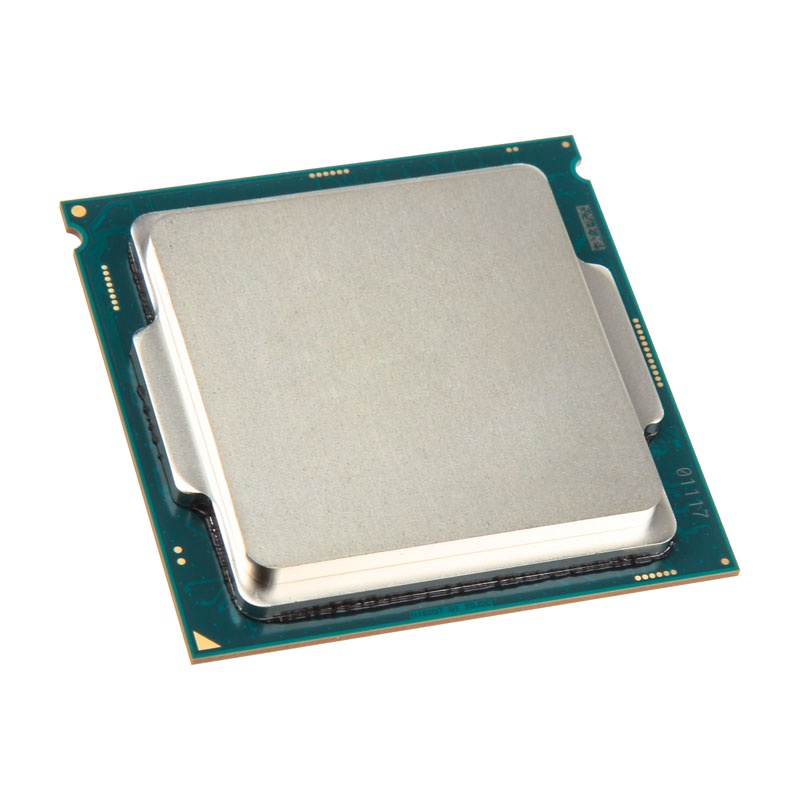

Intel Xeon E3-1270 3.6 GHz Intel V5 (Skylake) Socket 1151 - boxed
After Intels Broadwell CPUs have slow in coming because of delays in 14-nm process long time now, so that only a short time the next generation comes later: Skylake. This has a newly developed micro-architecture with a constant (proven) manufacturing process and does so in accordance with its own tick-tock model is a tock. Accordingly big are the changes compared to its predecessor, and some of th...
- SKU: HPIT-242
- MPN: BX80662E31270V5
- EAN: 5032037076807
- Warranty: 12 Months
After Intels Broadwell CPUs have slow in coming because of delays in 14-nm process long time now, so that only a short time the next generation comes later: Skylake. This has a newly developed micro-architecture with a constant (proven) manufacturing process and does so in accordance with its own tick-tock model is a tock. Accordingly big are the changes compared to its predecessor, and some of th...
Featured products
No products found
The most important change is undoubtedly the support of modern DDR4 memory, the significantly higher clock rates and low power consumption features compared with DDR3 – even against DDR3L. Nevertheless Skylake is basically still compatible with DDR3L, but mainly plays a role in notebooks and mini-PCs. The change to a new storage technology also requires a change of the base, so the CPU now the LGA used 1151st
The Intel Xeon E3 1270 v5 is with its four physical cores that can process eight threads simultaneously (Hyper-Threading), particularly for servers and workstations, while putting only one processor socket, but have to simultaneously meet yet challenging tasks. To this end, the processor expects a high base clock of 3,600 MHz and thanks Intel Turbo Boost Technology in version 2.0, individual cores when necessary dynamically to up to 4.0 GHz are highly clocked. Together with the 8 MB L3 cache thus even complex arithmetic operations for these Xeon CPU easy to deal with. Despite the increased clock rate, the TDP will remain as in the Haswell predecessors at 80 watts.
In addition, Intel has implemented a range of professional features, ranging from the support for ECC RAM on the instruction set extensions SSE4.1 / 4.2 and AVX up to encryption via AES-NI. In addition, in the package: vPro, VT-x, VT-d and Trusted Execution Technology, Execute Disable Bit capability, OS Guard, Secure Key, Intel Software Guard Extension (SGX), Intel Memory Protection Extensions (MPX) and other features.

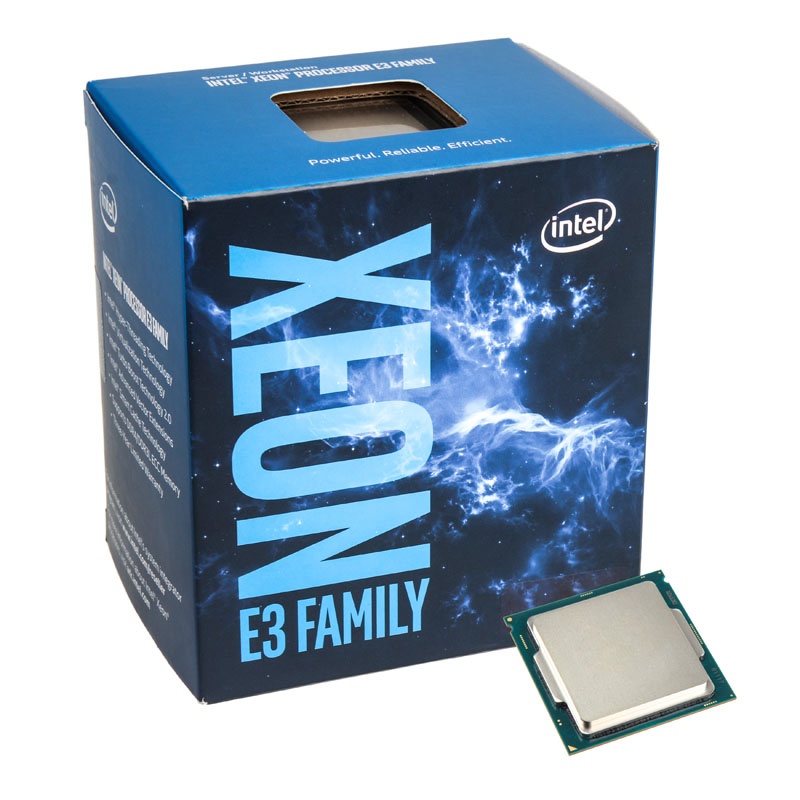

This boxed version of the processor include a matching CPU Cooler Intel supplied.
Technical details:
Type: Intel Xeon E3-1270 v5
Skylake
Manufacturing: 14 nm
Cores: 4/8 (physical / virtual)
Clock: 3.6GHz
Turbo mode (max.): 4.0 GHz
Level 3 cache: 8 MB
Storage Controller: internal
Memory channels: 2
Memory Standard: DDR4-1.866 / 2133 / DDR3L 1,333 / 1,600 @ 1.35V (motherboard dependent)
Integrated graphics unit: no
TDP: 80 Watt
Socket compatibility: 1151
Particularities:
4 cores + SMT (Hyper-Threading: virtual core doubling)
8 megabytes of L3 cache
Dual-Channel Interface
Support for DDR3L & DDR4
Turbo Boost 2.0
Supported RAM with ECC error correction
SSE4.1 / 4.2 & AVX2.0 instruction set
AES-NI encryption (Advanced Encryption Standards New Instructions)
Execute Disable Bit
OS Guard
Secure-Key
Intel Software Guard Extension (SGX)
Intel Memory Protection Extensions (MPX)
Intel vPro Technology
Intel Virtualization Technology (VT-x)
Intel Virtualization Technology for Directed I / O (VT-d)
