Intel Core i3-6098P 3.6GHz (Skylake) Socket 1151 - boxed

Correspondingly great changes over its predecessor, and some of them represent a real revolution. the most important change is undoubtedly the support of modern DDR4 memory that significantly higher clock rates and low power consumption features compared with DDR3 – even against DDR3L. Nevertheless Skylake is basically still compatible with DDR3L, but mainly plays a role in notebooks and mini-PCs. The change to a new storage technology also requires a change of the base, so that the CPU now the LGA used 1151st

The performance per clock (IPC) was again lifted slightly as with every generation in recent years, and the clock itself has risen again in many models – this CPU with two cores clocked at 3.6 GHz fast. The thermal design power (TDP) is only 54 watts – in the Haswell-generation dual-core CPUs were also standard at 54 watts. As these Core i3 dual-core processor has Intel Hyper-Threading Technology and can perform not only two, but four threads simultaneously. The integrated graphics called Intel HD Graphics 510 (stage GT1) supports DirectX 12 with the feature level 12_0, OpenGL 4.4 and OpenCL 2.0, as well as playback of 4K / UHD resolutions at 60 Hz via DisplayPort – a corresponding mainboard provided.

In addition to the increased CPU power, the clearly bored graphics unit and the DDR4 support also offer the new series chipsets 100 ( Sunrise Point) that accompany the new processors, some significant improvements. Instead of the previous eight PCI Express 2.0 lanes, for example, provides the Z170 chipset as top model now a full 20 lanes that are also with PCIe 3.0 still about twice as fast. It is important that, among other things for the equipment with M.2 slots that now – depending on the motherboard – can contain up to three slots, each with four PCIe 3.0-lines, where it previously was only one slot, which in most cases was connected only with two data lines. This allows having a bandwidth of approximately 4 GB / s per slot, the use of several extremely fast M.2 SSDs and enables bypassing the slower SATA 6Gb standards, to continue to exist up to six times. Even with USB 3.0 A lot has changed, from a maximum of 14 USB ports now support a maximum of 10 quick 3.0 standard and not a maximum. 6

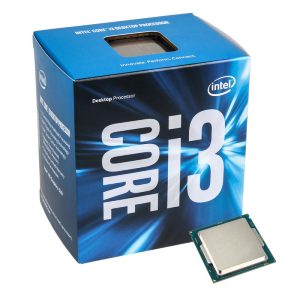

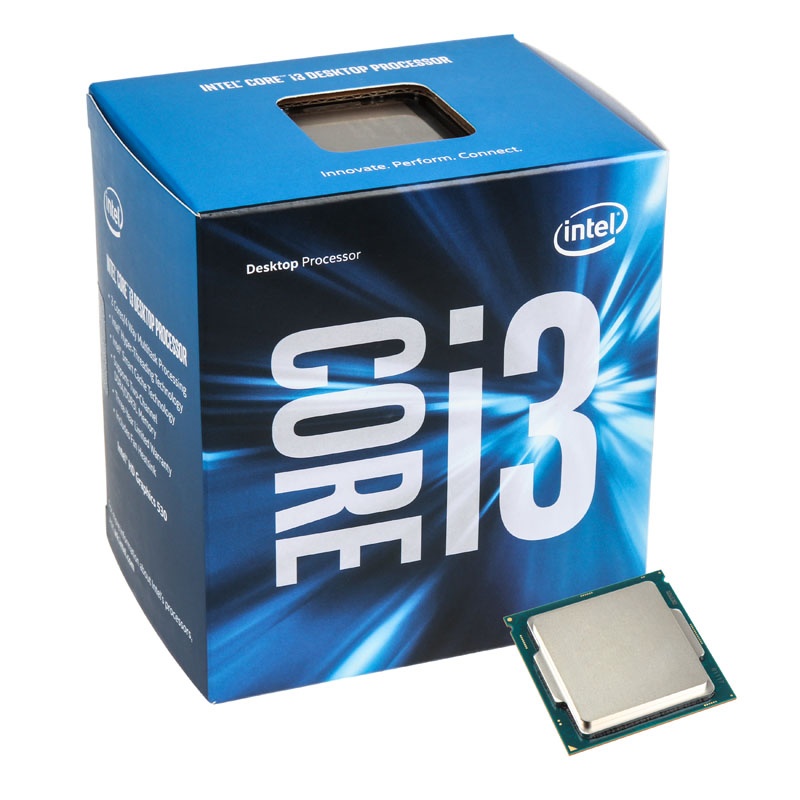

This boxed version of the processor include a suitable CPU cooler Intel supplied.

Technical details:
Type: Intel Core i3-6098P ( Skylake)
Production: 14 nm
Cores: 2/4 (physical / virtual)
Clock: 3.6 GHz
Level 3 cache: 3 MB
Storage Controller: internal
Memory channels: 2
Memory Standard: DDR4 / DDR3L (motherboard dependent)
Integrated graphics unit: Intel HD Graphics 510 (max 1.050 MHz.)
TDP: 54 Watt
Socket compatibility: LGA 1151
Particularities:
2 cores + SMT (Hyper-Threading: virtual core doubling)
3 megabytes of L3 cache
Dual-Channel Interface
Support for DDR4-2.133
Integrated Graphics Intel HD Graphics unit 510 (with DX12 support)
AVX2 instruction set (Advanced Vector Extensions)
AES encryption (Advanced Encryption Standard)
