The cutting-edge GPU architecture named Maxwell which inherits the Kepler generation, NVIDIA had first presented with the small, fine gaming Introductory card GeForce GTX 750 (Ti) based on the GM107-GPU - was followed in second Generation GTX 970 and 980 (GM204), the GTX 960 with the GM206 and finally - with 12 GB VRAM and 50% more shaders than the already very fast GTX 980 - the GeForce GTX Titan X as brachial fast but very expensive power hammer , With the GTX 980 Ti (factory overclocked here and with custom cooler Inno3D), there is now the technical basis with the GM200 chip at an affordable price, and also impressed this graphics card like the other cards of the Maxwell-generation through superior gaming performance in combined with very high energy efficiency.
The cutting-edge GPU architecture named Maxwell which inherits the Kepler generation, NVIDIA had first presented with the small, fine gaming Introductory card GeForce GTX 750 (Ti) based on the GM107-GPU - was followed in second Generation GTX 970 and 980 (GM204), the GTX 960 with the GM206 and finally - with 12 GB VRAM and 50% more shaders than the already very fast GTX 980 - the GeForce GT...
The cutting-edge GPU architecture named Maxwell which inherits the Kepler generation, NVIDIA had first presented with the small, fine gaming Introductory card GeForce GTX 750 (Ti) based on the GM107-GPU - was followed in second Generation GTX 970 and 980 (GM204), the GTX 960 with the GM206 and finally - with 12 GB VRAM and 50% more shaders than the already very fast GTX 980 - the GeForce GT...
No products found
The GM200 chip the Inno3D GeForce GTX 980 offered here Ti OC is clocked at the Basic Level with 1.038 MHz and boosts when needed on average 1,127 MHz, just with increased power and temperature target can even tease higher clock speeds. The map unfolds while an overwhelming gaming performance! This conjures up via DisplayPort 1.2, HDMI 2.0 and DVI even 4K (surround) resolutions smoothly and with high details at (more) Ultra-HD displays.
G-Sync-compliant monitors can be operated by the NVIDIA GeForce GTX 980 Ti even right up to 4K resolution, which now also the ultra-HD gaming, the specific interaction of NVIDIA graphics card and display ensures that unsightly tearing effects thing of the past. Thanks to NVIDIAs new Super Resolution feature 4K graphics are now displayed in detail on Full HD monitors and the Game Stream technology ensures that PC games can be streamed to an NVIDIA SHIELD device.
For the enormously strong performance of the Inno3D GeForce GTX 980 Ti OC also the 6,144 MB lush GDDR5 graphics memory is next to the Maxwell GPU GM200 with its revised SMX units and the 2,816 CUDA cores responsible, who works at 3505 (effective 7010) MHz and a whopping 384-bit wide memory interface is connected. The power of the GeForce GTX 980 Ti is carried out in this model with an 8-pin and one 6-pin PCI Express connector of the power supply, which can muster at least 600 watts of power after recommendation from NVIDIA should.

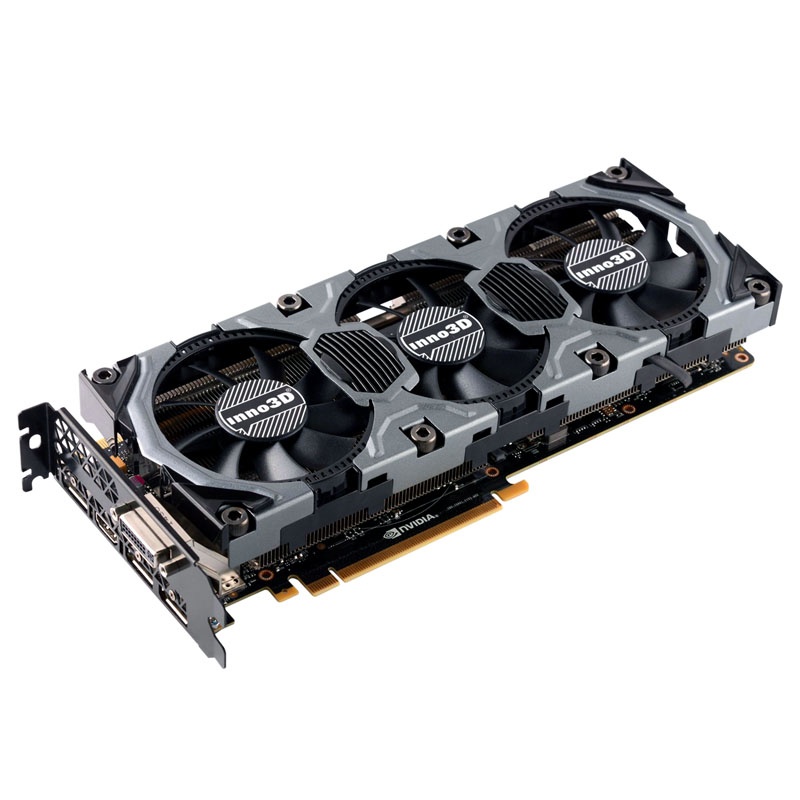

This NVIDIA GPU Boost 2.0 can access as well as possible, it is important that the electronics of the card stays as cool as possible, therefore, commits Inno3D here on the monster-chiller Hérculez 3000 incl. Many aluminum fins, several heatpipes and three 90 -mm fans. Like all Hérculez coolers can also be of disassemble 3000 to allow perfect cleaning, even the rotors can be removed. For OC-projects can be switched by a jumper from PWM for maximum operation. To stabilize the PCB the back of the card is equipped with a sophisticated backplate.
In addition to its particularly high gaming capability, the GeForce GTX 980 Ti inspired by many other modern features, such as Adaptive Vertical Sync, the image enhancement modes FXAA and TXAA, support for PCI Express 3.0 and DirectX 12, NVENC, VXGI or NVIDIA Shadowplay. Of course, not missing old friends such as the ability to GPU PhysX, 3D Vision and Surround.
With the latest NVIDIA drivers, it is still experience with GeForce GEFORCE EXPERIENCE! The ingenious tool is integrated directly into the graphics driver and enables next Potty Driver updates also perfect settings for every computer on every game! For this, the huge database is queried in NVIDIAs cloud computing center to diverse configurations, so that can be a mouse click to make the optimum settings.
In order to exploit the full potential of the card in the future, new drivers from NVIDIA or Inno3D should periodically downloaded and installed.
Technical Details:
Dimensions: 285 x 112 mm (W x D)
Height: 2 slot
GPU: NVIDIA GeForce GTX 980 Ti
Type: Maxwell GM200
Production: 28 nm
GPU clock: 1,038 MHz
Boost Clock (average): 1,127 MHz
Shader units (CUDA cores): 2,816
Memory Size: 6144 MB
Memory clock: 3,505 (7,010) MHz
Type: GDDR5
Memory interface: 384-bit
Slot: PCIe x16 (PCIe / PCIe 2.x / PCIe 3.0)
Connections:
3x Mini-DisplayPort 1.2
1x HDMI 2.0 (4K at 60 Hz)
1x DVI-I (Dual Link)
Power supply: 1x 8-pin PCIe, 1x 6-pin PCIe
Recommended power supply capacity: min. 600 Watt
Features: DirectX 12, OpenGL 4.4, 3D Vision, NVIDIA Surround, Tessellation, PhysX, CUDA, NVENC, SMX, GPU Boost 2.0, Adaptive Vertical Sync, SLI, G-Sync, VXGI, super resolution, 4K Ultra HD Support, 4K Surround , NVIDIA Shadow Play, NVIDIA Game Stream
Compatibility (Operating System): Windows 8.1, 8, 7, Vista
