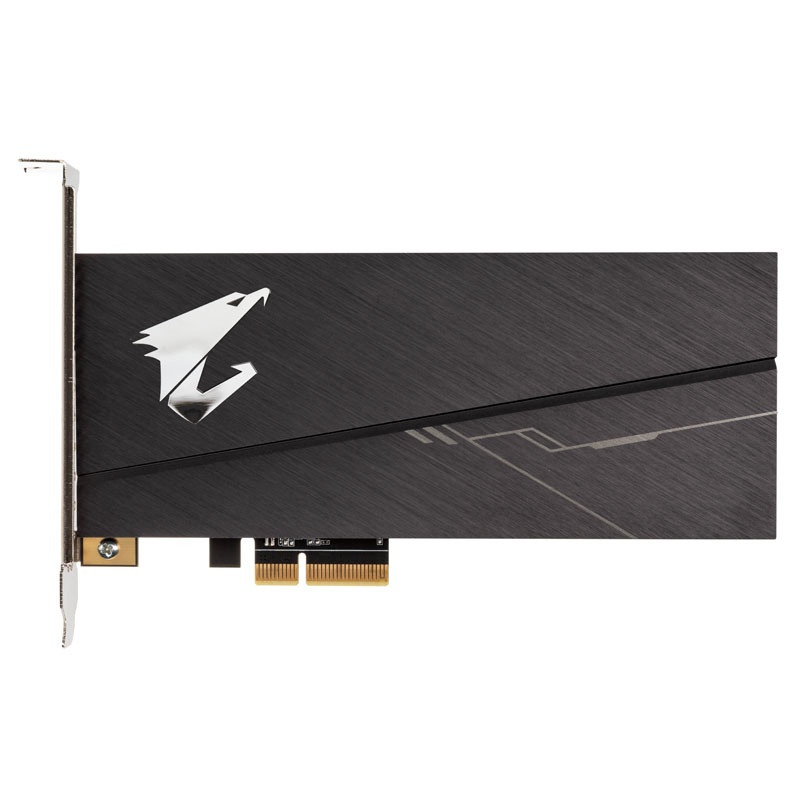

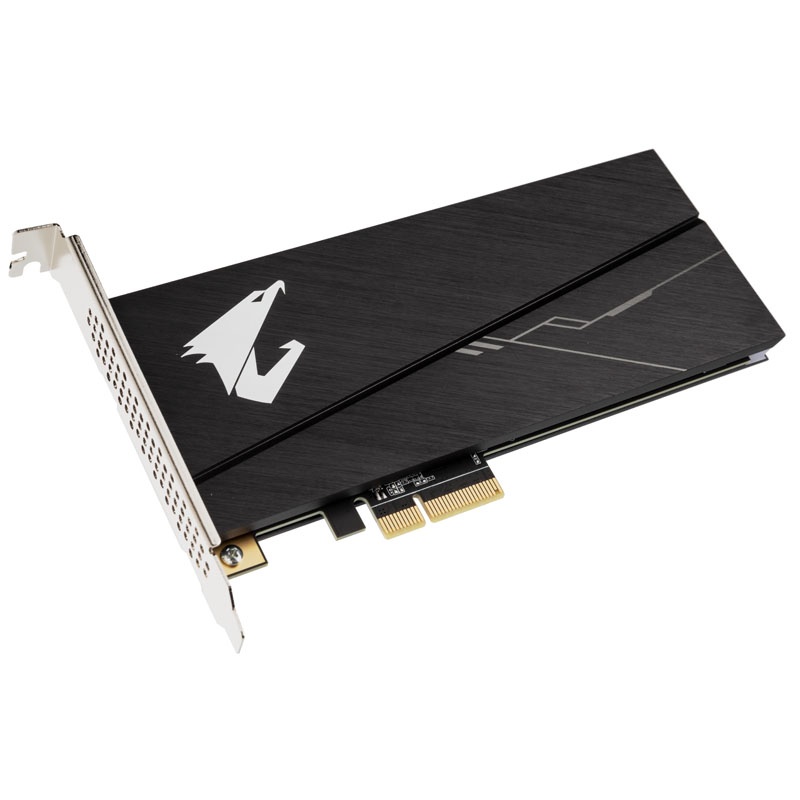

Gigabyte Aorus RGB AIC NVMe SSD, PCIe 3.0 x4 - 1 TB

The reason for this is not least the technology used, which was installed in this NVMe memory with 1 TB, including high-quality 3D NAND flash, which guarantees a TBW of a whopping 1,600 terabytes. The expansive heat sink with RGB lighting also ensures this. Overall, Gigabyte brings fast and reliable NVMe storage for those who do not have free M.2 space but do have an available PCIe 3.0 x4 slot.

The features of the Gigabyte Aorus RGB NVMe AIC SSD 1 TB at a glance:
– Modern NVMe PCIe 3.0 SSD as add-in card with NVMe 1.3
– Including heat sink with RGB lighting
– Storage capacity of 1 terabyte of 3D TLC NAND memory from Toshiba & 1 GB DDR3 cache
– Maximum read speed of 3,480 MB / s and write speed of 3,080 MB / s
– Maximum IOPS reading: 610K and writing: 530K
– MTBF: 1.8 million hours, manufacturer warranty: 5 years or 1.6 PBW (PB Written)
– NVMe PCIe 3.0 SSD with fast read and write speed

This fast drive supports four PCI Express 3.0 lanes. In conjunction with the built-in 3D NAND flash, this 1 TB variant of the NVMe SSD from Gigabyte achieves fast 3,480 MB / s when reading and 3,080 MB / s when writing, as well as IOPS values of 610,000 in 4KB read or 530,000 in 4KB -Write.
Highly efficient NAND with a long service life

The NVMe SSD memory is reliable and compact 3D NAND flash. On the one hand, this enables larger amounts of memory with higher read and write speeds with a smaller area of the memory blocks, and on the other hand increases the lifespan of the memory and improves energy efficiency. This is also ensured by the huge heat spreader including stylish RGB lighting.

The NVMe PCIe 3.0 SSD supports the latest NVMe 1.3 protocol, LDPC error correction, wear leveling and over-provisioning to increase the lifespan. Gigabyte can therefore guarantee an MTBF (Mean Time Before Failure) of at least 1.8 million hours and offer a guarantee of 5 years or 1.6 PBW.

Technical details:
– Dimensions: 175 x 13 x 71 mm (W x H x D)
– Format and interface: PCIe 3.0 x4, NVMe 1.3
– Capacity: 1 TB
– Memory: 3D-NAND TLC, Toshiba / WD, 96 layers (BiCS4)
– Controller: Phison PS5012-E12, 8 channels
– Cache: 1 GB DDR3
Power:
– Reading: max. 3,480 MB / s
– Write: max. 3,080 MB / s
– IOPS (4KB Random Read, QD32): 610,000
– IOPS (4KB Random Write, QD32): 530,000
– Power consumption (idle / operation / idle): N / A / 5.9 / 0.485 W
– Compatibility (Features): NVMe 1.3, TRIM, S.M.A.R.T., garbage collection, wear leveling and over-provisioning, 256bit AES
Average life expectancy: 1.8 million h
Guaranteed write volume (TBW): 1,600 terabytes (as long as a 5-year manufacturers guarantee)
Operating temperature: 0 degrees to 70 degrees C
