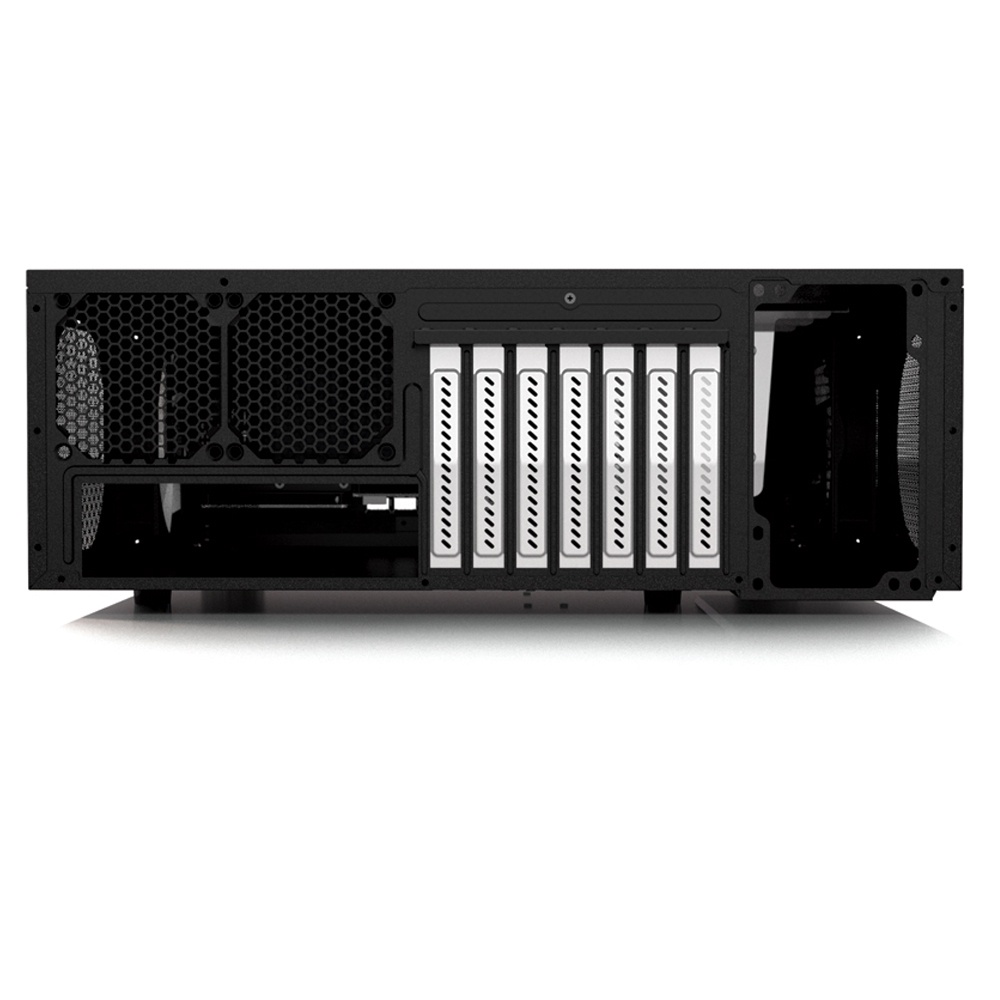

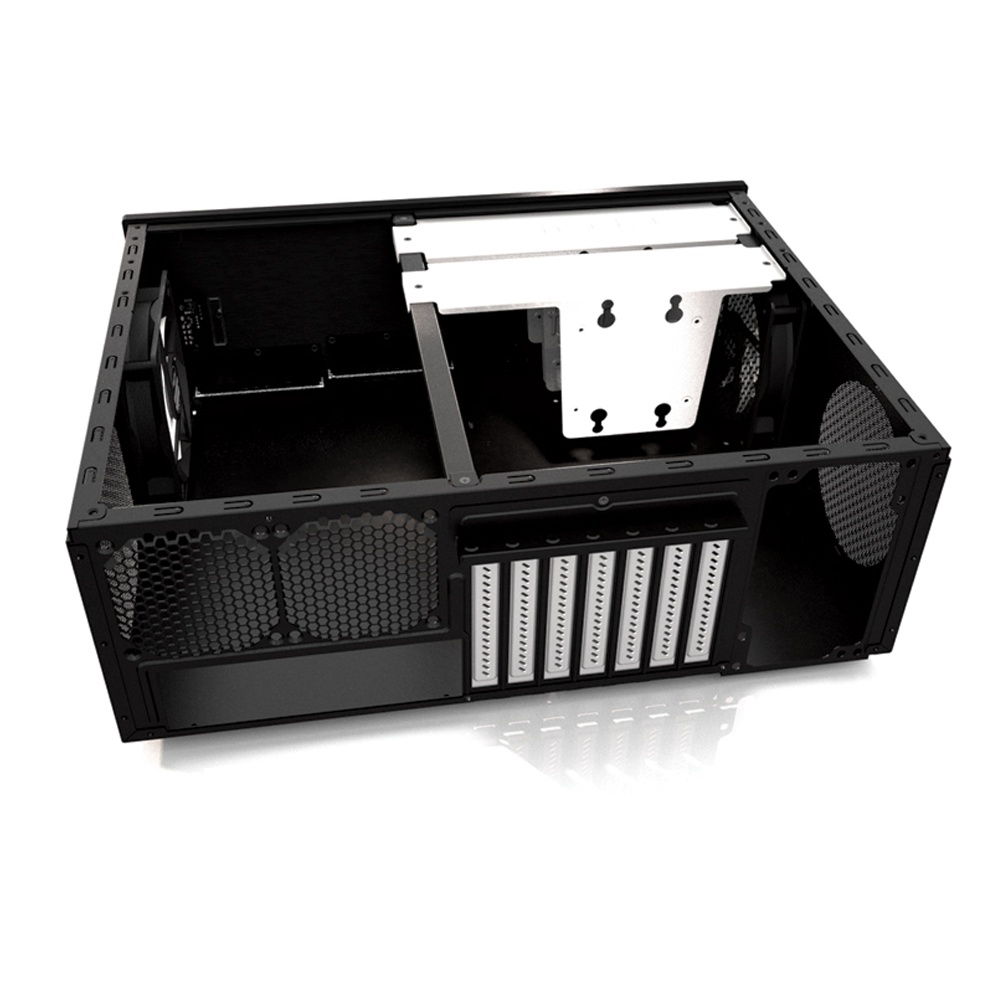

The Node 605 highlights a minimalistic, sleek Scandinavian appeal which is designed to integrate into your home theatre equipment.
Featuring a stunning exterior appearance accompanied by a modern, black interior with sound and vibration dampening materials, the Fractal Design Node 605 supports a full ATX motherboard as well as a graphics card up to 280mm in length.
The Node 605 highlights a minimalistic, sleek Scandinavian appeal which is designed to integrate into your home theatre equipment.
Featuring a stunning exterior appearance accompanied by a modern, black interior with sound and vibration dampening materials, the Fractal Design Node 605 supports a full ATX motherboard as well as a graphics card up to 280mm in length.
The Node 605 highlights a minimalistic, sleek Scandinavian appeal which is designed to integrate into your home theatre equipment.
Featuring a stunning exterior appearance accompanied by a modern, black interior with sound and vibration dampening materials, the Fractal Design Node 605 supports a full ATX motherboard as well as a graphics card up to 280mm in length.
No products found
Cleverly hidden behind the access panel on the solid 8mm thick aluminum front panel are two USB 3.0 ports, a FireWire port and a multi-format card reader for multiple formats.
Key features
Solid aluminum front panel
Supports full ATX motherboards
Noise-dampening material
4 HDD/SSD slots
Integrated card reader
Two Silent Series R2 hydraulic bearing fans included
Supports graphic cards up to 280mm in length (180mm with all hard drives in place)
USB 3.0 and FireWire front connectors
Specifications
ATX, microATX, Mini ITX, DTX motherboard compatibility
7 expansion slots
4 – supports either 2.5 or 3.5 HDD / SSD
1 slim-line ODD (only supported with mATX or smaller motherboards)
PSU compatibility: 180 mm (including any modular connectors) with both hard drive cages mounted or 190 mm (excluding cables and any modular connectors) with one hard drive cage mounted
CPU cooler compatibility: Approx 125mm with side-mounted fans – For coolers with top-mounted fans, Fractal Design recommends that you add at least 30 mm clearance for decent airflow
Case dimensions (W x H x D): 445 x 164 x 349 mm (excluding front panel – 440 x 162 x 341 mm)
Net weight: 6.0 kg
Cooling system
5 fan slots total (3 – 120mm + 2 – 80mm)
2 – 120mm Silent Series R2 fans included
Air filters for side fans and PSU
Integrated three-channel fan controller (included)
Graphic card compatibility
180 mm with both hard drive cages mounted
255 mm with one hard drive cage mounted
290 mm in the top two ATX expansion card slots with two hard drive cages mounted
280 mm in the top four ATX expansion card slots with one hard drive cage mounted, containing one 3.5 HDD and one 2.5 SSD
Front interface
2 – USB 3.0
1 – FireWire (IEEE 1394)
1 – 3.5mm audio in (microphone)
1 – 3.5mm audio out (headphone)
1 – card reader
Power button with LED
HDD LED
