The Fractal Design Define R5 is the next evolution in the Widely popular Define Series. Packed with intelligently designed enthusiast-oriented features delivering a silent case with powerful and expansive air and liquid cooling support, presented in a stunning Scandinavian inspired construction.
The Define R5 Case Reaches the highest level of silent computing through Strategically Placed dense sound-absorbing material, ModuVent ™ fan vent covers and finely tuned Dynamic Series fans.
The Fractal Design Define R5 is the next evolution in the Widely popular Define Series. Packed with intelligently designed enthusiast-oriented features delivering a silent case with powerful and expansive air and liquid cooling support, presented in a stunning Scandinavian inspired construction.The Define R5 Case Reaches the highest level of silent computing through Strategically Placed dense...
The Fractal Design Define R5 is the next evolution in the Widely popular Define Series. Packed with intelligently designed enthusiast-oriented features delivering a silent case with powerful and expansive air and liquid cooling support, presented in a stunning Scandinavian inspired construction.The Define R5 Case Reaches the highest level of silent computing through Strategically Placed dense...
No products found
The Define what R5 designed with configurability in mind, accommodating up to 8 hard drives and all modern graphics card. Should you wish to expand your system with water cooling components or more fans the layout can be Easily Configured to meet your demand
Key features
Opti Mally designed for silent computing with high density noise-reducing material Throughout The case for maximum sound absorption, while not Compromising on airflow and cooling capabilities.

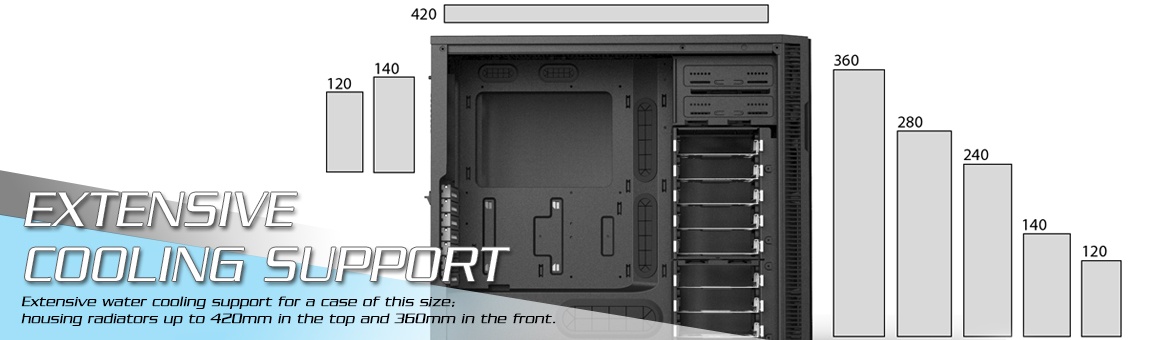

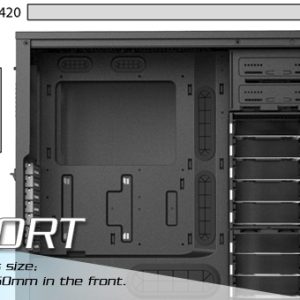

Extensive watercooling support for a case of this size; housing radiators up to 420mm in the top and 360mm in the front.
Equipped with new tool-less ModuVent ™ fan slot covers Allowing the user to install more fans If Desired fan or keep covered slots to maximize sound absorption.
Including two Fractal Design 140mm fans Dynamic GP14 developed for superlative airflow while breastfeeding Maintaining low noise levels.
Maintaining a dust-free interior with the help of dust filters did cover front and bottom air intakes did are easy to access from the front on the case.
Newly Configured front door with dual side mounting to better fit your workspace
Highlighting 2 dedicated SSD mounts cleanly Placed behind the motherboard tray did feature innovative new brackets delivering a tool-free installation and removal
The HDD cage system holds up to eight 3.5 or 2.5 drives and is more adaptable than ever, Allowing the user to modify the case layout nach personal preference with more places to relocate the cages
The ODD cage can be removed to gain Easily additional interior space; the area can be freed up to allow for Increased airflow, To provide a new place for HDD cage mounting or to make more room for watercooling components.
Sturdy metal HDD trays Provide excellent dampening features for the hard drives while providing better airflow through the cage with at updated, more open design
The new and innovative quick release system on the left side of the case Provides secure mounting of the left side panel, yet grants quick and easy access to the system.
Three-speed fan controller is integrated into the front panel Strategically and supports up to 3 fans.

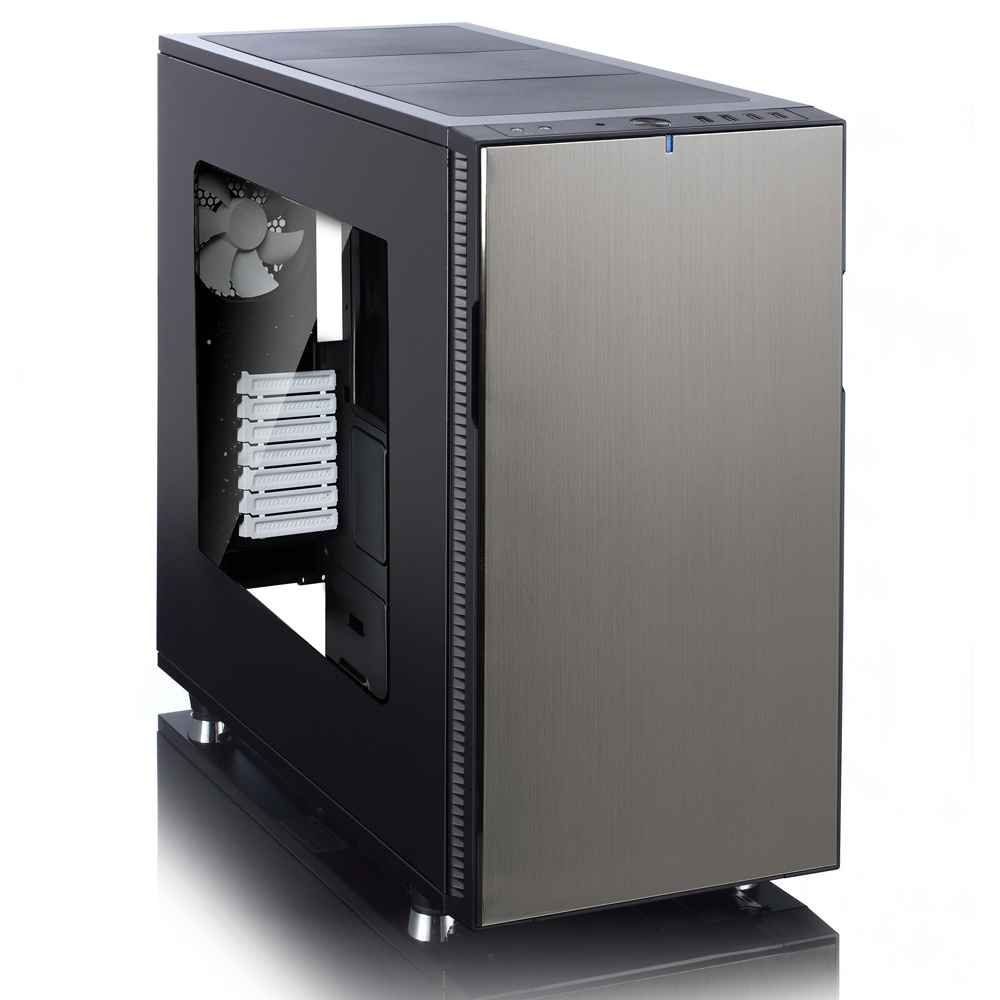

Define R5 model is available with side panel window
Specifications
ATX, Micro ATX, Mini ITX motherboard compatibility
7 expansion slots
2 – 5.25 bays (removable)
8 – 3.5 HDD positions (ie can accommodate 2.5 units); 2 – 2.5 SSD dedicated unit positions
4 – ModuVent ™ plates – three in the top and one at the side
9 – fan positions (2 Fractal Design 140mm fans included Dynamic GP14)
Filtered fan slots in the front and bottom
CPU coolers up to 180mm in height
ATX PSUs up to 190/170 mm with a bottom 120 / 140mm fan installed; When not using any bottom fan location longer PSUs up to 300mm can be used
Graphics cards up to 310 mm in length with the top HDD cage installed; with the top cage removed, graphics cards up to 440mm in length may be installed
20 – 35 mm of space for cable routing behind the motherboard plate
Velcro straps included for easy cable management
Front door can switch opening direction via dual mounting system
Left side panel features quick release system for easy access and a secure closure Provides of side panel
Right side panel features smart captive thumbscrews so no thumbscrews are lost
Colours available: Black, Titanium (black case, titanium front panel), White
Case dimensions (WxHxD): 232 x 451 x 521mm
Case dimensions – with feet / screws / protrusion: 232 x 462 x 531mm
Net weight: 11.2 kg
Package dimensions (WxHxD): 327 x 615 x 540mm
Package weight: 12.8 kg
Cooling system
Front: 2 – 120/140 mm fans (included is 1 Fractal Design Dynamic GP14 fan, 1000 RPM speed)
Rear: 1 – 120/140 mm fan (included is 1 Fractal Design Dynamic GP14 fan, 1000 RPM speed)
Top: 3 – 120/140 mm fan (not included)
Bottom: 2 – 120/140 mm fan (not included)
Side: 1 – 120/140 mm fan (not included)
Fan controller: 3 step fan controller for up to 3 fans
Dust filters: bottom and front intakes
Water cooling compatibility
Front – 360, 280, 240, 140 and 120 mm radiators of all thicknesses (requires removal of drive bays)
Top – 420, 360, 280, 240, 140 and 120 mm radiators. (A limitation of thickness 55mm FOR BOTH radiator + fan Applies on 420, 280 and 140 mm radiators) (420 and 360 mm radiators require removal of the ODD bay)
Bottom – 120 or 240 mm radiator (use of radiators in the bottom position limits the PSU length to 165 mm)
Rear – 120 or 140 mm radiator
front interface
2 USB 3.0 and 2 USB 2.0
Audio in / out
Power button with LED (blue)
HDD activity LED (blue)
reset button
