With EVGA DisplayPort MST hub connectivity for modern monitors can be expanded quickly and easily. If a graphics card or a motherboard on which a processor operates with integrated graphics unit, simply provide a display port as output is available, one has but three displays to be powered by such a connection with images, then the hub is the ideal choice!
With EVGA DisplayPort MST hub connectivity for modern monitors can be expanded quickly and easily. If a graphics card or a motherboard on which a processor operates with integrated graphics unit, simply provide a display port as output is available, one has but three displays to be powered by such a connection with images, then the hub is the ideal choice!
With EVGA DisplayPort MST hub connectivity for modern monitors can be expanded quickly and easily. If a graphics card or a motherboard on which a processor operates with integrated graphics unit, simply provide a display port as output is available, one has but three displays to be powered by such a connection with images, then the hub is the ideal choice!
No products found

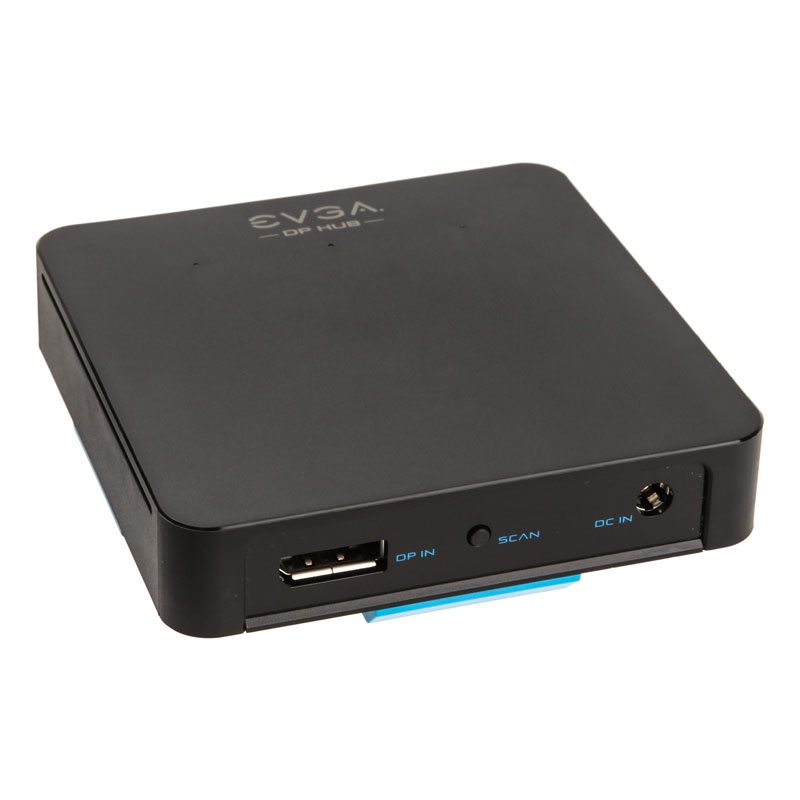

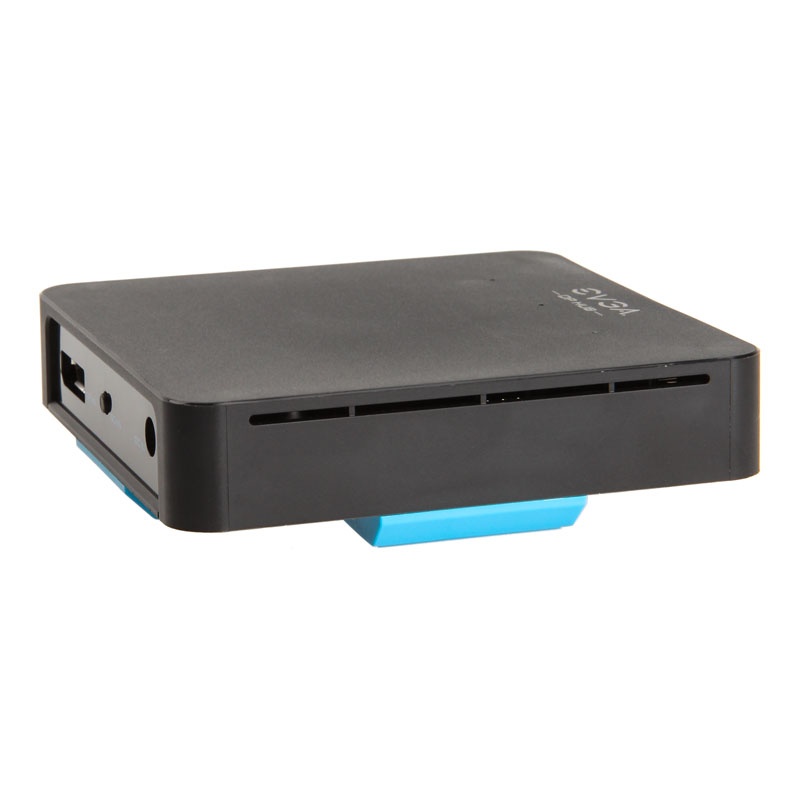

With it, it will save you several adapter, by simply connecting the DP-graphic output from graphics card or motherboard with the small black box and to turn this up to three DisplayPort monitors that are connected to supply. This hub used for the Multi-Stream Transport Technology (MST) and is to independently control all three displays connected in the position. Even the included AC adapter into an electrical outlet and youre set!
It is this external power supply provides the EVGA display port hub the great advantage of being absolutely plugnplay-capable even without need to perform a system restart after reconnecting. Only the Scan button to be pressed on the hub must then monitor the connection is re-read.
The connected display can thereby resolutions between 800 x 600 and up to 1,920 x 1,080 pixels have (Full HD) and are easily recognized by Microsoft Windows as if they were connected separately to the computer or laptop. Accordingly, they also are easy to configure and order a graphics card driver menu or operating system.
Note: This hub is compatible with all NVIDIA (GeForce GTX 600 from) and AMD compatible (from Radeon HD 6000) graphics cards supporting DisplayPort 1.2 MST. In AMD graphics cards from the Radeon segment FirePRO or the maximum number of screens to six per graphics card is limited, no matter how many multi-stream transport hubs are connected. Graphics cards from NVIDIA to support a maximum of four screens.
Technical Details:
Dimensions: 98 x 26.8 x 98 mm (W x H x D)
Color: Black
connections:
1x DisplayPort 1.2a input
3x DisplayPort 1.2a output
1x DC In
Supported resolutions:
2,400 x 600 (3x 800 x 600) pixels
3,072 x 768 (3x 1024 x 768) pixels
3,840 x 720 (3x 1,280 x 720) pixels
3,840 x 768 (3x 1,280 x 768) pixels
3,840 x 800 (3x 1,280 x 800) pixels
3,840 x 960 (3x 1,280 x 960) pixels
3840 x 1024 (3x 1280 x 1024) pixel
4,080 x 768 (3x 1360 x 768) pixels
4,098 x 768 (3x 1,366 x 768) pixels
4,320 x 900 (3x 1,440 x 900) pixels
5040 x 1050 (3x 1680 x 1050) pixel
5760 x 1080 (3x 1920 x 1080) pixel
Scope of delivery:
Display port hub (Multi-Stream Transport)
1x DisplayPort cable
power Supply
Quick Start Guide
