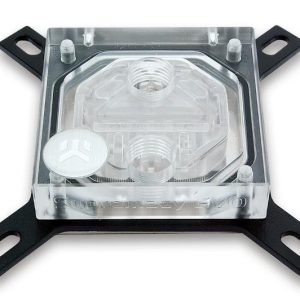

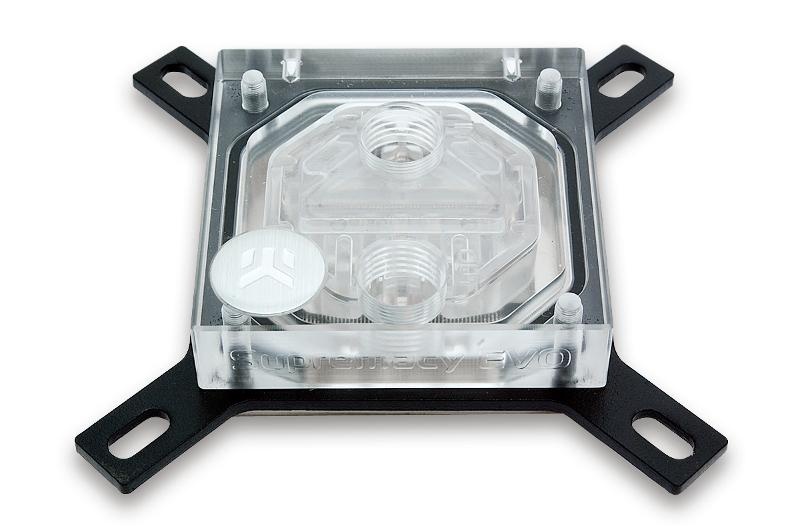

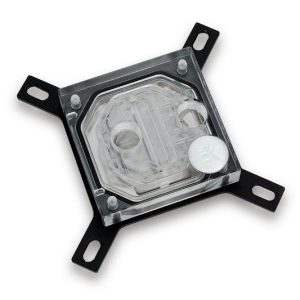

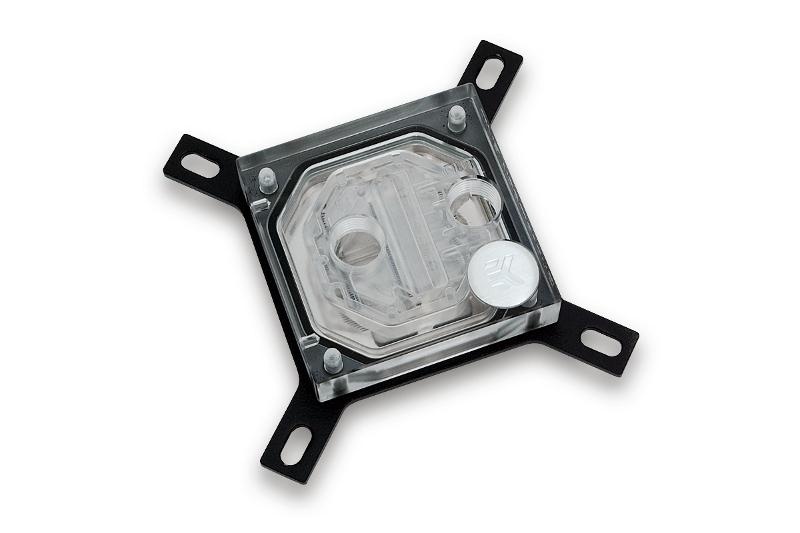

EK Water Blocks EK-Supremacy EVO - Nickel

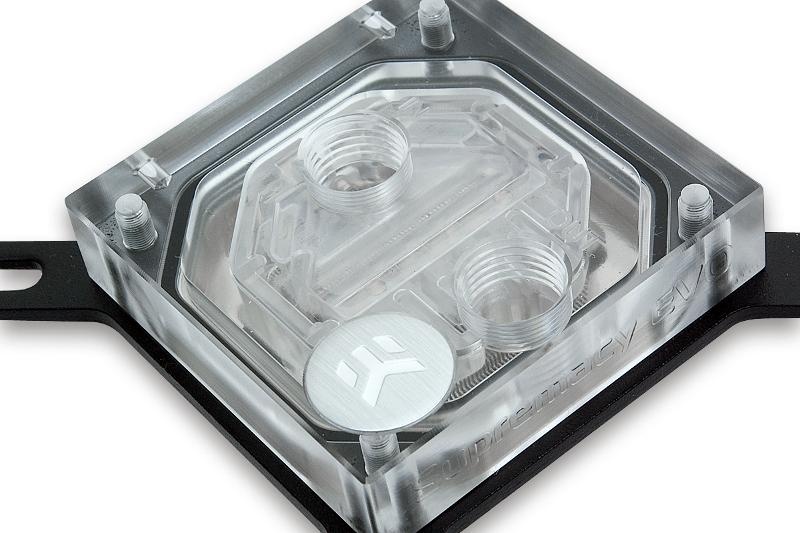

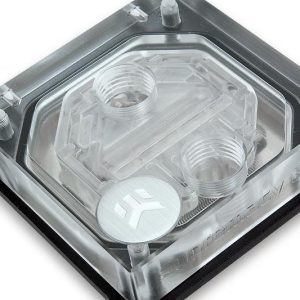

The lid is made in this version of transparent Plexiglas, which provides superior optical performance and at the same time opens up many modding options – including two preparations for 3mm LEDs. Thus, by looking at the Inne space the top of the nickel-plated copper base visible, where 49 small pins provide an increased surface area to better dissipate heat to the water flowing therethrough between them. Due to the optimized design more than 2.2 degrees can be achieved at lower temperatures the 2011 sockets as compared to the previous coolers thanks to higher flow rates.

Install using stable Backplates with all current sockets are supported by Intel and AMD. Thanks PreciseMount the installation is very convenient. All necessary for attachment to the motherboard screws and backplates are included. Moreover, the known of Gelid GC-Extreme thermal compound as is.

This product is supplied without the necessary connections. These are therefore sold separately.

Technical Details:

     Material: nickel plated electrolytic copper (ground), acrylic glass (cover)
     Connectors: 2x 1/4 thread
     LED Preparation: 2x 3 mm
     Socket compatibility:
     Intel: 775, 1150, 1155, 1156, 1366, 2011
     AMD: 754, 939, 940, AM2, AM2 +, AM3, AM3 +, FM2, FM2 +
     Thermal paste: Gelid GC-Extreme

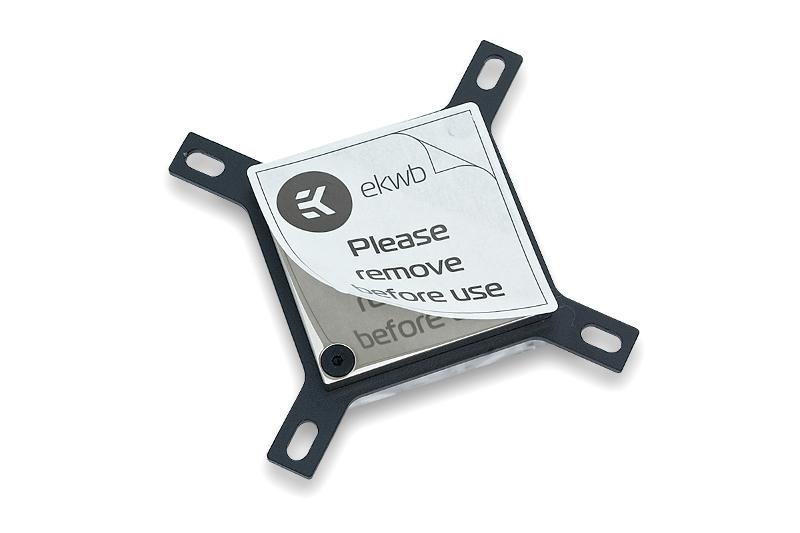

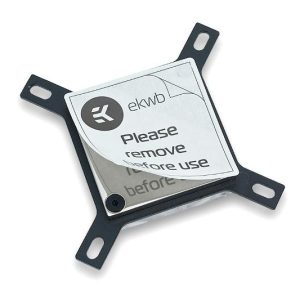

Attention: Please note that some coolers are supplied with a protective film on the bottom. These must be removed before installation and start-up in any case. We assume no liability for damages resulting from corrupted or incorrect installation and improper use!
