EK Water Blocks EK-MLC Phoenix GPU Modules FC1080 GTX Ti - Nickel

Phoenix is a Modular Liquid Cooling line of products by EKWB and the next generation of improved All-In-One water cooling solutions. Designed around Quick Disconnect Couplings it brings a modular approach to connecting and expanding the loop, giving you the freedom to decide which components you want to cool down. CPU cooling module and GPU cooling module can be connected to the EK-MLC Radiator Core Module in any order, separately or together.

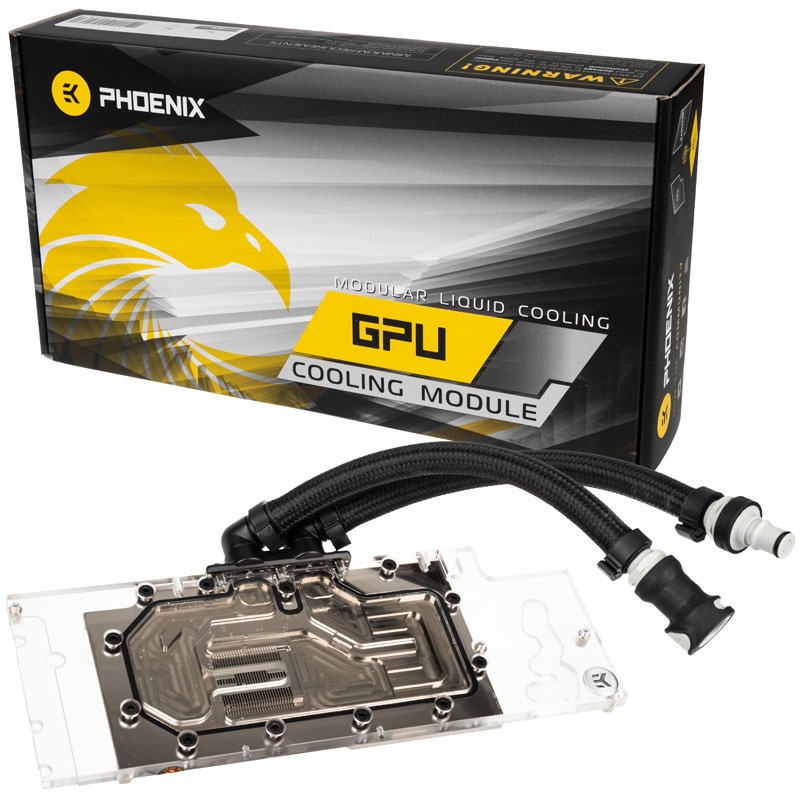

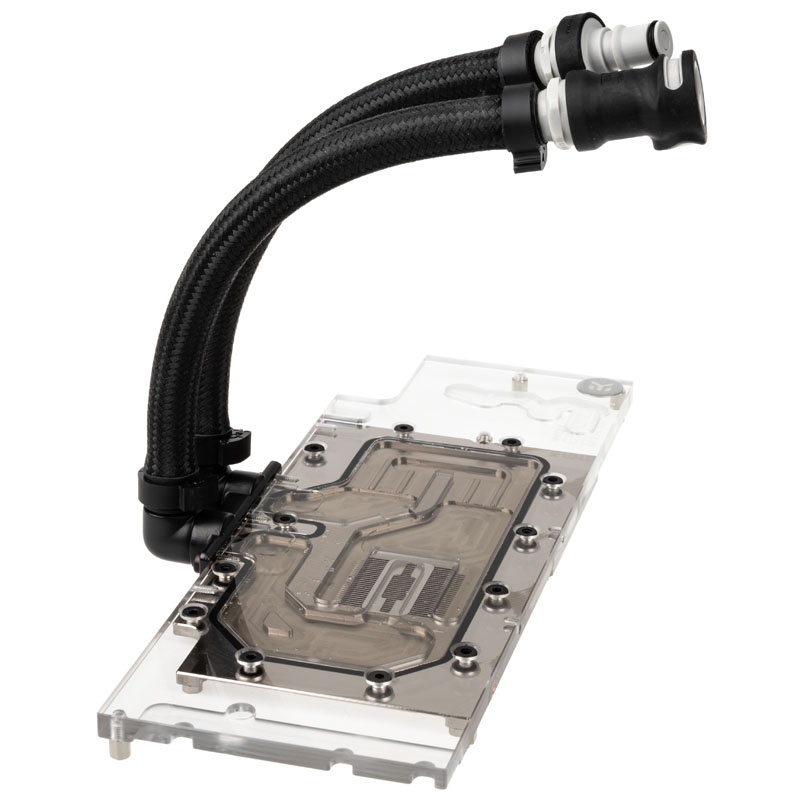

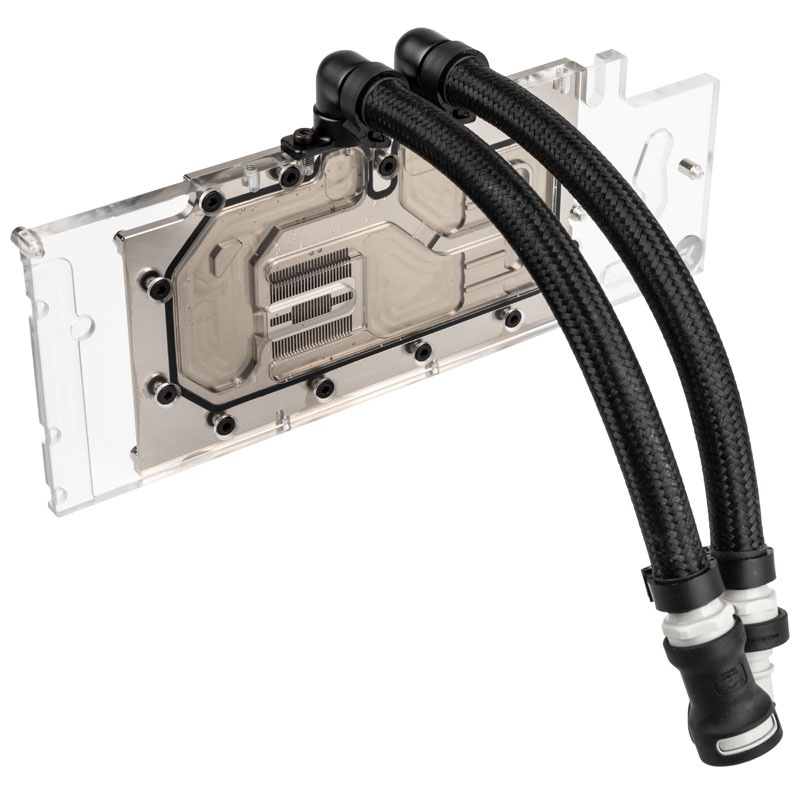

The EK-MLC GPU Module FC1080 GTX Ti is a pre-filled and pre-assembled Full-Cover GPU water block module. It is precisely CNC machined to fit NVIDIA GeForce GTX 1080 Ti graphics card, based on Pascal architecture (GP102). It is made from high-purity copper which enables high thermal performances.

Quick Disconnect Coupling or QDC is a special connector that allows for a quick and tool-less expansion of the system without the need for draining of the unit. This allows you to add a pre-filled QDC-enabled GPU or CPU cooling module to an EK-MLC Radiator Core Module. Quick Disconnect is a medical grade product with Zero Drop design, and the expansion of the modular liquid cooling system can be very quick, easy and safe.

This water block directly cools the GPU, RAM, as well as VRM (voltage regulation module) as water, flows directly over these critical areas thus allowing the graphics card and its VRM to remain stable under high overclocks. It features a central inlet split-flow cooling engine design for best possible cooling. Such a design enables great hydraulic performance to work flawlessly with all EK-MLC radiator core modules. The water block is also equipped with a Rotary Terminal which gives the user unlimited flexibility for loop routing.

The base of the block is made of nickel-plated electrolytic copper while the top is made of quality acrylic material. The top also features two pre-drilled slots for 3mm LED diodes. The sealing is ensured by quality rubber washers. Screw-in brass standoffs are pre-installed and allow for safe, painless installation procedure.

EKWB recommends the purchase of aesthetic retention backplate which improves the looks of your graphics cards and also provides some passive cooling to the circuit board VRM section.

Enclosed:

– EK-MLC GPU Module FC1080 GTX Ti
– Mounting mechanism with screw-in brass standoffs
– Necessary mounting screws, nuts, and washers
– Thermal pads
– Thermal grease EK-TIM Ectotherm (1g)

Technical specifications:

– Top material: CNC machined acrylic glass
– Cold plate material: CNC machined nickel-plated electrolytic copper
– Tube length: 165mm
– Fitting type: 10mm Barb fitting
– QDC type: 10mm Barb fitting
– Coolant type: EK-CryoFuel Clear
