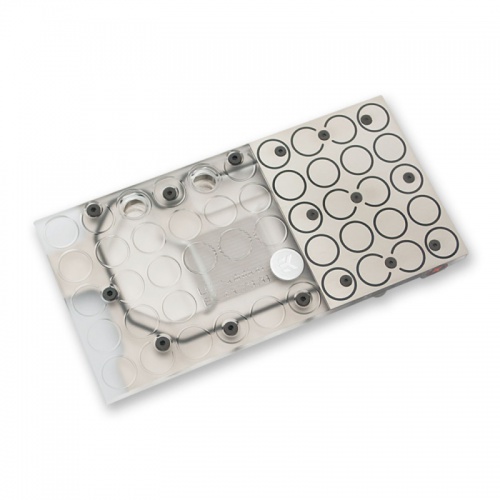

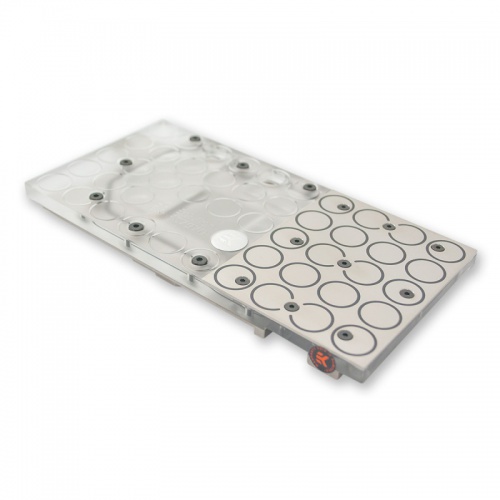

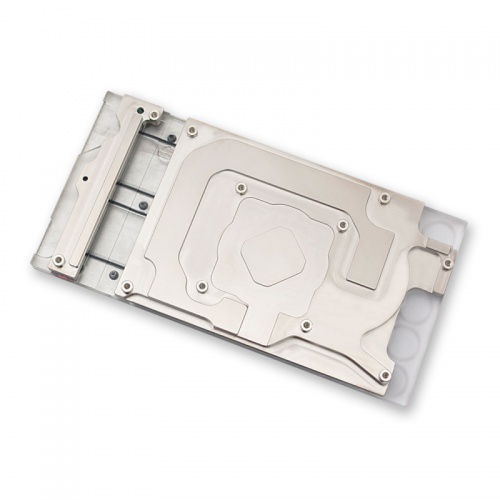

EK Water Blocks EK-FC7970 - Nickel CSQ

This water block directly cools the GPU, RAM as well as VRM (voltage regulation module) as water flows directly over these critical areas thus allowing the graphics card and its VRM to remain stable under high overclocks. EK-FC7970 water block also features a very high flow design therefore it can be easily used in liquid cooling systems using weaker water pumps.

Base is made of nickel plated electrolytic copper while the top is made of quality POM Acetal material. The sealing is performed by quality rubber washers. Screw-in brass standoffs are pre-installed and allow for safe, painless installation procedure. Block is mounted with enclosed M3x4 DIN7985 screws.

EKWB recommends the purchase of aesthetic retention backplate (EK-FC7970 Backplate – Black CSQ) which improves the looks of your graphics cards and also provide some passive cooling to the VRM section.

EKWB also offers a single-slot I/O bracket which frees adjacent PCI/PCIe expansion slot. The bracket is available as an optional add-on and can be purchased through EKWB webshop.

G1/4 threaded fittings can be used on bottom side of the water block (on cover) only.

Up to four EK-FC7970 series water block can be interconnected with EK-FC Bridge & Link system. The correct connection link for this water block is EK-FC Link and is already included with the water block.

Enclosed:
– EK-FC7970 CSQ series water block
– EK-FC Link
– mounting mechanism with screw-in brass standoffs
– thermal pads

Please note: Thermal paste is not included and needs to be purchased separately. EKWB recommends Gelid GC-Extreme for best performance.

Made in Slovenia – Europe!
