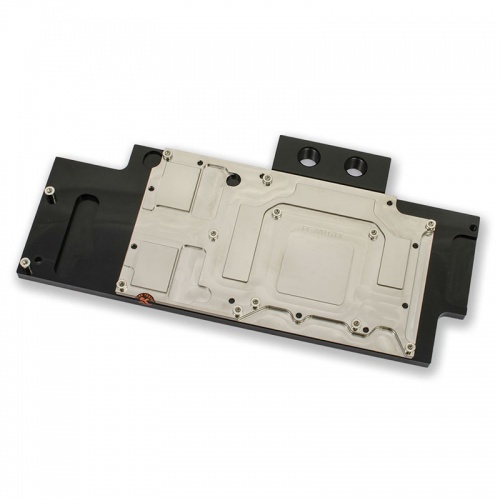

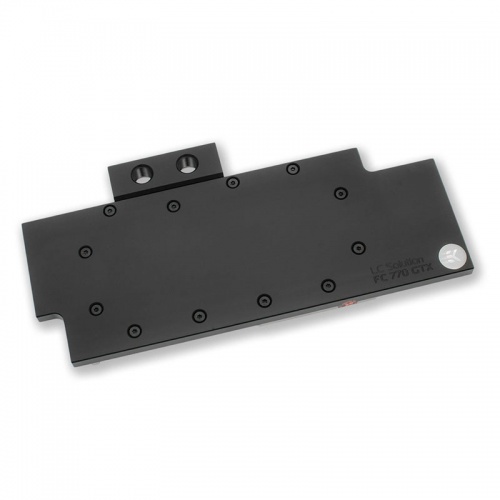

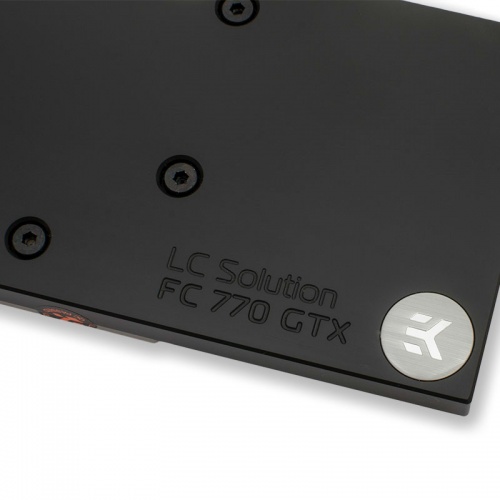

EK Water Blocks EK-FC770 GTX - Acetal + Nickel

This water block directly cools the GPU, RAM as well as VRM (voltage regulation module) as water flows directly over these critical areas thus allowing the graphics card and its VRM to remain stable under high overclocks. EK-FC770 GTX water block also features a very high flow design therefore it can be easily used in liquid cooling systems using weaker water pumps. The cooling engine now uses refined, more narrow microchannel structure to even further improve the heat transfer.

Base is made of nickel plated electrolytic copper while the top is made of quality POM Acetal material. The sealing is ensured by quality rubber washers. Screw-in brass standoffs are pre-installed and allow for safe, painless installation procedure. Block is mounted with enclosed M3x4 DIN7985 screws.

EKWB recommends the purchase of aesthetic retention backplate (EK-FC Titan SE Backplate – Black) which improves the looks of your graphics cards.

G1/4 threaded fittings can be used on both sides of the FC terminal. Flow orientation doesnt matter and is thus not prescribed.

Up to four EK-FC770 GTX water blocks can be used on a single ATX form factor motherboard by using EK-FC Terminal (DUAL, TRIPLE or QUAD type) system or other means of interconnectivity. Please note that EK-FC Bridge & Link system is not compatible with this water block.

Enclosed:
– EK-FC770 GTX series water block
– mounting mechanism with screw-in brass standoffs
– thermal pads
– thermal grease EK-TIM Ectotherm (1g)

Made in Slovenia – Europe!

PLEASE NOTE:
– Due to immense variety of fittings/barbs available on market and no prescribed standards, we guarantee compatibility only for connectors bought from our web site.
– Torx T6 screwdriver needed for dissasembly of the factory heatsink/fan solution is also not included.
– Water block ports aligns with the EK-FC Titan SE as well as EK-FC Titan
