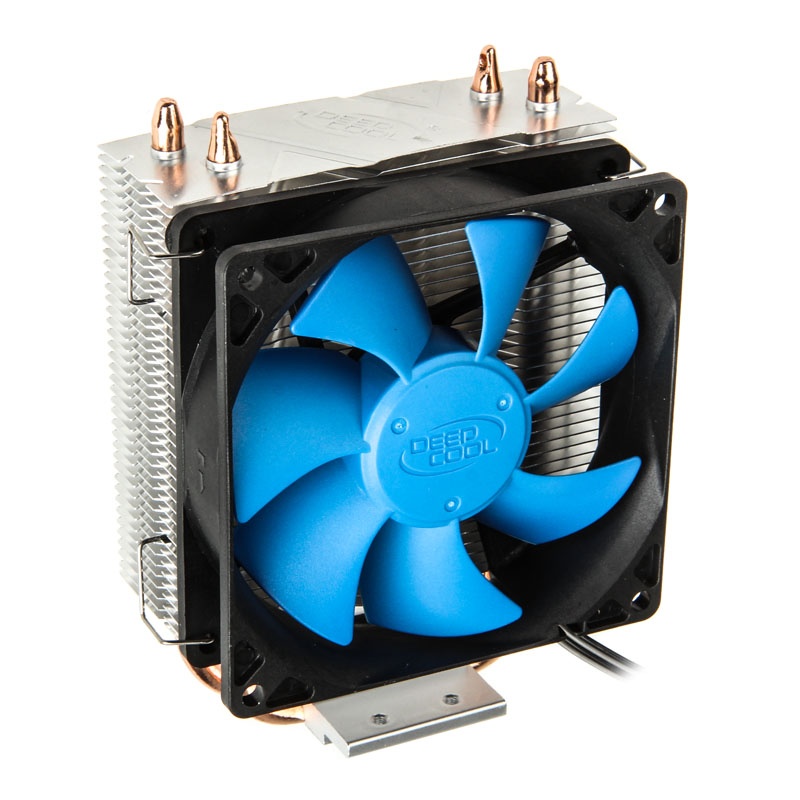

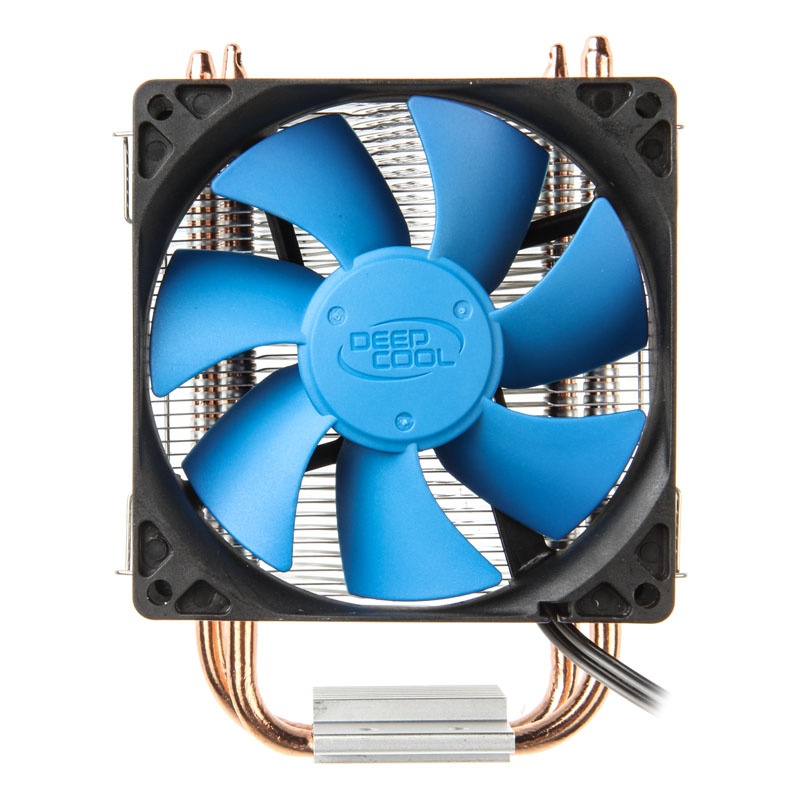

Deepcool GAMMAXX 200 CPU Cooler - 92mm

The Deepcool GAMMAXX 200 , the manufacturer is presenting a mid-range model , which offers compact dimensions, high cooling performance by up to two 92- mm fans (one included) embedded directly into the bottom plate heat pipes for optimal heat transfer. The Deepcool GAMMAXX 200 brings 339 g on the scales and with its height of 14.3 cm , a potent solution for smaller housing and processors up to a TDP of 100 watts. With a width of 10.3 cm at 7.1 cm depth , can cooler together with the compact and memory modules are built with expansive large heatspreaders and these are even cooled by GAMMAXX 200 .

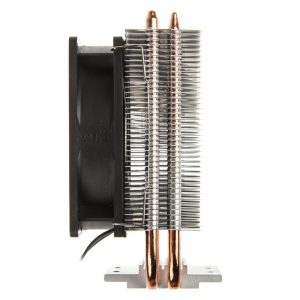

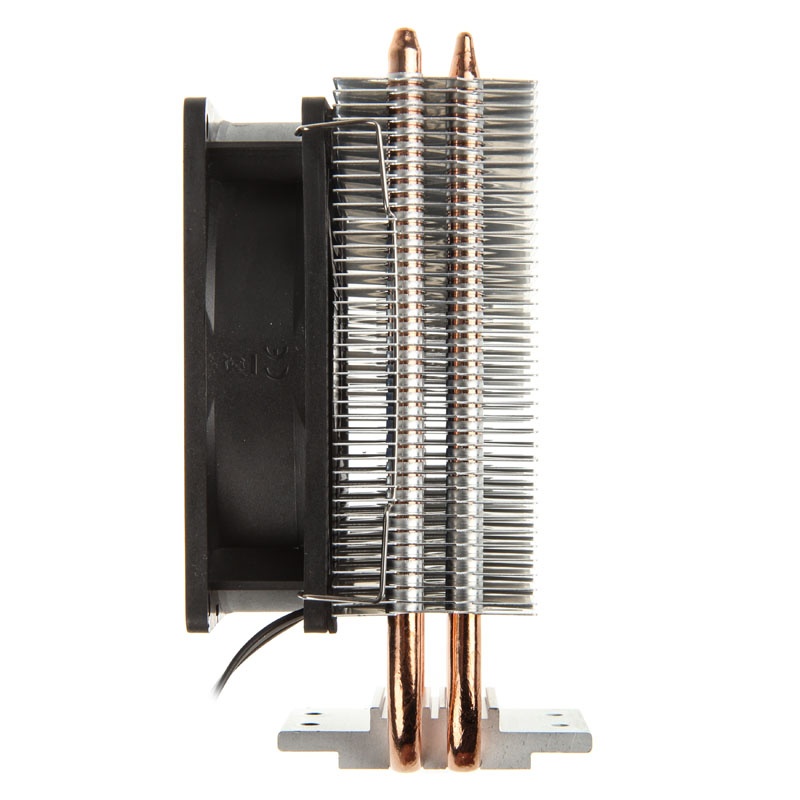

The cooler has a classic tower construction, which has already proven itself numerous. Here, two towering perpendicular heat pipes for heat transfer from the CPU to provide a rectangular heatsink from layered aluminum fins . At this heatsink on delivery , a fan is mounted and provides for the ventilation of the louvers. In differentiation from the standard approach has the GAMMAXX 200 directly on the CPU surface mounted sintered heatpipes . This design principle has the advantage that the heat can be directly transferred and discharged . This results in a particularly high cooling performance.

This powerful approach is also supported by the ability to optionally build in a second fan to increase with the increased airflow , the cooling performance when you need it again. The supplied 92er fan covers a wide speed range and can therefore both very quiet ( 17.8 dB ( A)) work , as well as provide a high delivery volume ( 63.1 m³ / h). Thanks PWM connector of the fan can also be controlled by the motherboard .

Thanks to various mounting clips and push pins , the cooler is very flexible on a variety of current Intel and AMD sockets : LGA 775 , 1150 , 1155, 1156, AM2 , AM2 +, AM3, AM3 +, FM1 , FM2 , FM2 + .

Technical details :

    Dimensions with fan: 103 x 143.5 x 71 mm ( WxHxD)
    Material: Copper ( heat pipes ), aluminum ( bottom panel , fins)
    Heatpipes : 2x Ø 6 mm
    Weight: 339 g
    Fan: 92 mm ( 17.8 to 36.4 dB ( A) , 900-2200 U / min , max 63.1 m³ / h . )
    Color: Black (frame) , Blue (rotor)
    Connectors: 4-pin PWM
    compatibility:
    Intel 775 , 1150 , 1155, 1156
    AMD AM2 , AM2 +, AM3, AM3 +, FM1 , FM2 , FM2 +
