After Cougar celebrated in recent years impressive success with PC cases and especially in the press praised and German users very popular power supplies, penetrates the manufacturer since 2015 intensified in the field of gaming input devices in front and make it there with innovative to inspire products. Cougar provides this with numerous gaming mice and keyboards a comprehensive portfolio for PC gamers with professional standards of, take care with stylish enclosures, quiet fans and efficient power supplies but continue to the needs of hobbyists.

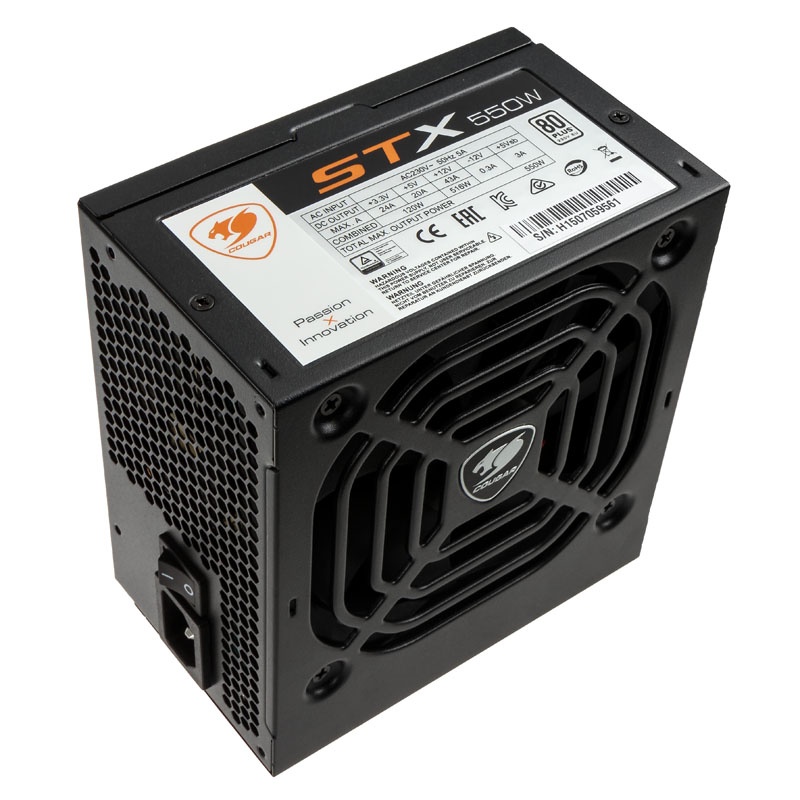

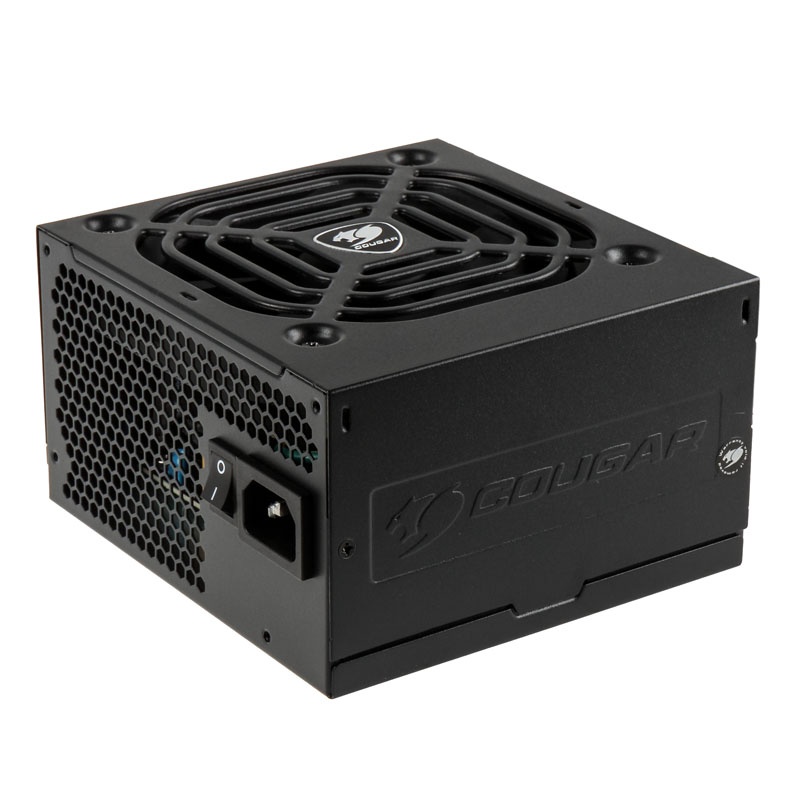

With the STX series Cougar dissolves in Europe from the A-series and provides players with cheap, reliable power supplies. So already has the 550-watt model has two 6 + 2-pin PCIe connectors to provide a high-end graphics card. The Cougar STX 550 Watt also has true 550 watts of continuous power and is therefore ideally suited to those seeking budget gaming machine. In keeping with the focus on modern hardware, the STX provide about 93 percent of the rated power on today major + 12V rail, which supplies among other processor and graphics card. The mounting depth of only 140 mm also allows use in compact enclosures.
In keeping with the Cougar-typical, black housing with integrated air intake for the temperature-controlled 120mm fan sets Cougar consistently on sheathed cables. In addition to the graphics cards strand are also the 24-pin ATX mainboard, the 4 + 4-pin CPU and the floppy connector and the cable for the three 4-pin Molex connectors and six SATA connectors sheathed. The STX is not only technically brilliant but looks good doing it from.
Conveniently may also be effective, especially if a manufacturer optimized the power supply completely on the usual European 230-volt power. Thanks to 80-plus EU-230V certificate guarantees Cougar at STX at least 85 percent efficiency at medium load, at 20 percent and 82 percent full load efficiency are exceeded. Unlike ordinary 80 Plus power supplies, whose efficiency is only at least 80 percent, all therefore fulfill STX also guarantees the efficiency requirements of PC power supplies in accordance with EU Regulation no. 617/2013. Only power supplies with at least 82 and 85 percent efficiency may still be installed in complete machines since 1 July 2014th The power consumption in standby mode is less than 0.5 watts and therefore meets the current requirements of ErP Lot. 6
Games machines often have powerful and expensive hardware – the reliability of power supply is crucial. Cougar therefore equips the power supply completely with modern protective circuits: overload protection (OPP), over voltage protection (OVP), under voltage protection (UVP), Short Circuit Protection (SCP) and over-current protection (OCP) turn off the power supply in an emergency from time to damage the power supply or hardware to avoid. The manufacturers warranty is two years.
Technical details:
Dimensions: 150 x 86 x 140 mm (W x H x D)
Fan: 120 mm (automatic control)
Color: Black (power supply, fan)
Efficiency: at least 85/82/82% at 50/20/100% load, 80 Plus 230V EU certificate
Active PFC
Form Factor: ATX12V 2.3
Power: 550 W
+ 3.3V: 24A
+ 5V: 20A
+ 3.3V & + 5V combined: 120 W
+ 12V: 516 W / 43 A
-12V: 3.6 W / 0.3 A
+ 5Vsb: 15 W / 3 A
Connections (fixed to):
1x 20 + 4-pin ATX12V / EPS12V
1x 4 + 4-pin ATX12V / EPS12V
2x 6 + 2-pin PCIe
6x SATA
3x 4-pin Molex
1x Floppy
Manufacturer Warranty: 2 years
Protection circuits: overvoltage protection (OVP), under voltage protection (UVP), Short Circuit Protection (SCP), over current protection (OCP), overload protection
