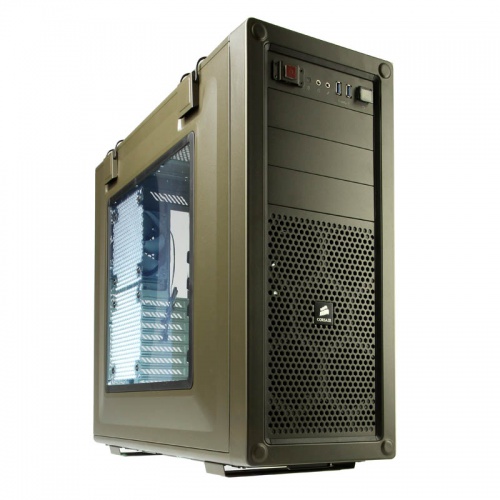

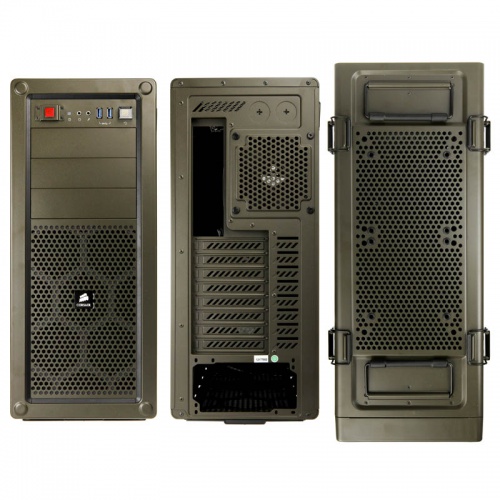

The lid of the case a mesh grid with holes for two 120-mm or 140 mm fan is integrated. The 120 seats are already fitted with rubber pads to decouple. This can also be a 240 or 280 radiator can be installed. Behind and in front of the fan grill lid Corsair has ever painted a black and retractable carrying handle attached. Since the two handles are plastic coated, they are comfortable to hold during transport. The result is a high mobility, which also fits perfectly into the military context. The edges of the case are also in all the corners slightly rounded.
The fixation of the side walls is not how it always goes out of other cases, by screws to the back, but there are on each side of two folding hinges riveted on top, which can be hooked in the roof and lowered. The left-side wall is not closed, but provided with a slightly tinted window. In addition, two slots for 120-140s or fans are integrated therein. More fans will find slot (1x pre-installed 120 mm) in front, rear and bottom. Good ventilation options is thus ensured in every case.
The lid of the case a mesh grid with holes for two 120-mm or 140 mm fan is integrated. The 120 seats are already fitted with rubber pads to decouple. This can also be a 240 or 280 radiator can be installed. Behind and in front of the fan grill lid Corsair has ever painted a black and retractable carrying handle attached. Since the two handles are plastic coated, they are comfortable to hold d...
The lid of the case a mesh grid with holes for two 120-mm or 140 mm fan is integrated. The 120 seats are already fitted with rubber pads to decouple. This can also be a 240 or 280 radiator can be installed. Behind and in front of the fan grill lid Corsair has ever painted a black and retractable carrying handle attached. Since the two handles are plastic coated, they are comfortable to hold d...
No products found
An optical element of the cream Corsair Vengeance C70 is the previously mentioned I / O panel. Here, Corsair has put a lot of trouble and made it with great attention to detail. The rectangular protruding Power button is inserted into a small metal plate which is riveted to the front panel. Audio and USB ports (2x USB 3.0 internal) are sunk into the case plan. The reset button on the other hand is hidden behind a see-through lid made of plastic and is designed in yellow and black stripes.
Especially when a tower case features in terms of hardware on an active inner life, remains the unsightly cable clutter is not enough. To alleviate this disorder and prevent them from developing in the first, located in Vengeance C70 a sophisticated cable management system, with the scandal of this past. Other advantages are many places thumbscrews that allow installation without tools, and quickly replaceable dust filter in the bottom and the front. Almost the entire interior is finished in the paint finish, here in army green.
Specifications:
Dimensions: 210 x 505 x 530 mm (W x H x D)
Weight: 8.6 kg
Material: Steel
Color: Green (Military Green)
Form factor: ATX, Micro ATX, Mini-ITX
Fan total possible:
2 x 120 mm (front)
1x 120mm (rear)
2 x 120 mm (HDD cages)
2x 120/140 mm (Side)
2x 120/140 mm (cover)
2x 120/140 mm (floor, the front slot is available only by abandoning the HDD cages)
Of these, pre-installed:
2 x 120 mm (HDD cages)
1x 120mm (rear)
Filter: power supply, ground, front
Drive bays:
3 x 5.25 inches (external)
6x 3,5 / 2,5 inch (internal, two removable cages)
Power Supply: Standard ATX (optional)
Expansion slots: 8
I / O panel:
2x USB 3.0 (internal connector)
1x each Audio In / Out
Maximum Graphics Card Length: 310 mm (with HDD cage including fan)
Maximum graphics card length: 450 mm (without HDD cage)
Mainboardtray distance to the side wall: 188 mm
