The Corsair Graphite Series case is generally remained its owners and the industry in mind. With the two new housings 380T and 780T appear two new models of the Graphite series, which Corsair repeat the effect, if does not want to offer.

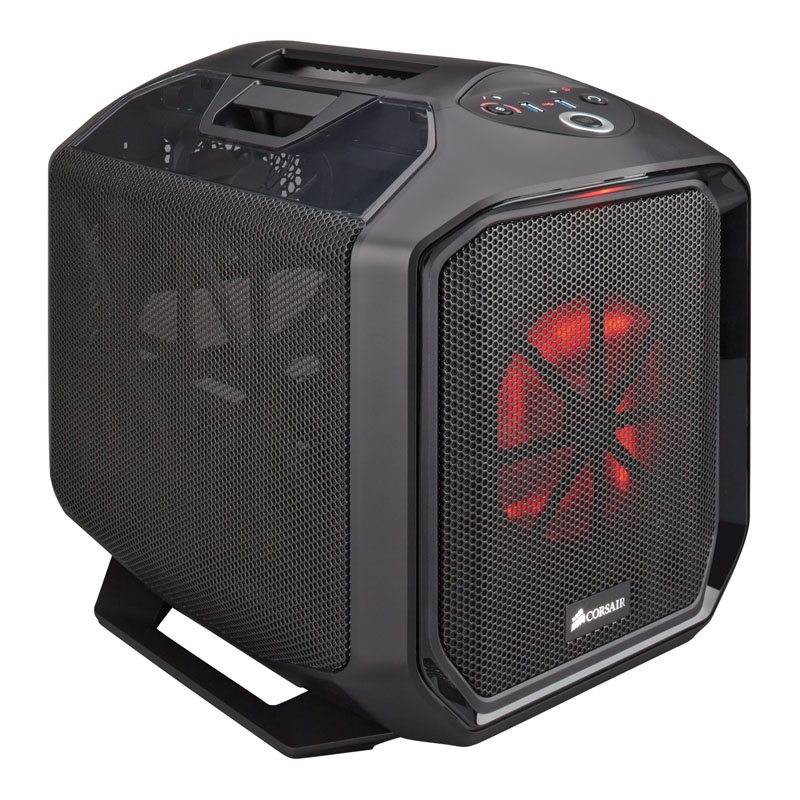

The Corsair Graphite 380T is the smaller of the two and housing for Mini-ITX boards designed. Its design, in this version entirely in black, impressed with a lot of mesh inserts and beautiful, slightly abraded edges, underscore the symmetrical, but loosened housing architecture with a certain sense of coolness.
The Corsair Graphite Series case is generally remained its owners and the industry in mind. With the two new housings 380T and 780T appear two new models of the Graphite series, which Corsair repeat the effect, if does not want to offer.The Corsair Graphite 380T is the smaller of the two and housing for Mini-ITX boards designed. Its design, in this version entirely in black, impressed with a ...
The Corsair Graphite Series case is generally remained its owners and the industry in mind. With the two new housings 380T and 780T appear two new models of the Graphite series, which Corsair repeat the effect, if does not want to offer.The Corsair Graphite 380T is the smaller of the two and housing for Mini-ITX boards designed. Its design, in this version entirely in black, impressed with a ...
No products found

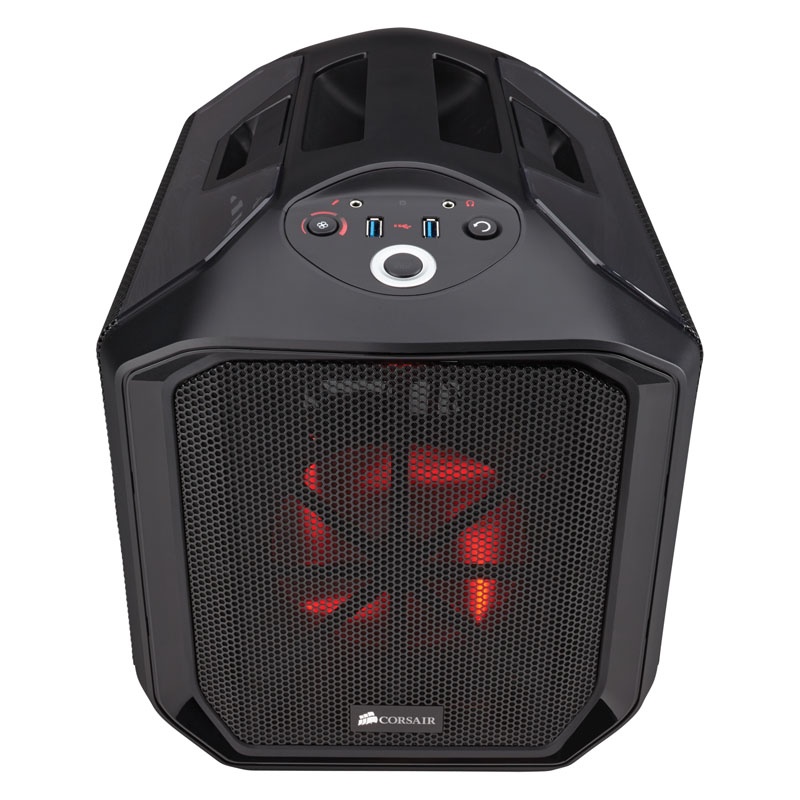

Behind its mesh front hides a red luminous 140-mm fan, which delivers a continuous aesthetic overall picture together with the illuminated in the same color I / O panel. Design and function go hand in hand when 380T. So both sides are, for example, to open simple handles, the two drive slots on the back of the case can be easily pulled out and tool-change and the center of the lid is decorated with a convenient carrying handle on what the housing optimally together with its small size for LAN parties makes.
The red illuminated I / O panel located on the front cover and offers two USB 3.0 ports, the power switch and the audio jacks and a fan controller that allows you to adjust the speed of the fan.
The Graphite 380T can then also install a total of five fans. Two 140 mm fans are preinstalled. The luminous fan in the front sucks the air while another 140s air blows back through the back. In the front you can instead attach an 200 mm fan or two 120 mm fans. In the side panel, two 120 mm fans can be installed.
If you prefer instead draws on air cooling, the possibility of a watercooling system into consideration, it also has plenty of options. So can be held in front of the fan and a radiator installed in the size 140 or 120 mm. In the back also can install a 120-single radiator. In the soil itself can also install a 240-mm dual-radiator.
Inside the Graphite 380T allows two drives in 3.5-inch or 2.5-inch signature. This can be accomplished this without tools. The drive slots are also partners the possibility of hot swapping.
In addition, can be in small 380T also two expansion cards installed. If you use this for a video card that has 290 mm of space for its length. Who wants to install a CPU cooler, it has a height of 150 mm. Power supplies may be 180 mm long.
Corsair has designed its package of the 380T also with an accessory and screw set and a Quick Start Guide from to get started immediately. The next LAN party should nothing stand in the way.
Technical Details:
Dimensions: 292 x 356 x 393 mm (W x H x D)
Material: steel (Body), plastic (front cover)
Weight: 5.55 kg
Color: Black
Lighting: Red (can be deactivated)
Form Factor: Mini-ITX
Fan total possible:
1x 200/140 mm or 2x 120 mm (front)
1x 120 mm (rear)
2x 120 mm (right side panel)
Thereof pre-installed:
1x 140 mm (front, red LED)
1x 140 mm (rear)
Radiator Mountings (partial waiver of HDD and / or fan slots):
1x 140/120 mm (front)
1x max. 120 mm (rear)
1x max. 240 mm (bottom)
Drive bays:
2x 3.5 inch (internal; tools)
2x 2.5 inch (internal, without tools)
Power supply: 1x Standard ATX (optional)
Expansion Slots: 2
I / O panel:
2x USB 3.0 (internal connection)
1x per Audio In / Out
1x fan control
Maximum video card length: 290 mm
Maximum CPU cooler height: 150 mm
Maximum PSU length: 180 mm
