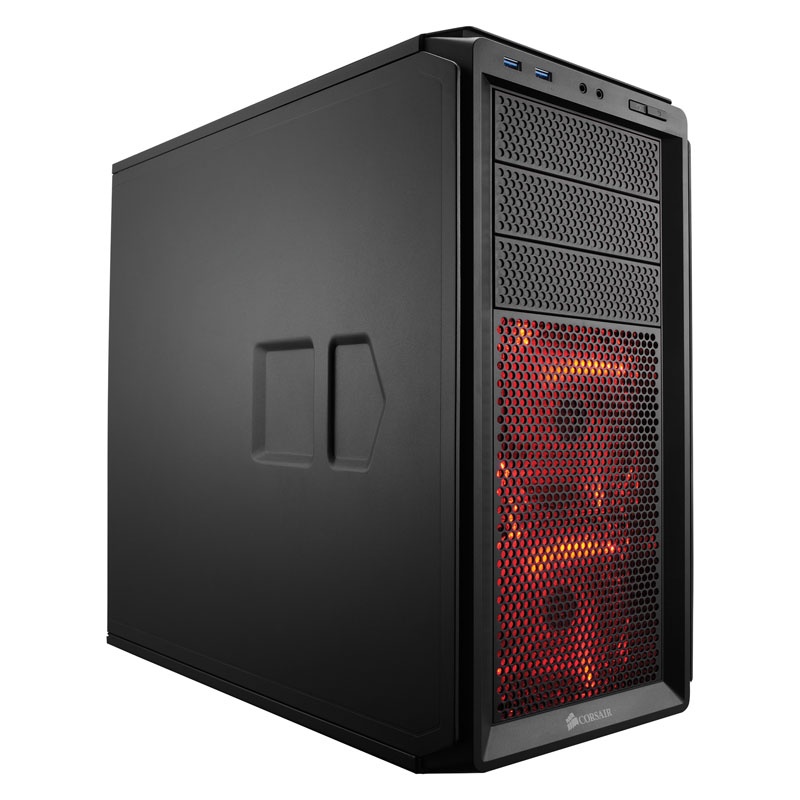

The times in which the name Corsair only allowed to grace the noblest and most powerful RAM are long gone. Meanwhile, the logo emblazoned on long as high quality power supplies, SSDs and cases. The Graphite 230T is another high-end mid-tower in the usual Corsair quality appears. The membership of the Graphite Series can expect much here, but already showed the other housing a series of high quality and functionality carried out in a very elegant design.

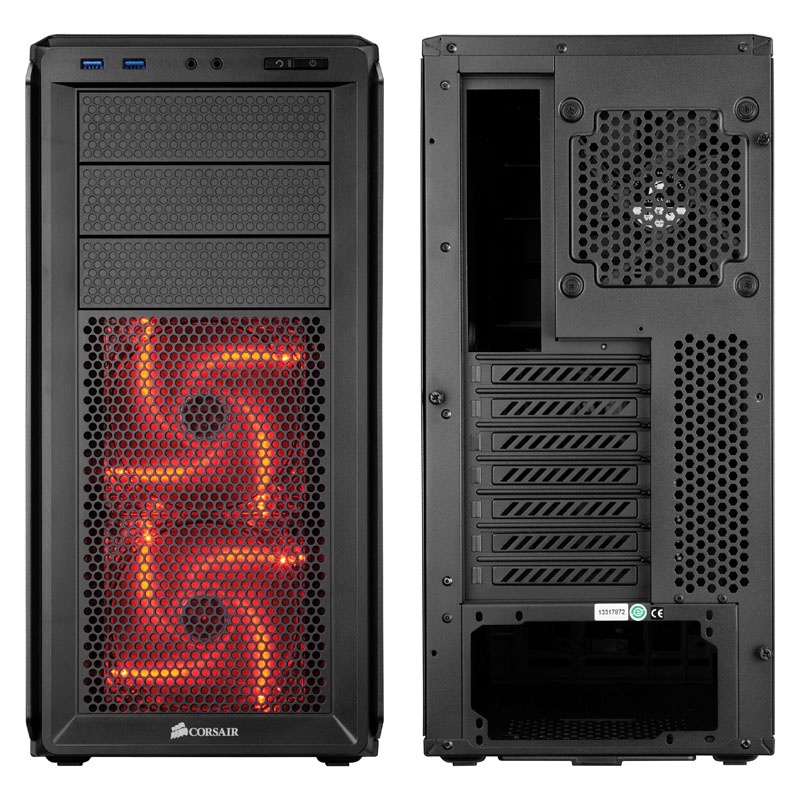

The 230T will appear in a matte black and is a geometric structure subordinated to the has the use of many edges, which are, however, perfectly matched to each other. The largely decorated with mesh front panel contains besides the three covers for the 5.25-inch slots and the I / O panel. This is located at the top and provides two USB 3.0 ports and audio input and output, and of course a power and reset switch on. Under the drive panel the two red LED fans shine through and create a visually appealing effect.
The times in which the name Corsair only allowed to grace the noblest and most powerful RAM are long gone. Meanwhile, the logo emblazoned on long as high quality power supplies, SSDs and cases. The Graphite 230T is another high-end mid-tower in the usual Corsair quality appears. The membership of the Graphite Series can expect much here, but already showed the other housing a series of high qualit...
The times in which the name Corsair only allowed to grace the noblest and most powerful RAM are long gone. Meanwhile, the logo emblazoned on long as high quality power supplies, SSDs and cases. The Graphite 230T is another high-end mid-tower in the usual Corsair quality appears. The membership of the Graphite Series can expect much here, but already showed the other housing a series of high qualit...
No products found
The Midi-Tower offers but in addition to a stylish design and an extremely high level of functionality. To fit in the Midi-Tower Motherboard to enter into a form factor ATX. Of course, even Micro-ATX and Mini-ITX boards can be installed in the 230T. Inside the Midi-Towers is enough space for three 5.25-inch drives and four 3.5-inch and four 2.5-inch also drives. The cage for the 3.5-inch drives is on the front bottom of the case, while the smaller cage for the 2.5-inch drives is exactly about. All drives can install it without tools.
If you install the graphics cards or expansion cards can do that over the seven expansion slots of the housing. For this purpose, a screwdriver does not even have to be brought out, because over the thumbscrews can also integrate perfectly expansion cards without tools. A graphics card may thereby be up to 360 mm long. The power supply, which is placed on the ground below, may even be 200 mm long. A CPU cooler on the other hand can be up to 165 mm high, which should be sufficient for most tower coolers.
Also as far as the topic of cooling, the Graphite 230T Midi-Tower is convincing. In addition to the two pre-installed 120 mm fans in the front that light up in red, and a 120-cm fan in the back is installed. Additionally you can cover in either install two 140 mm fan or two 120mm fans. Moreover, even on the floor space for a 140er- or 120 fan. If you prefer water-cooled, may in the lid a 280 or 240 mm radiator and install a 120 mm radiator in the back.
Technical Details:
Dimensions: 210 x 440 x 505 mm (W x H x D)
Material: Steel
Color: Black, Red
Weight: 6.05 kg
Form Factor: ATX, Micro-ATX, Mini-ITX
Fans possible:
2x 120 mm (front)
2x 140/120 mm (cover)
1x 120 mm (rear)
1x 140/120 mm (bottom)
Fans pre-installed:
2x 120 mm (front, red LED)
1x 120 mm (rear)
Radiator Mountings (in case of partial lack of ventilation slots):
1x 280/240 mm (cover)
1x 120 mm (rear)
Drive bays:
3x 5.25 inch (external; no tools)
4x 3.5 inch (internally; no tools)
4x 2.5 inch (internally; no tools)
Power Supply: Standard ATX (optional)
Expansion Slots: 7
I / O panel:
2x USB 3.0
1x per Audio In / Out
Maximum video card length: 360 mm
Maximum CPU cooler height: 165 mm
Maximum PSU length: 200 mm
