Corsair now offers a broad portfolio of efficient and powerful all-in-one water cooling to, from entry level system to high-end, everything is represented. To the latter genus counts clearly the Hydro h110i GTX. An important advantage of this model compared to the smaller brothers is the downright brutal cooling capacity. She not only has a single but even a dual radiator, whereby the surface of the heat radiating massive rises and a very high power is possible.
Corsair now offers a broad portfolio of efficient and powerful all-in-one water cooling to, from entry level system to high-end, everything is represented. To the latter genus counts clearly the Hydro h110i GTX. An important advantage of this model compared to the smaller brothers is the downright brutal cooling capacity. She not only has a single but even a dual radiator, whereby the surface ...
Corsair now offers a broad portfolio of efficient and powerful all-in-one water cooling to, from entry level system to high-end, everything is represented. To the latter genus counts clearly the Hydro h110i GTX. An important advantage of this model compared to the smaller brothers is the downright brutal cooling capacity. She not only has a single but even a dual radiator, whereby the surface ...
No products found

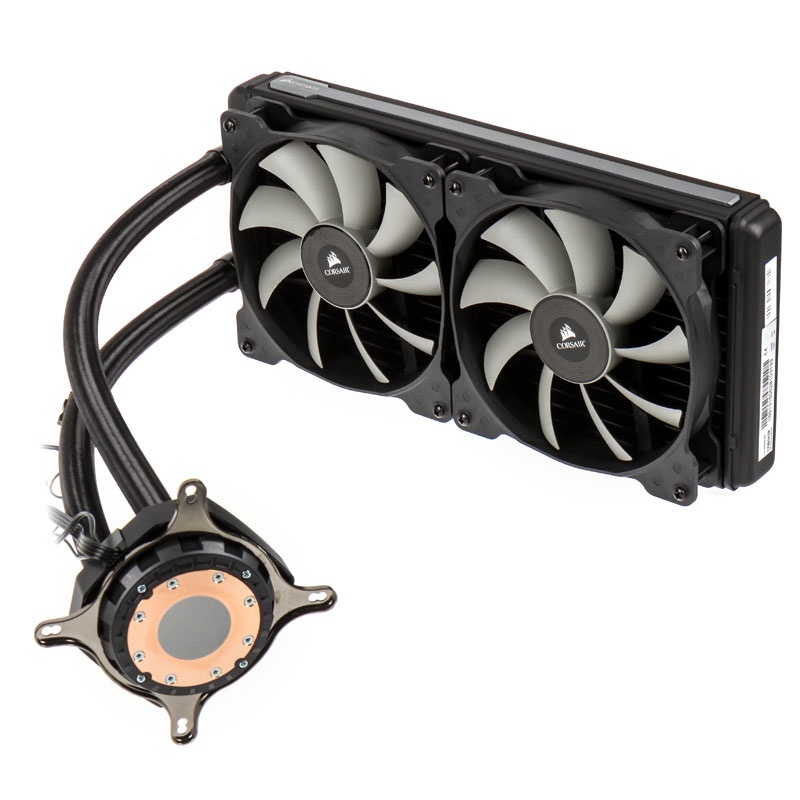

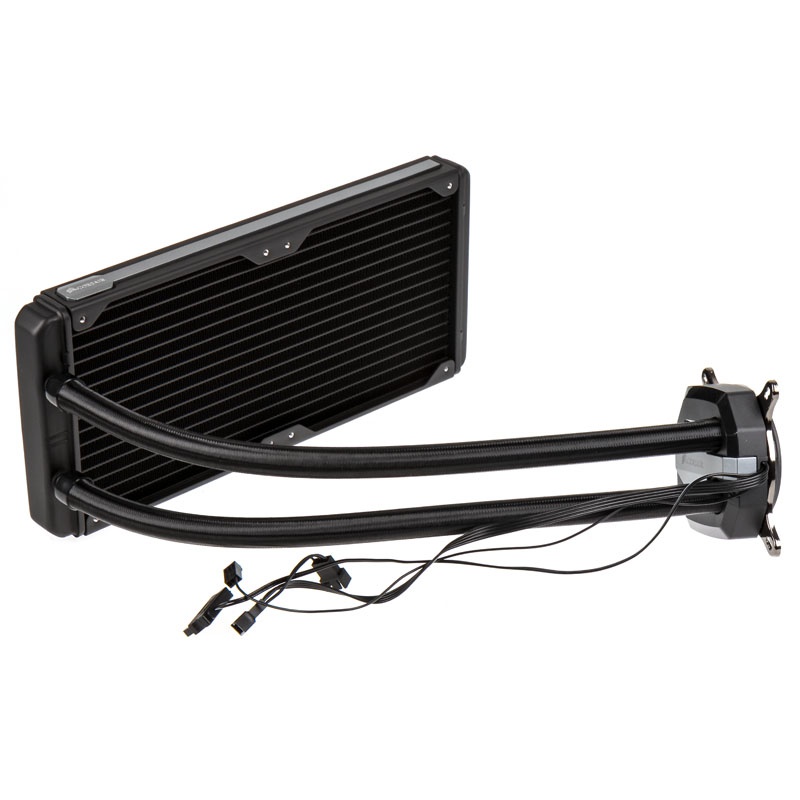

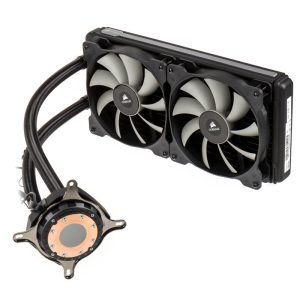

However, all compact watercooling systems combines the basic structure: They consist of two parts – the radiator and the heat sink. Is mounted on two 140s fan slots During the radiator when h110i GTX – preferably on the front panel or -oberseite – place the cooler on the CPU area. In the housing of the cooler, the pump and the expansion tank are already installed. Because it is a closed circuit, the system does not require maintenance.
The bottom of the heat sink absorbs the heat of the processor and routes them thanks to copper base plate efficiently to the water on. This in turn is pumped by the pump towards the radiator, where the cooling liquid flows through a fine lamellar structure and transfers heat to the air flowing through. The fan again ensures that the radiator is constantly supplied by fresh air. Compared to the previous model, the GTX h110i was further optimized, now looks a little fancier and now has jacketed hoses.
Like the predecessor h110i has also h110i GTX two very powerful fan from the Corsair Air Series, more precisely, two SP140L PWM. Has been optimized for high static pressure, which is important for the operation together with a radiator. These offer specially made blades in the 140-mm fans a better relationship between the static pressure and noise and thus higher performance at a lower noise than ordinary fans. It is even possible to increase the fan speed to a maximum of four, which then act in push-pull configuration. The fans are connected via the supplied Y-cable directly to the pump unit. It receives its power via an additional SATA power connector.
Also from its predecessor known is the Corsair Link feature – simply the attached Corsair Link cable to connect to a USB header on the motherboard and the Corsair free download Link Dashboard software. Thus, the coolant temperature can be monitored by the application and the cooling performance can be controlled. The software also permits the adjustment of color effects, because the Corsair logo on the pump by using RGB LEDs in every conceivable color and for example, depending on the coolant temperature can be illuminated.
Especially in compact enclosures can be used Tower cooler for space reasons mostly not. In the case of h110i GTX but only the flat cooler must sit directly on the CPU. The radiator can be installed in compliance with the hose length shall be free at a corresponding slot.
The mounting system of h110i GTX is suitable for base 115x, 1366, 2011 (-3), AM2 (+), AM3 (+) and FM1 and FM2 (+). The tool-free magnetic mounting brackets in modular design ensures easy installation. Pre- applied thermal paste to the cooler base.
Technical details:
Radiator size: 280 mm (312 x 260 x 140)
Fans: 2x 140mm (max 40 dB (A), 2,000 U / min, PWM.)
Compatibility: Socket 115x, 1366, 2011 (-3), AM2, AM2 +, AM3, AM3 +, FM1, FM2, FM2 +
Features:
Complete water cooling system with easy installation
Pre-charged and maintenance-free
High cooling capacity
Two Static Pressure 140 mm fan
Corsair Link software with fan control
High compatibility
