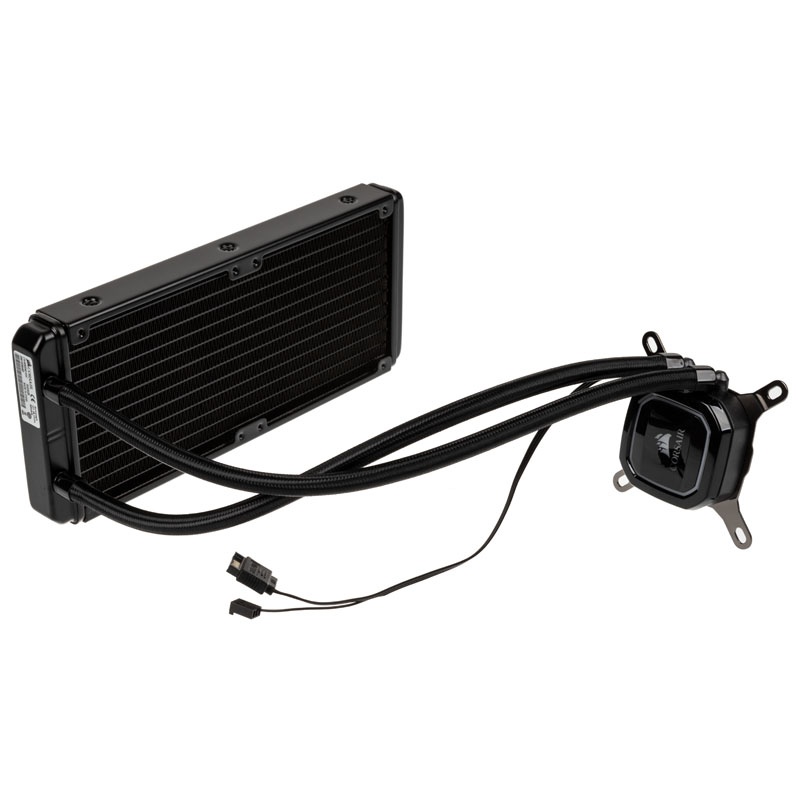

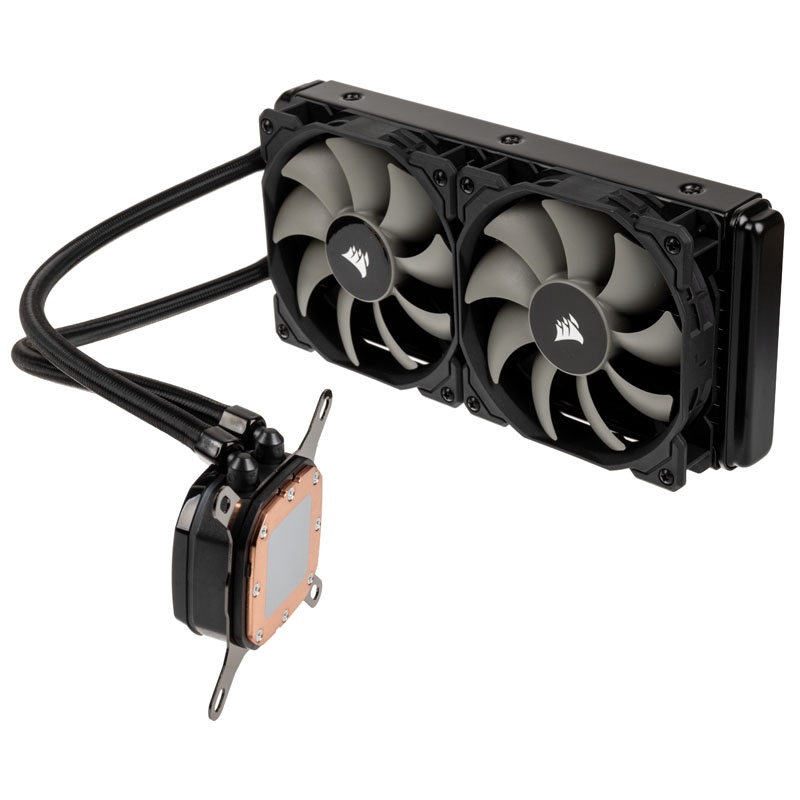

Corsair Cooling Hydro Series H100x full water cooling - 240mm

The Hydro Series H100x clearly belongs to the latter category.

The features of the Corsair Hydro Series H100x at a glance:
– Reliable AiO with 240 aluminum radiator
– CPU cooler with copper base plate
– Including two 120 mm PWM fans from Corsairs SP120 series
– Compatible with Intel 115x, 2011/2066, AMD AM3 / AM2 and AM4
– Integrated LED lighting in white

Strong complete water cooling for processors:
All compact WaKü systems combine the basic construction: They consist of two parts – the radiator and the heat sink. While the radiator on the H100x is mounted on two 120 fan slots, the module consisting of a CPU heatsink and pump fits on the processor. Since it is a closed circuit, the system does not need to be filled and maintained.

The bottom of the heat sink is made of copper and absorbs the waste heat from the processor particularly quickly so that it can be passed on to the coolant in the circuit. This is in turn conveyed by the pump towards the radiator, where it flows through a fine lamella structure and gives off the heat to the radiator, which is cooled by the air flowing through it.

The H100x has two very powerful fans from the Corsair SP-Series, more precisely: two SP 120 PWM fans. These are optimized for high static pressure, which is important for operation with a radiator. In addition, specially manufactured blades in the 120 mm fans offer a better ratio between static pressure and noise level and thus higher performance with less noise than with conventional fans. There is even the possibility of increasing the number of fans to a maximum of four, which then act in a push-pull configuration. The fans are connected directly to the pump unit using the Y cable supplied. This receives its power via an additional SATA power connector.

For reasons of space, tower coolers can usually not be used, particularly in compact housings. In the case of the H100x, however, only the flat cooler has to sit directly on the CPU. The radiator can be installed quite freely in a corresponding installation location, taking the hose length into account.

The mounting system of the H100x is suitable for the 115x, 2011/2066, AMD AM3 / AM2 and AM4 bases. The tool-free magnetic mounting bracket in a modular design ensures easy installation. Thermal paste is already applied to the underside of the cooler. The pump housing is equipped with chic white LED lighting that blends into any color scheme.

Technical details:
Radiator:
Type: 240 mm
Dimensions: 275 x 27 x 120 mm (W x H x D)
Material: copper (CPU cooler), aluminum (radiator)
Fan:
Type: 2x 120 mm
Speed: max. 1700 rpm
Funding volume: max. 97.18 m³ / h
Static pressure: 2.08mmH2O
Volume: max. 37 dB (A)
Connection: 4-pin PWM
Compatibility:
Intel: LGA 115x, 2011/2066
AMD: AM2 (+), AM3 (+), AM4
Manufacturer guarantee: 5 years
