With the Carbide-SPEC 01 A midi tower of Corsair, which combines a stable Stahlkonstrunktion with intelligent design for little money appears. The latter convinces especially with an aggressive appearance by strong contours and yet elegant design in a holistic given matt black color.
With the Carbide-SPEC 01 A midi tower of Corsair, which combines a stable Stahlkonstrunktion with intelligent design for little money appears. The latter convinces especially with an aggressive appearance by strong contours and yet elegant design in a holistic given matt black color.
With the Carbide-SPEC 01 A midi tower of Corsair, which combines a stable Stahlkonstrunktion with intelligent design for little money appears. The latter convinces especially with an aggressive appearance by strong contours and yet elegant design in a holistic given matt black color.
No products found

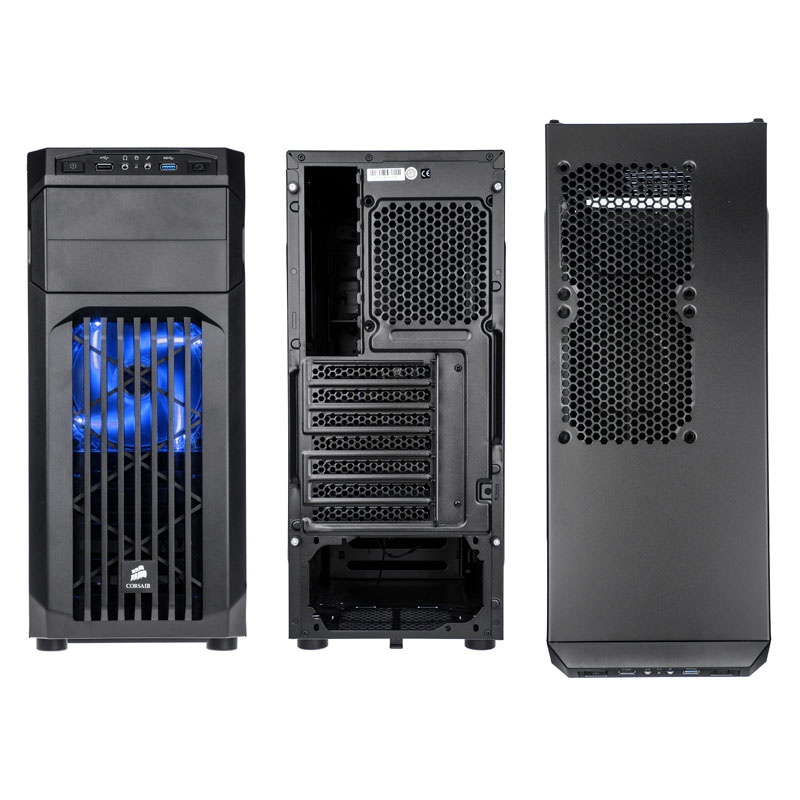

Thus we find at the front of the mid-tower among the two drive-panel a noble barred area with Corsair logo, behind which hides a preinstalled luminous blue LED fan. The I / O panel located on the two drive-panel and includes a USB 3.0 and a USB 2.0 port and two audio jacks and power and reset button.

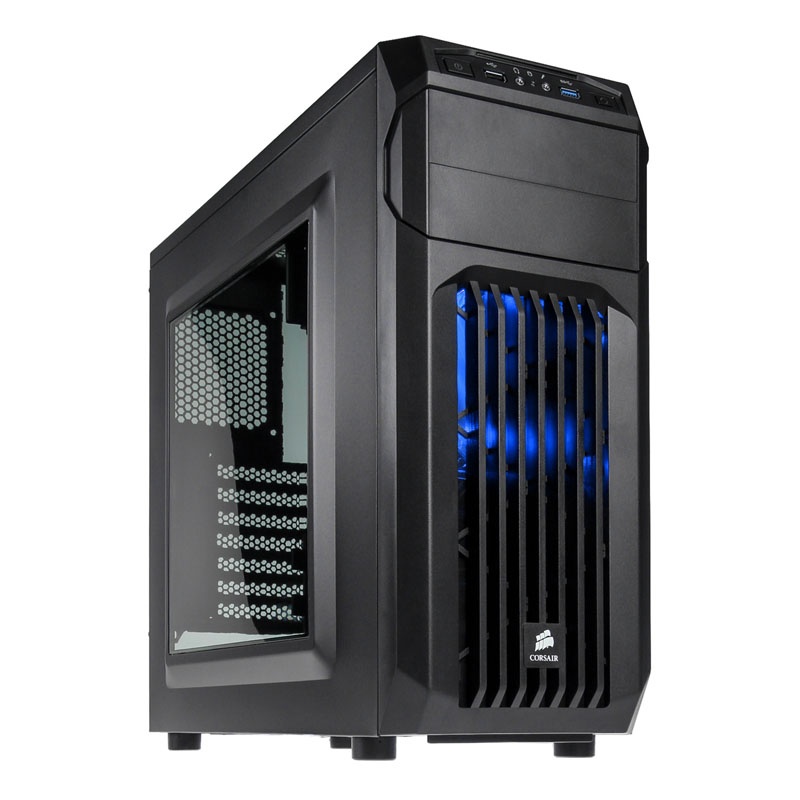

There is a generously proportioned window that provides a view on the internal components on the side. For the latter, the Carbide SPEC-01 has enough space in its interior. So you can install in the Midi-Tower Motherboard form factor ATX up. However, Micro-ATX and Mini-ITX boards can be easily installed, of course.
In addition to two 5.25-inch drives also four hard drives or SSDs can be installed without tools in the lower drive cage. The four slots are suitable for 3.5 and 2.5 inch drives. Special recesses in the housing interior enabling a excellent cable management.
For expansion cards are seven slots available. Graphics cards can thereby have a maximum length of 414 mm, which is sufficient easy for current high-end cards. CPU cooler, however, should not exceed a height of 150 mm. In addition, there is a CPU cut-out in order to carry cooling upgrades can, without having to remove the motherboard. Power supplies are installed back on the ground and can be up to 230 mm long.
In addition to the preinstalled 120 mm LED fan in the front can be there even install an additional 120 fans. But can optionally also two 140 mm fan in the front can be installed. On the cover, there are also two slots for 120-mm fan. In the back also can not install a 120. Instead, you can install a 120mm radiator also in the same place.
The Carbide Series SPEC-01 is once again proving that Corsair can combine great looks, smart design and a durable construction and at highly competitive pricing conditions in their products.
Technical details:
Dimensions: 200 x 430 x 479 mm (W x H x D)
Material: Steel
Weight: approx 4.8 kg
Matte Black
Form Factor: ATX, Micro-ATX, Mini-ITX
Fan total possible:
2x 140/120 mm (front)
1x 120 mm (rear)
2x 120 mm (lid)
Of this pre-installed:
1x 120 mm (front, blue LED)
Radiator-Mountings:
1x max. 120 mm (rear)
Filters: Front, Power Supply (removable)
Drive Bays:
2x 5.25 inches (external)
4x 3.5 / 2.5 inch (internal; without tools)
Power Supply: 1x standard ATX (optional)
Extension slots: 7
I / O Panel:
1x USB 3.0 (internal connection)
1x USB 2.0 (internal connection)
1x per Audio In / Out
Maximum video card length: 414 mm
Maximum CPU cooler height: 150 mm
Maximum power supply Length: 230 mm
