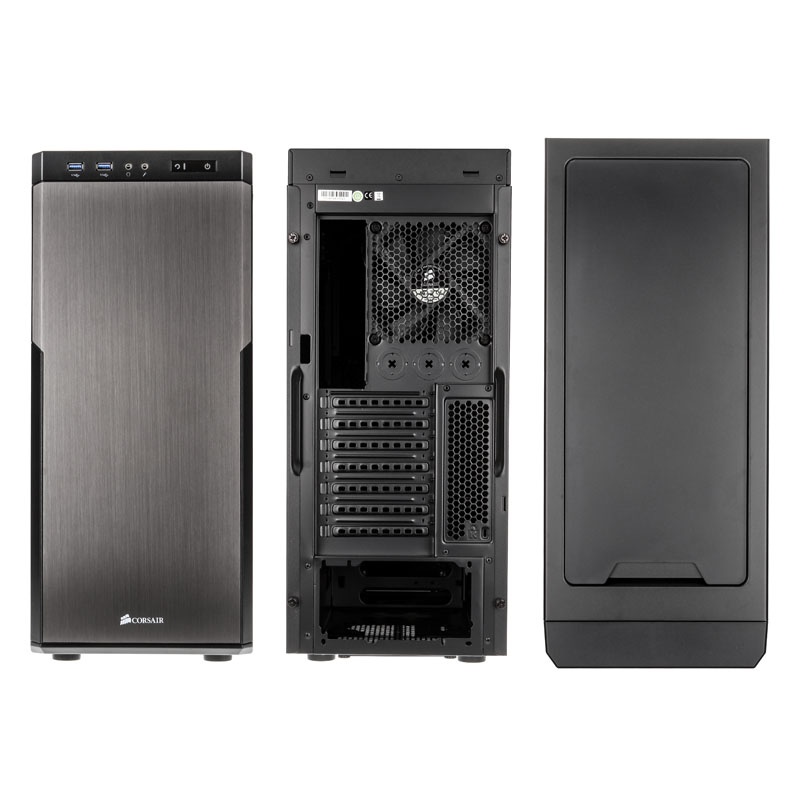

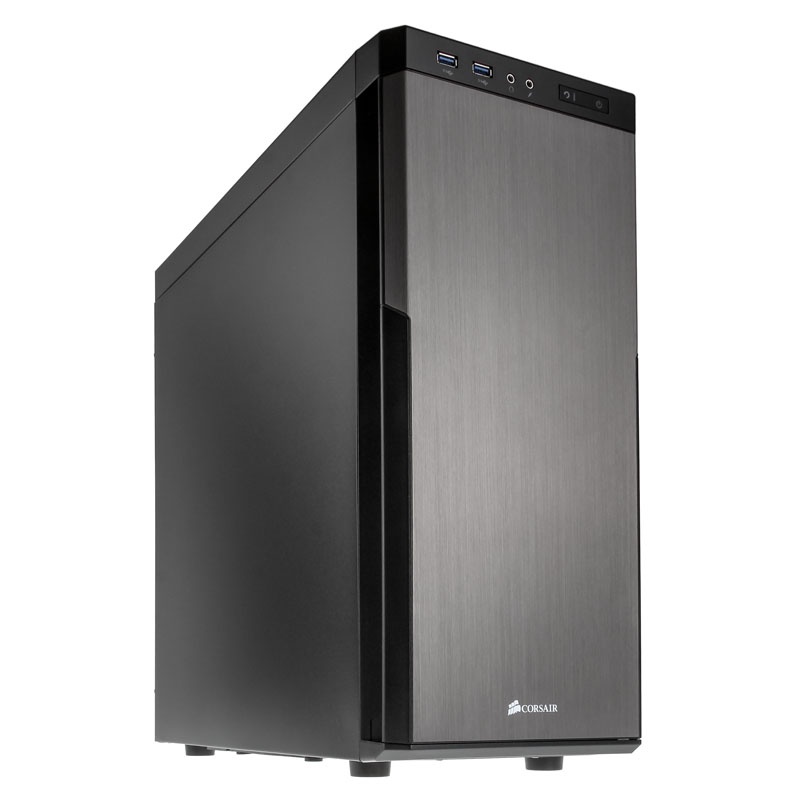

Corsair Carbide 330R Mid Tower - titanium

With the Carbide 330R – here in the Titanium Edition in special, elegant gray – Corsair adds the series with another fantastic Midi Case, which rightly called the Quiet Midi-Tower was missed. For while the 330R purely externally strongly reminiscent of his relatives Carbide 200R and 300R Carbide, it stands out from these in from that it is trimmed consistently on a quiet PC operation.

Physical distinguishing feature of the siblings is thus include the front door, which can be installed on both sides and thus – very flexible – the opening to the left or right permits. Typical of housing with flap: it penetrate less noise out front. The same effect also provides the removable cover panel which covers the fan slots when not in use.

But even more, both door and top cover are covered with an insulating material that absorbs the sound waves of the components. This is true also for the side panels, which are fitted with extra large mats. Consequently, the side panels are completely closed and, without fan slots, which also benefits the straightness of the airflow at the end

This are when delivered two fans jurisdiction of the 140s in the front and 120 mm rear fan above ensure proper airflow and may be supplemented if necessary by additional fans, with forward yet another 140s (or a total of two 120s) and in cover two 120- or 140-mm fan can be mounted also, of course, if one removes the top panel to do so.

Despite good ventilation penetrates thanks to the removable dust filters on the front and power supply place a little dust inside the Carbide 330R. This also results in long-term cause cooling fins remain free fan can work more efficiently and thus do not need to turn up unnecessarily. So fresh air can be sucked in spite door, has the front door on side vents ..

The QuietCase but can not only quiet but also practical: In many places the user is working, secure a tool, such as the HDD or ODD assembly in the slot covers are fastened with Thumb Screws or on removable for cleaning filters. In addition, there is a good cable management options and a large cutout in the tray allows easy changing the cooler.

Technical details:

    Dimensions: 210 x 484 x 495 mm (W x H x D)
    Material: Steel
    Color: Titanium
    Form Factor: E-ATX, ATX, Micro-ATX, Mini-ITX
    Fan total possible:
    2x 140/120 mm (front)
    1x 120 mm (rear)
    2x 140/120 mm (cover)
    Of this pre-installed:
    1x 140 mm (front)
    1x 120 mm (rear)
    Dust filter: Front, Power Supply
    Drive Bays:
    3x 5.25 inches (external; no tools)
    4x 3.5 / 2.5 inch (internal, 3.5 inch tools)
    Power supply: 1x Standard ATX (optional)
    Expansion Slots: 7
    I / O Panel:
    2x USB 3.0 (internal connection)
    1x per Audio In / Out
    Maximum video card length: 450 mm
    Maximum CPU cooler height: 160 mm
