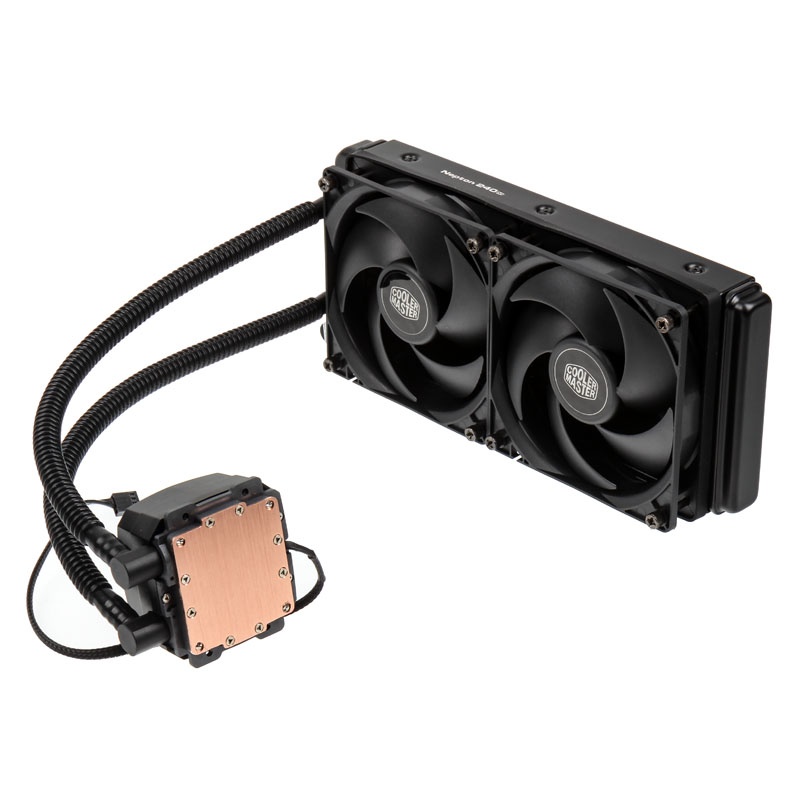

The Cooler Master Nepton 240M is a compact all-water cooling with simple, chic look and a strong cooling capacity. The extensive scope of supply, the build quality and the two 120-mm fans provide in combination with the 240-mm radiator, the efficient water block and strong pump for an always well-chilled water cycle and associated high system performance.
The Cooler Master Nepton 240M is a compact all-water cooling with simple, chic look and a strong cooling capacity. The extensive scope of supply, the build quality and the two 120-mm fans provide in combination with the 240-mm radiator, the efficient water block and strong pump for an always well-chilled water cycle and associated high system performance.
The Cooler Master Nepton 240M is a compact all-water cooling with simple, chic look and a strong cooling capacity. The extensive scope of supply, the build quality and the two 120-mm fans provide in combination with the 240-mm radiator, the efficient water block and strong pump for an always well-chilled water cycle and associated high system performance.
No products found
Moreover, these all-in-one water cooling is completely maintenance-free, because the circuit was factory filled with coolant, sealed and pressure-tested. As nice complement donated Coolermaster the 240M a stylish LED lighting on the water block or the pump.
Features of Cooler Master Nepton 240M complete water cooling:
A large 240-mm radiator ensures improved heat dissipation
Two 120 mm fans produce high air pressure at low noise levels
Factory filled with coolant and completely maintenance-free
Flexible hoses with high buckling strength
Cool LED lighting on the water block

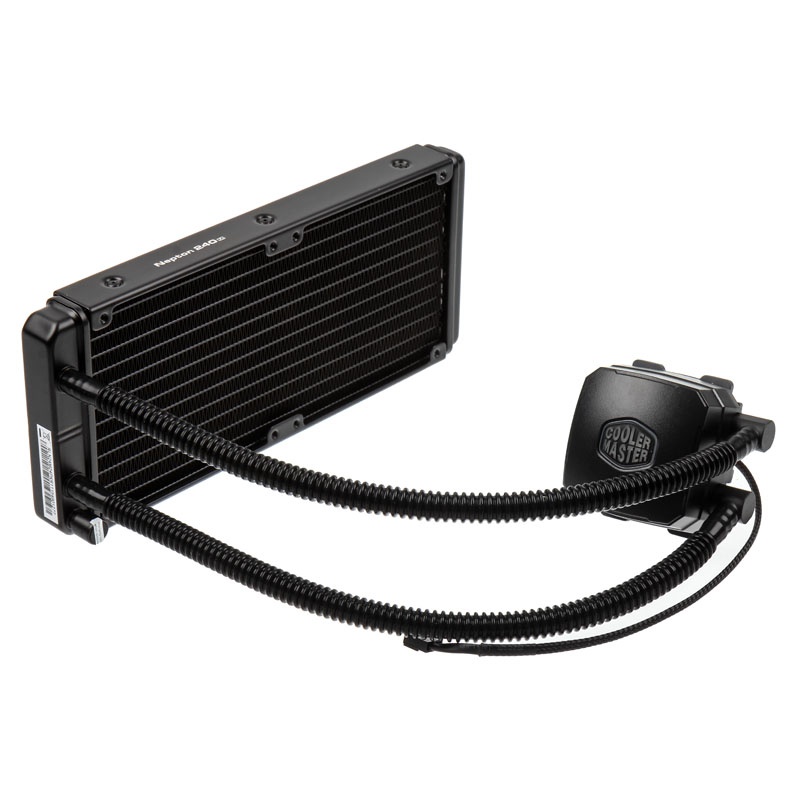

Construction and design of Nepton 240M Cooler Master
The system of Nepton consists of a simple construction of two parts, the radiator and the heat sink. While the radiator is mounted on a 120mm fans slot, preferably on the rear side of the radiator takes on the CPU space. In the housing of the cooler, the pump and the expansion tank are already installed. Since it is a closed circuit, the system does not require maintenance.
The already large base of the heat sink absorbs the heat from the processor and passes it through copper efficiently to the water on. This in turn is pumped by the pump direction radiator, where the cooling liquid flows through a fine lamellar structure and transfers heat to the air flowing through. The fan again ensure that the radiator is constantly supplied by fresh air.
To increase the cooling capacity of Nepton 240M over the competition, the water flows through to the CPU a machined structure with fine channels. These increase the surface area for heat transfer to the water and thus increase the cooling capacity. In addition, the tubes are made of sturdy material FEP and provide greater flexibility while maintaining low evaporation of coolant and high buckling resistance.
Two 120 mm fans ensure high air pressure at low noise levels
Two 120-fan are responsible to flow through the radiator with sufficient air. Cooler Master uses on-site models with name Silencio FP120 that at speeds of 800 – produce 4.8 mm H2O – high airflow of 28 2,400 U / min – 128 m³ / h and a static air pressure of 0.48. This occurs at a lowest possible noise level of only 6.5 to 27 dB (A), as required. Both fans are equipped with five large blades in sickle blade design. You use a dynamic bearing (Loop Dynamic Bearing), which was awarded the IP6X Certificate and accordingly have the highest dust level.
Installation & compatibility of Cooler Master Nepton 240M
Especially in compact enclosures can be used tower air coolers for space reasons mostly not. In the case of Nepton only the heatsink must sit directly on the CPU. The radiator can be placed in compliance with the hose length of 35.5 cm quite freely in the housing, wherein the back offers. The mounting system for the cooling block of Nepton is for Intel Socket LGA 775, 1150, 1151, 1155, 1156, 1366, 2011 2011-3 and AMD Socket AM2, AM3, AM3 +, FM1, FM2, suitable FM2 +. After successful installation of these components, the pump via 3-pin and the two fans are respectively connected via 4-pin plug and complete water cooling can start operating.
Technical details:
Radiator:
Dimensions: 274 x 119 x 27 mm (W x H x D)
Material: Aluminum
Pump:
Dimensions: 75 x 69.8 x 49.1 mm
Engine speed: 2,500 r / min
Water flow: 120 liters per hour
Volume: Voltage: 12 V
Power Consumption 4.8 watts
Connector: 3-Pin
Life expectancy: 70,000 hours
Fan:
Type: 2x Cooler Master Silencio 120 mm fan (FP120)
Speed: 800-2400 U / min (± 10%)
Air flow: 28-128 m³ / h ± 10%
Static Pressure: 0.48 to 4.8 mm H2O ± 10%
Volume: 6.5 – 27 dB (A)
Connection: 4-pin PWM
Hose:
Length: about 35.5 cm
Material: FEP
Compatibility:
Intel LGA 775, 1150, 1151, 1155, 1156, 1366, 2011, 2011-3
AMD: AM2, AM3, AM3 +, FM1, FM2, FM2 +
