Cooler Master MasterCase Pro 5 Midi-Tower - black Window

The premise of this modular housing is the possibility of Interior and body of the case to make the individual requirements accordingly and expand as needed. The Master Case 5 series represents the first case from Cooler Master in this segment, with its design Cooler Master has worked closely with the case modders community.

The offered black Cooler Master Case Master Pro 5 is quasi the middle  expansion-stage  the Master Case 5 series and has as such a window and included in the delivery cover mount for radiators. It is directly influenced by the radiator bracket in the cover the appearance by the previously open space between the solid metal handles is filled with a lining. In addition to the modular design of the Master Case Pro 5 can also be purely optical already set nice accents.

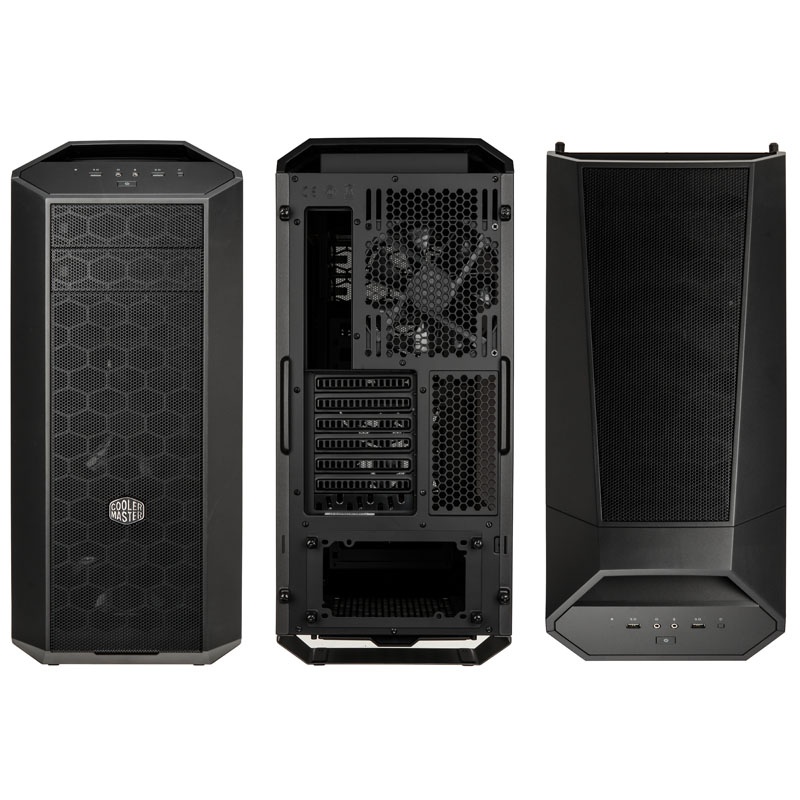

Which appears on two rubberized metal feet Case has a large mesh grille with an underlying, coarse-mesh grid area in a honeycomb shape to impress with built behind LED fans which do especially when combined. The front panel is far away from the chassis, which is achieved through the use of angled elements on the sides and above the mesh surface. In the upper angled front panel is also located the I / O panel, which is equipped with two audio ports and USB 3.0 ports equipped with the times.

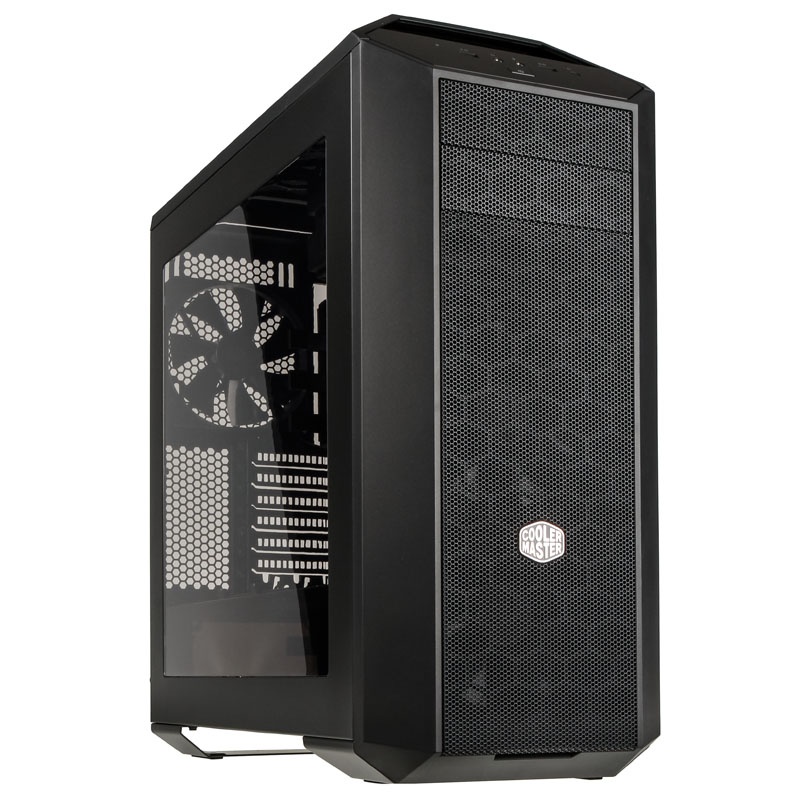

By  mesh top cover  between the handles to the front-end design reflects in part on the lid, so that it was a great overall impression. From the large window in the left part, a look at the heart of the Master Case 5 series are cast: the modular interior. A power supply Cover with rubberised cable bushings separates the power supply in the bottom and a removable HDD Bay from two-drive from the rest of the interior. In addition to the cable glands are located on the cover and drilling for two mounts for 2.5-inch SSDs.

Alternatively, these two brackets, which are provided with thumb screws, are mounted behind the motherboard tray. The two 5.25-inch drive bays can be removed when not needed while the HDD cage for three HDDs / SSDs can be removed completely vertically moved up or down or. This modularity allows the installation of up to 412 mm long graphics cards, if no drive cage is in the way and even with HDD Cage remain up to 296 mm for one or more graphics cards.

The three pre-installed 140 mm fans on the front (2x) and the back (1x) ensure a good airflow, especially in Drive Bays remote, and CPU coolers can be up to 190 mm high. With another optional 120/140 mm fan in the front as well as the option to build in two fans of this size in the cover, this good airflow can be further improved. For water cooling radiators can in the front (max. 240/280 mm), the cover (max. 240 mm) and rear (120/140 mm) are installed.

As a special missing when Cooler Master Case Master Pro 5, the struts between the seven PCI-aperture so that any existing exhaust ports of a graphics card to perform their function unhindered. For Cable Management 25 mm space behind the MB tray available and dust filter at the bottom, the lid and the front part of the large package of features of Master Case Pro. 5

Technical details:
Dimensions: 235 x 548 x 512 mm (W x H x D)
Material: SECC-steel, plastic
Weight: 10.7 kg
Color: Black
Format: ATX, Micro ATX, Mini-ITX
Fan:
3x 120/140 mm (front)
2x 120/140 mm (rear)
1x 120 mm (bottom)
Of preinstalled:
2x 140 mm (front)
1x 140 mm (rear)
Radiator Mountings (partial waiving HDD and / or fan slots):
1x max. 280/360 mm (front (max. 40 mm without fans))
1x max. 240 mm (end (max. 40 mm without fans))
1x max. 120/140 mm (rear)
Filter: Front, Power Supply, cover
Drive Bays:
2x 5.25 inches (external)
2x 2.5 inch (internal)
5x 2.5 / 3.5 inch (internal; toolless mounting)
PSU 1x standard ATX (optional)
Expansion Slots: 7
I / O panel:
2x USB 3.0
2x Audio
Maximum video card length: 296 mm (with HDD cage)
Maximum video card length: 412 mm (without HDD cage)
Maximum CPU cooler height: 190 mm
