Modular housings have not been a novelty for a long time and are to be found in various sizes by the best-known manufacturers in the field of PC housings. The premise of these modular enclosures is the possibility to design the interior and body of the case according to the individual requirements and to expand as necessary. The MasterCase 5 series is Cooler Masters first chassis in this segment, whose design Coolermaster has worked closely with the Case-Modder community.
Modular housings have not been a novelty for a long time and are to be found in various sizes by the best-known manufacturers in the field of PC housings. The premise of these modular enclosures is the possibility to design the interior and body of the case according to the individual requirements and to expand as necessary. The MasterCase 5 series is Cooler Masters first chassis in this segment, ...
Modular housings have not been a novelty for a long time and are to be found in various sizes by the best-known manufacturers in the field of PC housings. The premise of these modular enclosures is the possibility to design the interior and body of the case according to the individual requirements and to expand as necessary. The MasterCase 5 series is Cooler Masters first chassis in this segment, ...
No products found
The offered black-red Coolermaster MasterCase Maker 5t is almost the highest expansion stage ?? The MasterCase 5 series and as such has over-toned hard-glass windows, a fan and LED controller, a graphics card holder, a red LED light, a movable front panel and a lid holder for radiators already included in the delivery. The radiator holder in the lid directly influences the exterior appearance by filling the previously open space between the solid metal carrying handles with a covering. In addition to the modular design, the MasterCase Maker 5t can also set nice accents.
The Coolermaster MasterCase Maker 5t Midi-Tower at a glance:
Modular Midi-Tower in black / red
Space for ATX mainboards and smaller
Two lockable tinted hard glass side windows
Graphics cards up to a maximum of 412 mm
Three 140mm fans & dust filters included
Integrated LED & fan control
2x 5.25 / 2x 3.5 / 2x 2.5 slots
Hold system for up to two graphics cards
Red LED light (1 strip) available
Modular Midi-Tower with excellent design

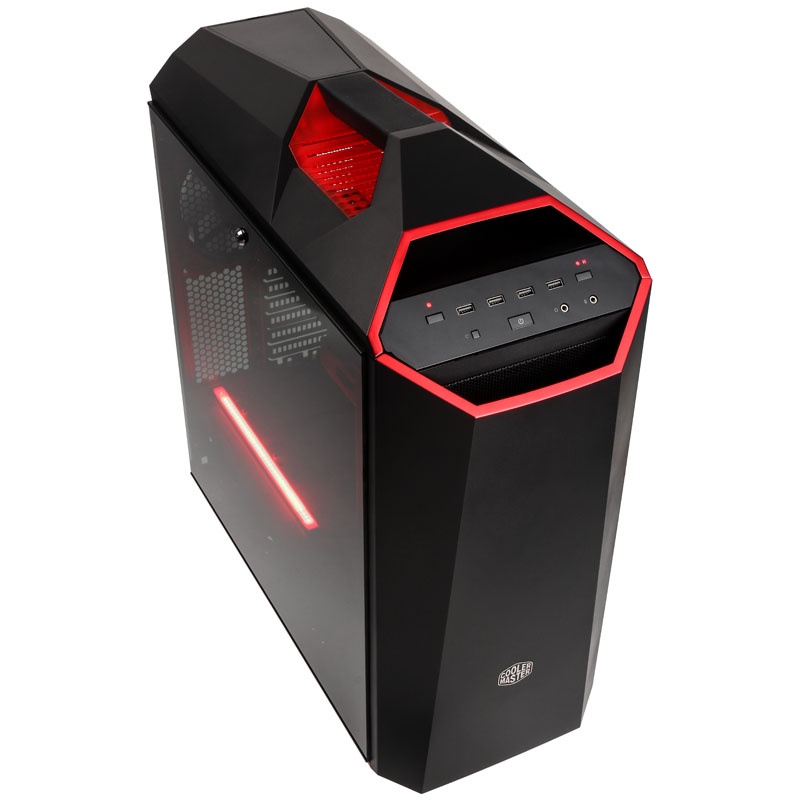

The case, which is mounted on two rubberized metal feet, has a large, movable front panel that not only fits perfectly with the rest of the chassis, but also hides two 5.25-inch drive bays. In the upper, angled front panel is also the I / O panel, which is equipped with two audio connectors, the LED and fan control and four USB 3.0 ports.

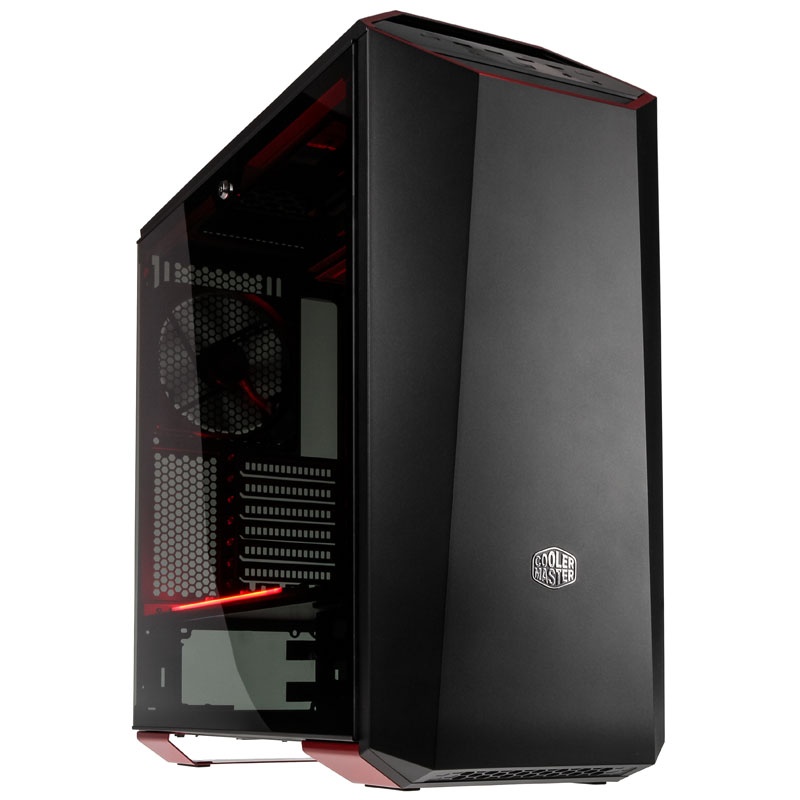

Due to the striking design of the carrying handle, the front design is partly reflected on the cover, resulting in a very successful overall impression. Two tinted and even lockable side windows from genuine glass also offer a breathtaking view of installed hardware and the modular interior of the MasterCase Maker 5t. A power supply cover with rubberized cable grommets separates the power supply in the ground and a removable HDD bay for two drives from the rest of the interior. In addition to the cable glands, there are two holders for 2.5-inch SSDs on the cover.
Alternatively, these two brackets, which are equipped with thumb-screws, can be mounted behind the mainboard tray. The two 5.25-inch drive bays can be removed when not in use, while another optional HDD cage may be installed below. This modularity allows the installation of up to 412 mm long graphics cards when no drive cage is in the way and even with HDD cage remain up to 296 mm for one or more graphics cards.
The three preinstalled 140 mm fans in the front (2x) and the rear (1x) ensure good airflow, especially with remote drive bays. CPU coolers may be up to 190 mm high. With a further optional 120/40 mm fan in the front as well as the option of installing two fans of this size in the cover, this good airflow can be further improved. For water cooling, radiators can be installed in the front (max 240/280 mm), the cover (max 240 mm) and the back (120/140 mm).
As a special feature the Coolermaster MasterCase Maker 5t lacks the struts between the seven PCI screens, so that any exhaust air openings of a graphics card can function unhindered. An additional holding system also provides additional stability for up to two graphics cards, and the control unit behind the mainboard allows connection of up to six fans and four LED strips at the same time. For cable management, 35 mm space is available and dust filters in the floor, the lid and the front also belong to the extremely large feature package of the MasterCase Maker 5t.
Technical details:
Dimensions: 242 x 574 x 544 mm (W x H x D)
Material: steel, plastic, hard glass
Weight: approx. 13.5 kg
Color: Black / Red
Format: ATX, Micro-ATX, Mini-ITX
Fan (optional):
3x 120/140 mm (front)
1x 120/140 mm (rear side)
2x 120/140 mm (cover)
Pre-installed:
2x 140 mm (front)
1x 140 mm (rear side)
Radiator Mountings:
1x 280/240/140/120 mm (front)
1x 140/120 mm (rear side)
1x 280/240/140/120 mm (cover)
Filter: Front, power supply, cover
Drive Shafts:
2x 5.25 (external)
2x 2.5 inches (internal)
2x 3.5 inches (internal)
Power supply: 1x standard ATX (optional)
Expansion slots: 7
Lighting: LED strip (red)
I / O panel:
4x USB 3.0
2x Audio (In / Out)
1x fan control
1x LED control
Maximum graphics card length: 296 mm (with 3.5 HDD cage)
Maximum graphics card length: 412 mm (without 3.5 HDD cage)
Maximum CPU cooler height: 190 mm
Maximum power supply length: 200 mm
