Master Cooler shows all his expertise and presents an enclosure that will delight gamer and modder alike. Despite the compact form, there is enough space for CPU cooler and AiO water cooling and a powerful graphics card.

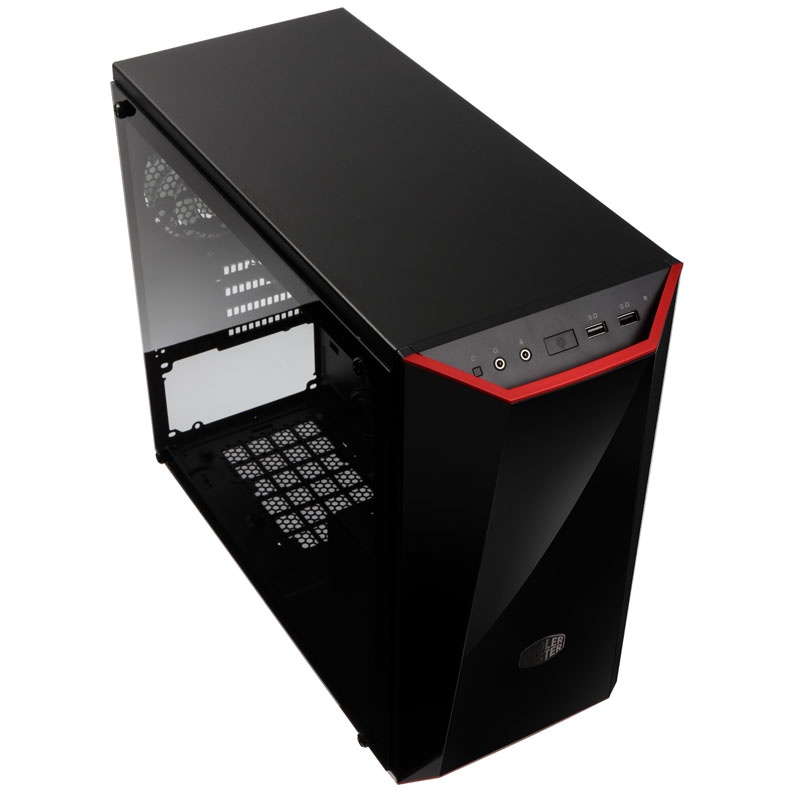

Overview of the Cooler Master Masterbox Lite 3.1 TG Micro ATX Case:
Compact black housing for Micro ATX
Stylish front and side part made of tempered glass
Graphics cards up to 380 mm in length
Space for 240mm radiators
Including 120mm fan on the back
Masterbox Lite 3.1 TG: Micro-ATX case made for modders and gamers
The Masterbox Lite 3.1 TG accommodates graphics cards up to a whopping 380mm in length, though the hard drive cage remains adjacent to the power supply cover for two 3.5-inch hard drives or 2.5-inch SSDs. CPU coolers up to a height of 158 mm can be installed in the Micro ATX case and the power supply unit can be up to 160 mm long.
A pre-installed 120mm rear fan ensures good airflow in combination with two optional 12mm front fans. Due to the clear but tinted tempered glass front, LEDs – better still RGB LEDs – would come into their own. As an alternative to air cooling, a 240 mm radiator can be installed in the front, while at the rear a 120 mm heat exchanger can still be installed, such as AiO water cooling.
Anyway, the front stands out with its exclusive design. It is inclined at an angle to the front and beveled back towards the top towards the lid. There, the I / O panel is equipped with a USB 3.0 and 2.0 port as well as the almost obligatory audio sockets and the power and reset switches. At the top and bottom of the front, Cooler Master has interchangeable red trim and a replacement in black and white. If you have a 3D printer, you can download the template from Cooler Master and print it in a different color.
The case accommodates one 2.5-inch and two 3.5-inch drives in a drive cage on the floor next to the optional power adapter. This may be up to 160 mm long. In the particularly light with 4.1 kg curb weight also two dust filters are installed on the floor and on the front. This leaves the powerful and hopefully chic illuminated hardware behind the tempered glass of the side panel long dust-free.
Technical details:
Dimensions: 209 x 456 x 381 mm (W x H x D)
Material: steel, tempered glass, plastic
Weight: approx. 4.1 kg
Color: Black
Format: Micro-ATX, Mini-ITX
Fan (possible):
2x 120 mm (front)
1x 120 mm (back)
Preinstalled:
1x 120 mm (back)
Radiator Mountings:
1x max. 240 mm (front side)
1x max. 120 mm (back)
Filter: front, power supply
Drive Bays:
1x 2.5 inches (internal)
2x 3.5 inches (internal)
Power supply: 1x standard ATX (optional)
Expansion Slots: 4
I / O panel:
1 x USB 3.0
1 x USB 2.0
2x audio (in / out)
Maximum graphics card length: 380 mm
Maximum CPU cooler height: 158 mm
Maximum power supply length: 160 mm
