Cooler Master Elite 130 RC-130-KKN1 Mini ITX Case - Black

Also on the drive cage , another 120 radiator can be mounted inside . Moreover, Cooler Master has built on a specially built frame on the right side of a 80 – mm fan in low-profile design , the motherboard and graphics card helps to cool temperatures and yet does not cause space problems . So the fans can also suck in enough air ventilation grilles are recessed into the case everywhere.

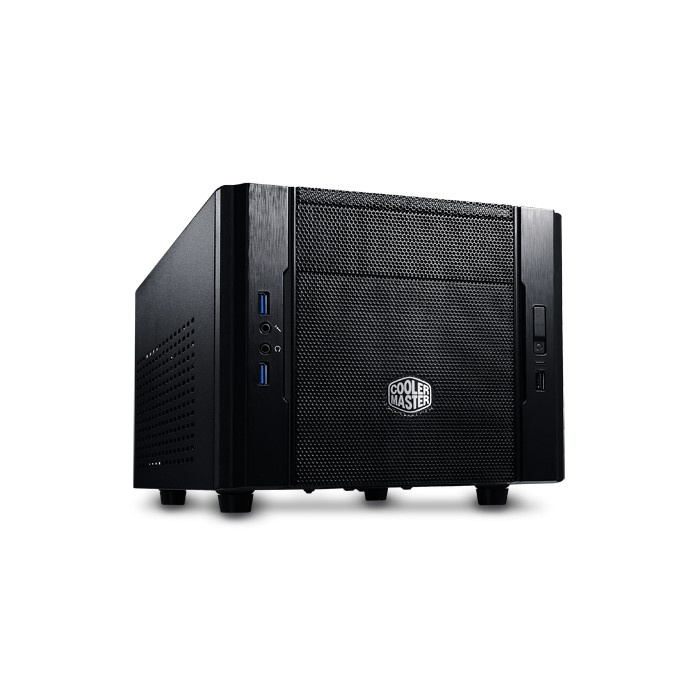

The front look of the Elite 130 is significantly influenced by the brushed black aluminum , which gives a very high-quality impression . Clean and stylish. Also, the I / O panel on the right and left sides with power switch, reset button and two USB 3.0 ports and audio connections have been integrated clean. The two outer sides have as mentioned above perforated grid , optimizing ventilation.

The interior has an extremely well thought out , make maximum use of the available space . Up to five 2.5 -inch drives can be installed in the HDD cage . This is located below the optical 5.25- inch drive (no slim drive necessary) and , in addition to SSDs also accommodate up to three 3.5 -inch drives . Thus, even a powerful combination of several fast SSDs, and large hard drives is possible.

The rear space is occupied almost entirely by the Mini -ITX motherboard and the optional standard ATX power supply. For CPU Coolers with at least 65 mm height are available. Since directly above the radiator , the PSU is mounted , it should be ensured that this comes in low profile format. The left side of the case is fully reserved for the graphics card , so that practically the entire inner length ( up to 343 mm) is available. Two slots for expansion cards, allow the use of double – slot graphics cards. For this purpose, a hose guide for external WaKüs be used .

Technical details (housing) :

    Dimensions: 240 x 205 x 377.5 mm (W x H x D)
    Material: Steel (Body ), aluminum ( front )
    Weight: 3,1 kg ( without power supply)
    Color: Black
    Format: Mini -ITX
    fan:
    1x 120 mm
    1x 80 mm
    Radiator Mountings :
    1x 120 mm ( front)
    Drive Bays:
    1x 5.25 inch ( external)
    3x 3.5 (internal)
    5x 2.5 (internal)
    Power Supply : Standard ATX ( optional)
    Expansion Slots : 2
    I / O panel :
    2x USB 3.0
    1x USB 2.0
    1x each Audio In / Out
    Maximum graphics card length : 343 mm ( max. 2 -Slot)
    Maximum CPU cooler height : 65 mm
    Maximum PSU length: 142-188 mm ( depending on the cable management)
