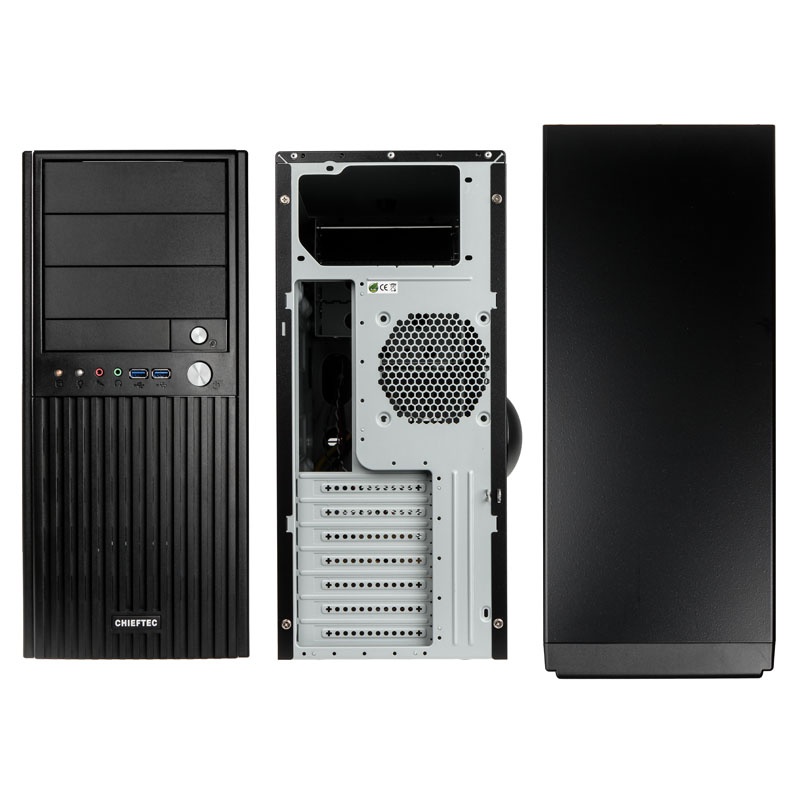

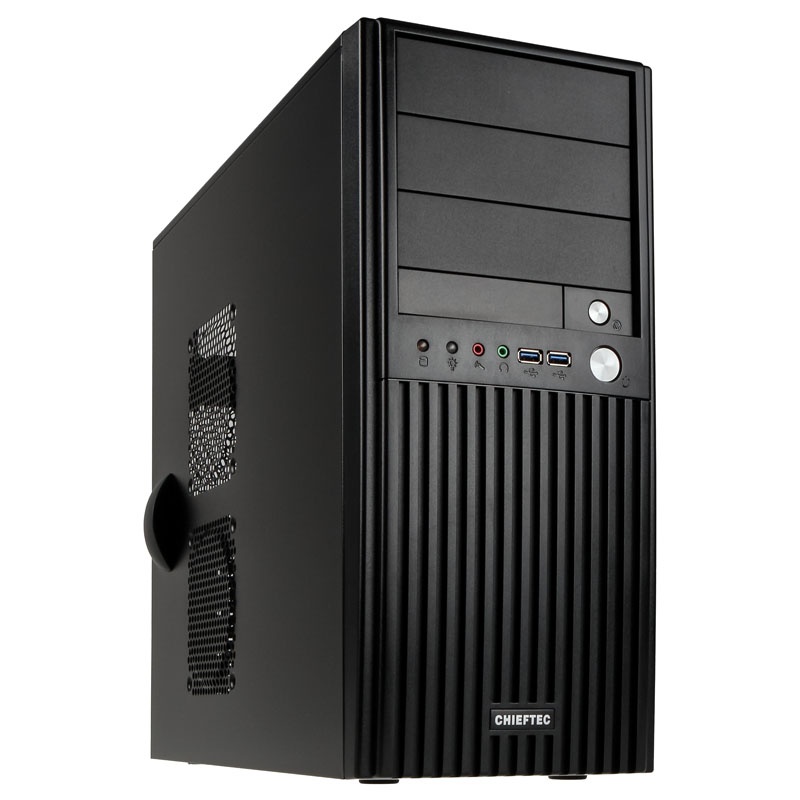

The compact and simply designed Bravo Series BM-02B-U3 Midi-Tower of Chieftec in black offers many nice features for a fair price. The Case has next to two USB ports in the I / O panel on a removable drive cage for three 3.5-inch drives, one bay for a 2.5-inch data storage and four external drive bays.
The compact and simply designed Bravo Series BM-02B-U3 Midi-Tower of Chieftec in black offers many nice features for a fair price. The Case has next to two USB ports in the I / O panel on a removable drive cage for three 3.5-inch drives, one bay for a 2.5-inch data storage and four external drive bays.
The compact and simply designed Bravo Series BM-02B-U3 Midi-Tower of Chieftec in black offers many nice features for a fair price. The Case has next to two USB ports in the I / O panel on a removable drive cage for three 3.5-inch drives, one bay for a 2.5-inch data storage and four external drive bays.
No products found
Three of these drive slots take via screwless Klammerarretierung to 5.25-inch drives, while the fourth, offset to the left slot accommodates an external 3.5-inch drive. The I / O panel under the external drive slots falls contemporary and next to the two USB ports (1x USB 2.0 & 3.0), there are two status LEDs and one power and reset button.
The painted in gray interior of the case features an ATX or micro-ATX motherboard, a home (with space for cable management behind the MB tray) and several, up to 280 mm long graphics cards can be installed in the Tower. In addition to the removable drive cage for three hard drives of the bottom of the BM-02B-U3 Midi-Tower can accommodate a data memory, in this case a 2.5-inch SSD. CPU cooler can be up to 155 mm high.
An optional 120-mm fan on the front can be supplemented by other optional fan, which in the rear (92 mm) and the left side part (2x 120 mm) can be installed. An ATX power supply can be installed under the lid to provide built-in gaming hardware with the necessary power.
Technical details:
Dimensions: 190 x 420 (with feet + 5 mm) x 456 mm (W x H x D)
Material: steel, plastic
Weight: 6.51 kg
Color: Black (outside), gray (inside)
Form Factor: ATX, Micro-ATX
Fan total possible:
1x 92 mm (rear)
1x 120 mm (front)
2x 120 mm (left side panel)
Drive Bays:
3x 5.25 inches (external)
1x 3,5 inches (external)
3x 3.5 inch (internal)
1x 2.5 inch (internal)
Power Supply: 1x standard ATX (optional)
Extension slots: 7
I / O Panel:
1x USB 3.0
1x USB 2.0
1x per Audio In / Out
Maximum video card length: 280 mm
Maximum CPU cooler height: 155 mm
