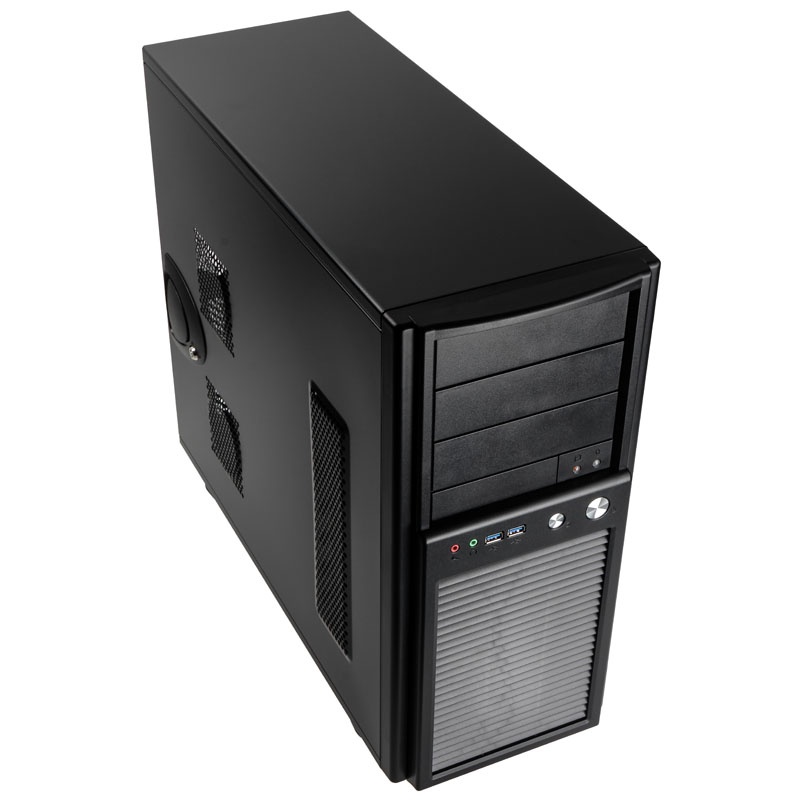

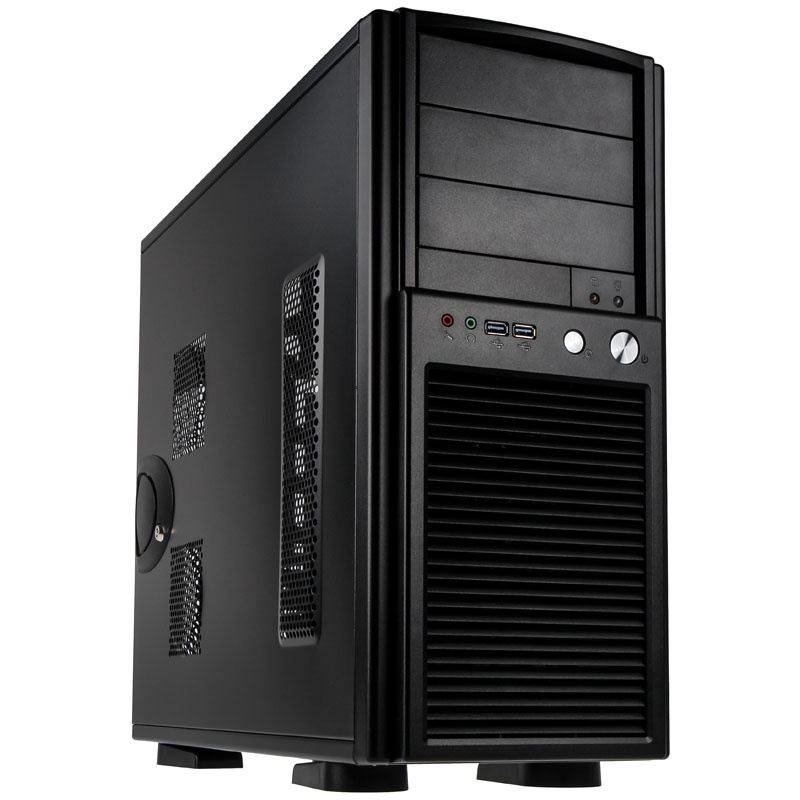

Chieftec Smart SH-03B Midi Tower - black

The Chieftec SH-03B midi tower of the Smart series in black can accommodate mainboards up to the E-ATX form factor and is suitable not only as a case for a gaming-PC, but also because of its simple design and the three external drive slots As the basis for a home office PC or a workstation.

Chieftec
  • SKU: GECH-091
  • MPN: SH-03B-OP
  • EAN: 4710713230163
  • Warranty: 12 Months
This product is now End of Life
Alternative items from  Chieftec
  • Thermaltake S370 WS PC Case, Mid-Tower, E-ATX, Tempered Glass - black
    Thermaltake S370 WS PC Case, Mid-Tower, E-ATX, Tempered Glass - black
    Code: GETT-007
    £102.55£85.46 Inc VatEx Vat
  • 1st Player IS3-BK Micro ATX Black Case
    1st Player IS3-BK Micro ATX Black Case
    Code: CAS-99992
    £32.99£27.49 Inc VatEx Vat
  • 1st Player F3-A-BK ATX Black Case
    1st Player F3-A-BK ATX Black Case
    Code: CAS-998
    £40.00£33.33 Inc VatEx Vat

The Chieftec SH-03B midi tower of the Smart series in black can accommodate mainboards up to the E-ATX form factor and is suitable not only as a case for a gaming-PC, but also because of its simple design and the three external drive slots As the basis for a home office PC or a workstation.

Details

Three of these external drive slots accommodate 5.25-inch drives, while the fourth, left-shifted bay accommodates an external 3.5-inch drive. In addition to two USB 3.0 ports, audio ports, and two status LEDs, the I / O panel in the center of the front panel has a power and reset button.

The gray painted interior of the tower can accommodate up to 320 mm long pixel accelerators and thanks to the seven PCI screens, several graphics cards and additional plug-in and expansion cards can be installed. For data storage, six drive slots are available for 3.5-inch hard disks and CPU coolers may be up to 160 mm high.

For the passive cooling of the drives, the left side panel has a ventilation grille in the front area and can also accommodate two optional 92 mm fans, as well as the right side panel. An optional 120 mm fan can also be mounted on the rear panel. For external water cooling, two hose ducts have also been integrated into the case.

Technical details:
Dimensions: 205 x 440 (with feet + 20 mm) x 540 mm (W x H x D)
Material: steel, plastic
Weight: approx. 12.23 kg
Color: Black (outside), Gray (inside)
Form Factor: E-ATX, ATX, Micro-ATX
Total fan possible:
1x 120 mm (rear side)
2x 92 mm (left side part) 2x 92 mm (right side part)
Drive Shafts:
3x 5.25 (external)
1x 3.5 inches (external)
6x 3.5 inches (internal)
Power supply: 1x standard ATX (optional)
Expansion slots: 7
I / O panel:
2x USB 3.0
1x each audio in / out
Maximum graphics card length: 320 mm
Maximum CPU cooler height: 160 mm
