Submit Time and again one can only wonder how it manages BitFenix so unique and yet appealing designs that thereby break loose real housing trends. This was true of funky, colorful Small Form Factor -Cube Prodigy and that will be so also in the latest scion of the BitFenix Case for compact computer: the Pandora. It is a much seriöseres tower chassis for Micro-ATX and Mini-ITX motherboards, but which nevertheless represents the exact opposite of monotony, boredom and smugness, namely pure multimedia elegance!

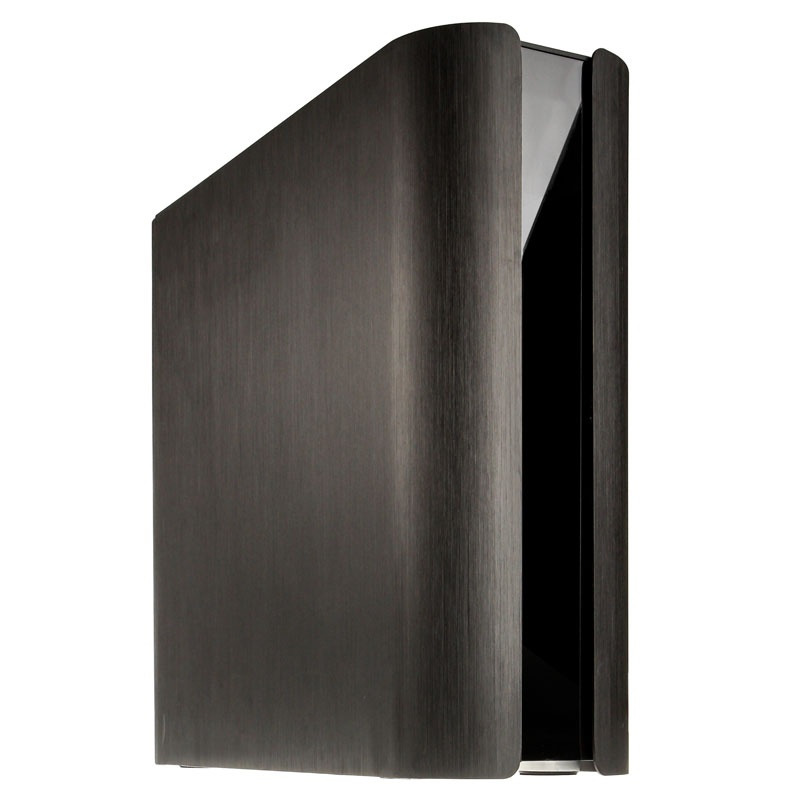

Incentive and self-claim it was the Pandora obviously, to make a compact body, which is not easily integrated as a multimedia center only in existing hi-fi landscapes chic living room, but actually enriched. With a black or silver BitFenix Pandora on the Lowboard - or next to the desk - each room is tastefully furnished yet fashionable, yet elegant, yet unmistakable. The designers this is primarily achieved through the two side panels, each consisting of a piece of aluminum - are made and their surface was brushed vertically - - here in black and one optical and tactile delight.
Submit Time and again one can only wonder how it manages BitFenix so unique and yet appealing designs that thereby break loose real housing trends. This was true of funky, colorful Small Form Factor -Cube Prodigy and that will be so also in the latest scion of the BitFenix Case for compact computer: the Pandora. It is a much seriöseres tower chassis for Micro-ATX and Mini-ITX motherbo...
Submit Time and again one can only wonder how it manages BitFenix so unique and yet appealing designs that thereby break loose real housing trends. This was true of funky, colorful Small Form Factor -Cube Prodigy and that will be so also in the latest scion of the BitFenix Case for compact computer: the Pandora. It is a much seriöseres tower chassis for Micro-ATX and Mini-ITX motherbo...
No products found

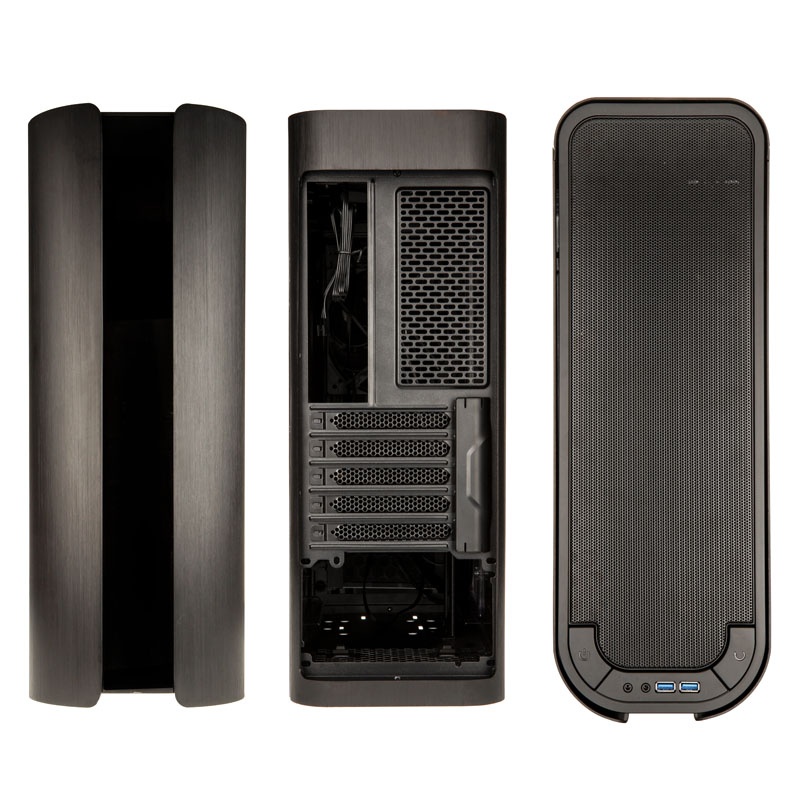

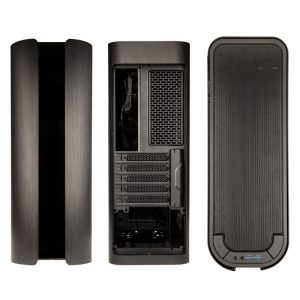

The incidentally tools removable side parts extend into the front area and found the transition a flattering round eyes. The actual front surface of black glossy plastic contrasts wonderfully with the roughened Alloy behind and acts like a protective shield black half hidden. Unobtrusive of the I / O area with two USB 3.0 ports in the front cover area is recessed, behind which extends a black hole grid surface. At the front BitFenix dispensed with in this lower-cost core variant on the ICON LCD screen and the normal version equips the front instead with a silver aluminum logo.
The interior of only just over 5 kg light BitFenix Pandora turns out to be pleasantly spacious, next to the PCB in the form factor Mini-ITX or Micro-ATX can also efficient power supplies are housed (up to 180 mm) and pixel cars to 35 cm in length. For an active stream of air, the two pre-placed and protected with removable dust filters 120mm Spectre fans are responsible, one in the top and one at the front, where one could still come under further. But here is also quite wonderful a heat exchanger in the 240-mm dual format be used, as he is about to be found in high-performance all-in-one water cooling systems.
An optional removable Cable Management Bracket in the front area of the soil, the power supply cable leads under the Airflow through and in addition to the improvement of cooling and Aufgeräumheit the additional purpose of being able to carry on its outer side a 2.5-inch SSD. Another 2.5-or 3.5-inch drive can be screwed directly underneath in the ground and the front cover there is another hard drive slot, while the front motherboard tray comes with an additional 2.5-inch Drive . Thus, the drive division is unusual, but quite effective and more than adequate for a multimedia PC.
Usability has BitFenix total can be very high start at Pandora, the dust filters keep magnetically and can be removed accordingly easily, the aluminum side panels are also tool-less removable and the thumbscrews of the five PCI slots are in favor of a closed look behind the left hidden side panel, so you do not immediately zoom comes with your fingers, but shall BitFenix the housings with an Allen wrench, with which you can loosen the screws comfortable. In addition, the Pandora is pre-provisioned with mainboard spacers and has a large cutout in the tray for easy cooler change. The BitFenix Pandora Core is both outside and inside solid!
Technical Details:
Dimensions: 160 x 420 x 465 mm (W x H x D)
Weight: 5.25 kg
Material: steel (Body), aluminum (side panels)
Color: Black
Form Factor: Micro-ATX, Mini-ITX
Fan total possible:
2x 120 mm (front)
1x 120 mm (cover)
Thereof pre-installed:
1x 120 mm (front)
1x 120 mm (rear)
Radiator Mountings (partial waiver of HDD and / or fan slots):
1x max. 240 mm (front)
Filters: front cover, AC adapter (removable)
Drive bays:
2x 3.5 inch (internal)
3x 2.5 inch (internal, 1x instead of 3.5 inches)
Power supply: 1x Standard ATX (optional, max 180 mm length.)
Expansion Slots: 5
I / O panel:
2x USB 3.0 (internal connection)
1x per Audio In / Out
Maximum video card length: 350 mm
Maximum CPU cooler height: 145 mm
Maximum PSU length: 180 mm
