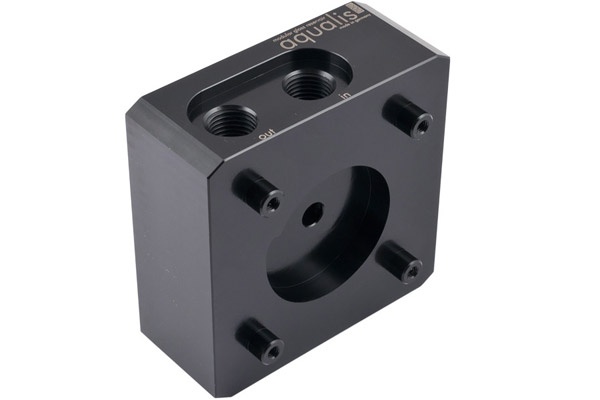

Aquacomputer pump adaptor for DDC pumps, compatible with aqualis, G1/4

The adapter can either be used as a stand-alone pump adapter or in combination with a compatible aqualis series reservoir. A mounting bracket made from stainless steel is included in delivery, an optional decoupling set can also be used (not included in delivery). For mounting a DDC series pump, suitable screws are provided.

When used without an aqualis series reservoir, G1/4 inlet threads for fittings can be used on the top and side of the pump adapter, the pressure side is always connected to a G1/4 port on the side. The unused inlet thread can be sealed with a G1/4 sealing screw supplied with the pump adapter.

When used with an aqualis series reservoir (art. no. 45324 or 45325), pump adapter and reservoir form a virtually seamless unit. The sockets at the base of the reservoir slide into form-fitting receptables of the pump adapter and the gaskets on the sockets establish a watertight seal. When used with a reservoir, the threads on the side of the pump adapter must be used to connect the water loop. Please note that for use with aqualis series reservoirs, another version of this pump adapter with integrated fill level sensor (art. no. 52228) is also available. The adapter sold here (art. no. 52226) does not feature a fill level sensor!

Scope of delivery:
Pump adapter
Stainless steel bracket
Mounting material
Sealing screw G1/4
