Below is the original description for this product, any reference to warranty is to be ignored. Warranty for this item is 90 days as with all B Grade items.
B Grade items may have been used, have damaged packaging, missing accessories or a combination of these (Motherboards may be missing I/O shields).
Some items may have scuff marks or slight scratches but should otherwise be an operable product.
Below is the original description for this product, any reference to warranty is to be ignored. Warranty for this item is 90 days as with all B Grade items.
B Grade items may have been used, have damaged packaging, missing accessories or a combination of these (Motherboards may be missing I/O shields).
Some items may have scuff marks or slight scratches but should otherwise be an operable product.
Below is the original description for this product, any reference to warranty is to be ignored. Warranty for this item is 90 days as with all B Grade items.
B Grade items may have been used, have damaged packaging, missing accessories or a combination of these (Motherboards may be missing I/O shields).
Some items may have scuff marks or slight scratches but should otherwise be an operable product.
No products found

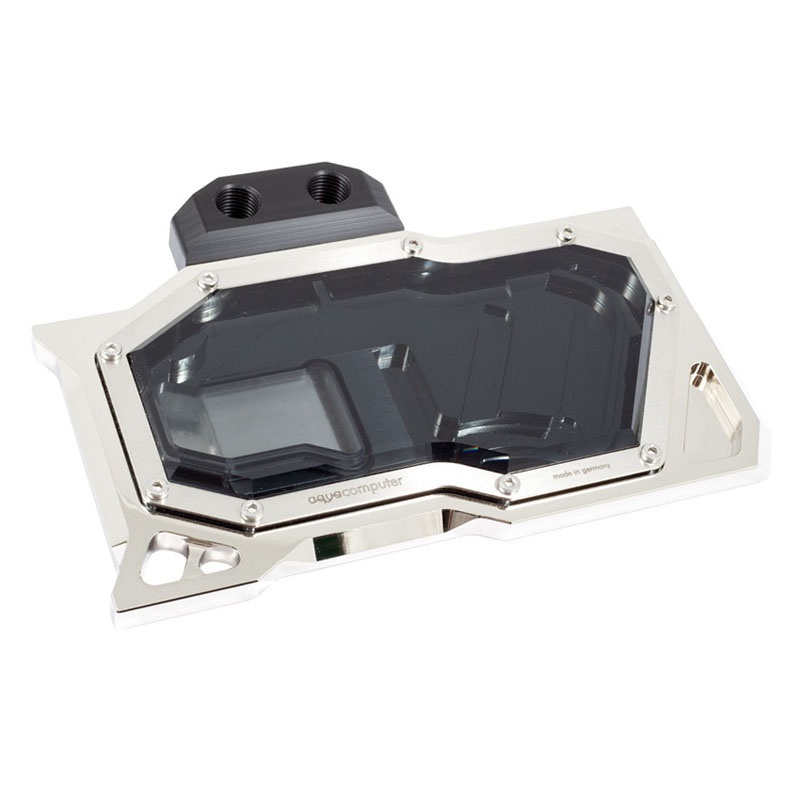

During the design process, high cooling performance and a low resistance were defined as the main design goals. The kryographics Pascal is the first Aqua Computer water block to use a jetplate for the GPU area. All relevant components of the graphics card are in immediate proximity to the coolant channels inside the water block. A bypass channel reduces flow resistance by splitting the coolant flow to different areas of the water block after the coolant has passed the GPU area.
All mounting threads are equipped with nickel plated brass spacers for easy installation and to prevent twisting the graphics card. The areas contacting the GPU and RAM modules are polished for excellent heat transfer. For the voltage regulators, a thermal pad with high thermal conductivity is included.

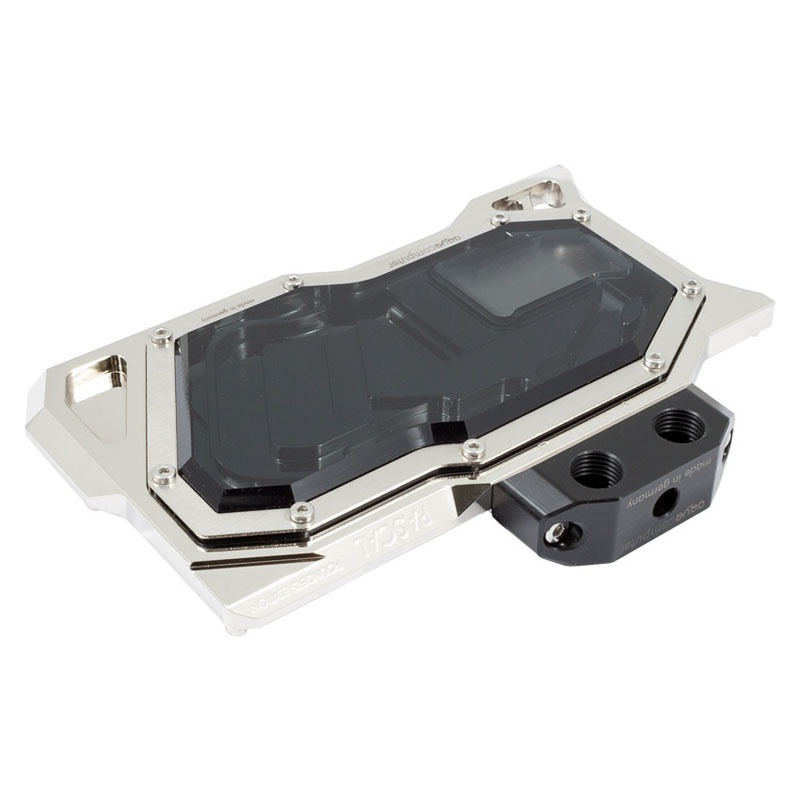

The kryoconnect water block series features a delrin connection terminal that has a significantly reduced flow resistance compared to the previous aquagraFX series. The terminal is fastened to the water block by three screws and has G1/4 inlet and outlet ports on each side for flexible installation. Two sealing screws are supplied to seal the unused connection threads. The terminal can be replaced with kryoconnect kits for SLI configurations (art. no. 23551, 23552 or 23553, not included in delivery).
Materials:
Base part: Copper, nickel plated
Top cover: Acrylic glass with stainless steel frame and insert
Terminal: Delrin
Scope of delivery:
Cooler without connectors (screw threads G 1/4)
Mounting material incl. thermally conductive pad
Two sealing plugs for unused connection threads
Hex nut driver size 4 mm for customized screws of the original air cooling unit
