Aquacomputer kryographics Pascal for GTX 1080 and 1070 - Acrylic + Nickel

The problem is exacerbated by its own overclocking because as temperatures can reach critical values. In short: Who wants in Games mode or even when Benchen a low setting and possibly simultaneously will turn the clock screw comes barely past a water cooling. Besides the usual components (radiator, pump, reservoir), a suitable cooler for NVIDIA GTX 1080 or GTX 1070 to course necessary – as ours the German quality manufacturer aquacomputer.

The kryographics thereby dissolves the many years successful and popular aquagraFX- or aquagrATIx from whose merits retains, but has been optimized particularly with respect to the flow behavior. For example, has the new Delrin terminal via a significantly larger cross-section and thus have a lower flow resistance. It is not compatible with the series aquagrATIx / aquagraFX but offers as the old port terminal per two G1 / 4-inch ports on both sides, the unused threaded with the two accompanying locking screws are closed.

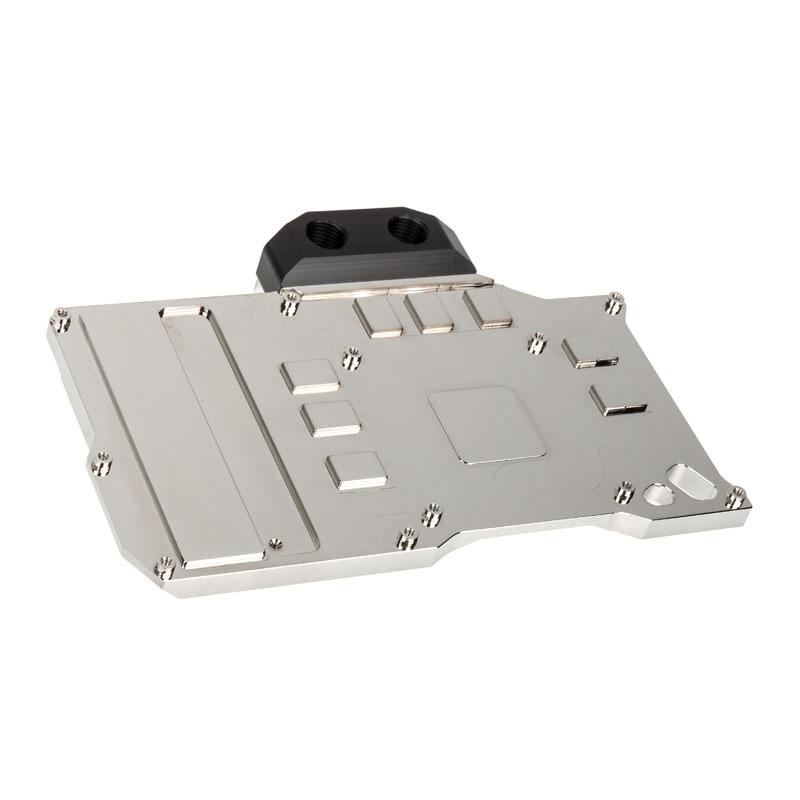

During the actual heatsink kryographics is a full-block design, in which all heat-intensive areas of the graphics card are covered. The high purity and in addition nickel in this release copper base is polished at the contact points to GPU, memory chips and voltage transformers to ensure optimal heat transfer. In addition, an excellent thermal pad included in the field of voltage regulation.

On the other side of the copper base, the water flows through parallel next to the GPU and the RAM and the field of Spannunsgwandler with a high flow rate, which is especially for the ambitious overclocking of not to be underestimated. Directly above the graphics chip, the CNC machined copper plate to a structure of many very small channels, which increases the heat absorbing surface of the GPU clearly.

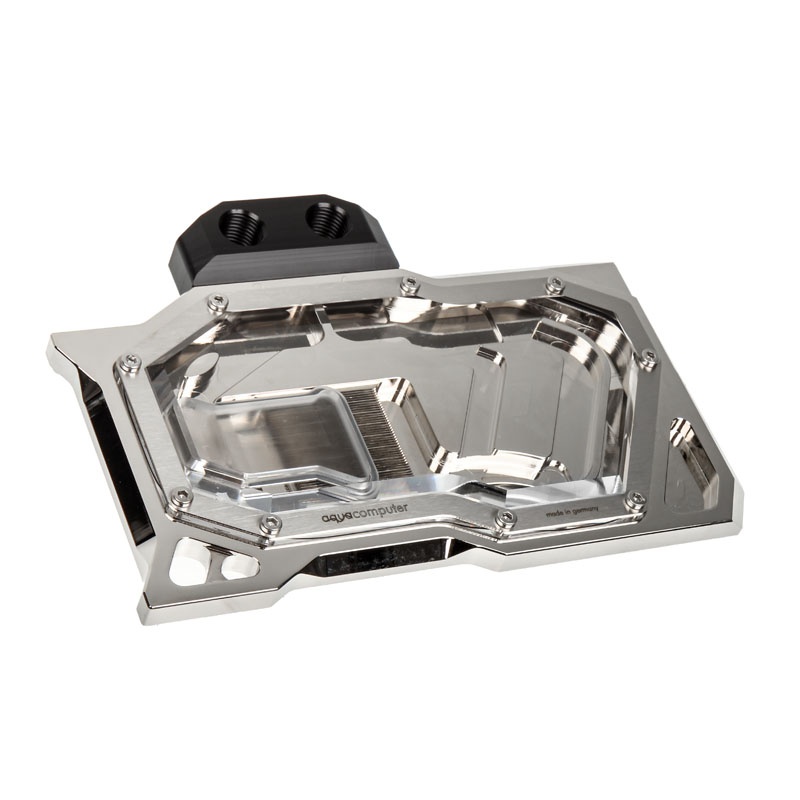

For the cover of kryographics aquacomputer used in this version of clear acrylic, so excited especially by coolant flowing with color additive stir. In addition, the top is set in a stylish stainless steel frame. The water cooler is thanks to the integrated spacer very simple and above all safe to install as before. Due to the elegant, flat design to multiple graphics cards can be easily combined in an SLI combo, for which optional kryoconnect connection kits are required.

Note 1: For integration into the cooling circuit connections required which are not supplied. Thermal paste is also separately acquire, which is necessary to establish contact between cooler and graphics card. In addition, it must be ensured that the cooler exclusively for NVIDIA graphics card of the GeForce GTX 1080 and GTX 1070 is suitable with 8 GB of graphics memory and reference design! The original cooler must be removed before installation, making the manufacturers warranty expires!

Note 2: pictures that show the radiator on a graphics card installed, for illustrative purposes only. The graphics card is not supplied.

Technical details:

    Material: Nickel plated Copper (base), Acrylic (lid), stainless steel (lid frame, backplate), Delrin (connecting terminal)
    Threads: 4x G1 / 4 inches
    Compatibility:
    NVIDIA GeForce GTX 1080 (GP104, 8,192 MB, reference design)
    NVIDIA GeForce GTX 1070 (GP104, 8,192 MB, reference design)
