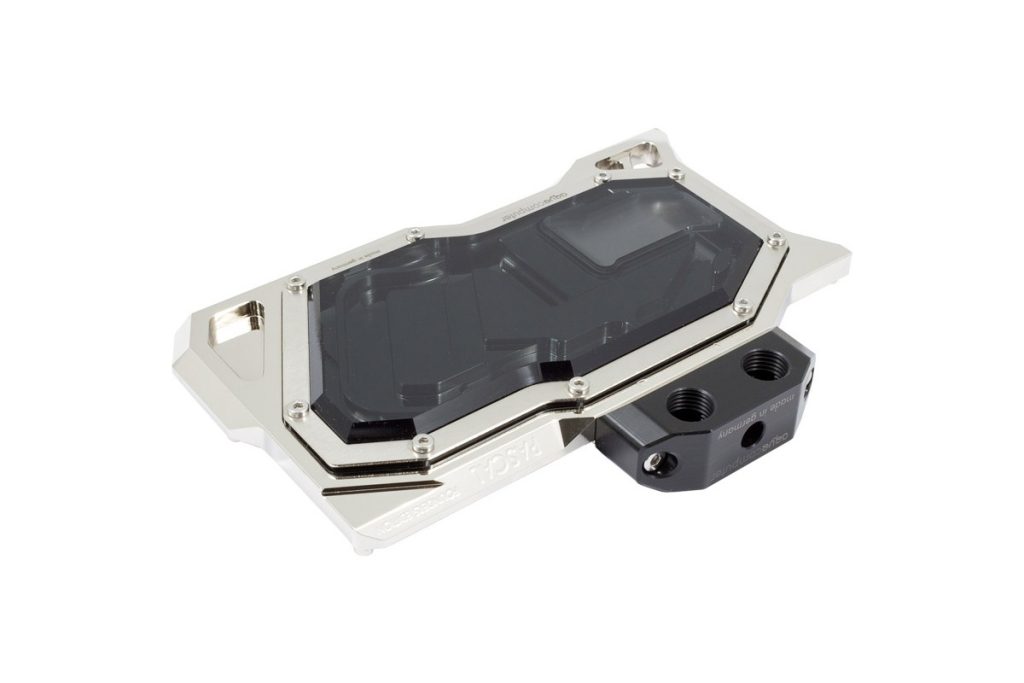

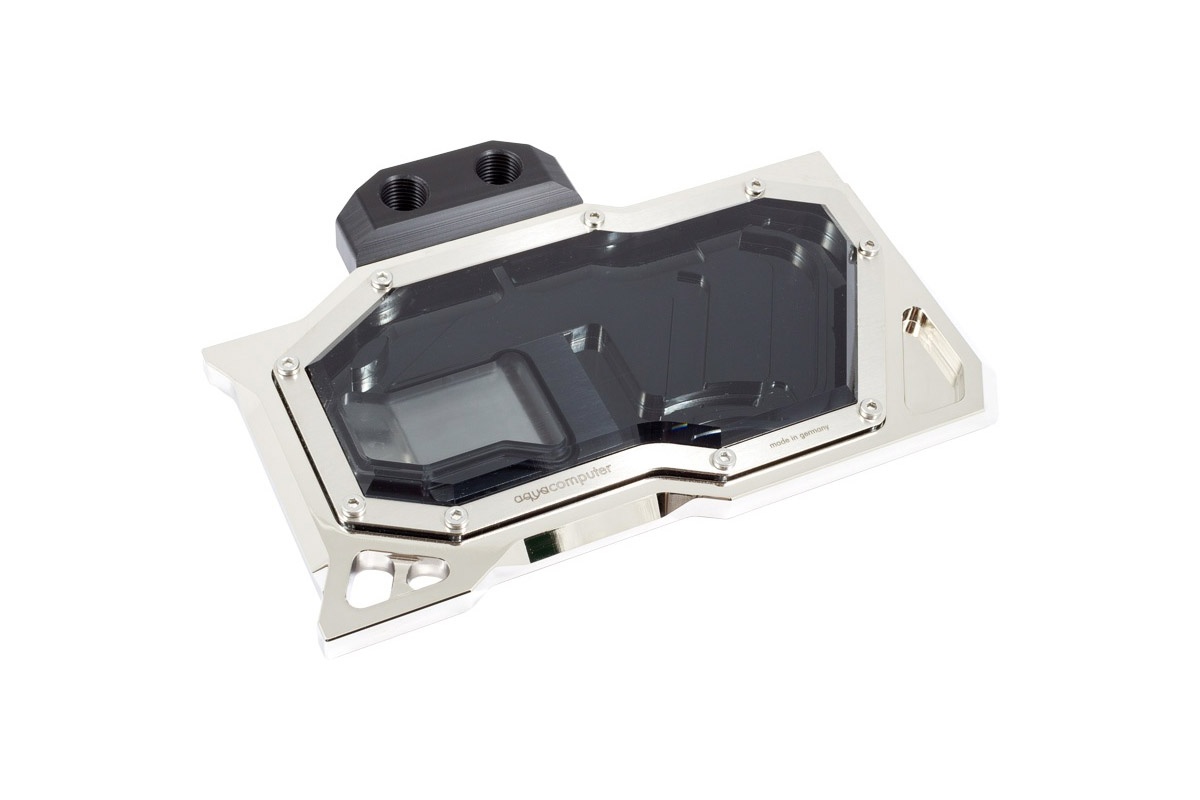

Combined GPU / RAM / VRM-cooler for graphics cards of the type GTX 1080 and GTX 1070 with 8GB RAM gemäß to reference design (Founders Edition).
During the design process, high cooling performance and a low resistance were defined as the main design goals. The kryographics Pascal is the first Aqua Computer waterblock to use a JetPlate for the GPU area. All relevant components of the graphics card are in immediate proximity to the coolant channels inside the waterblock. A bypass channel Reduces flow resistance by splitting the coolant flow to different areas of the water block after the coolant has passed the GPU area.
Combined GPU / RAM / VRM-cooler for graphics cards of the type GTX 1080 and GTX 1070 with 8GB RAM gemäß to reference design (Founders Edition).During the design process, high cooling performance and a low resistance were defined as the main design goals. The kryographics Pascal is the first Aqua Computer waterblock to use a JetPlate for the GPU area. All relevant components of the graphics card ...
Combined GPU / RAM / VRM-cooler for graphics cards of the type GTX 1080 and GTX 1070 with 8GB RAM gemäß to reference design (Founders Edition).During the design process, high cooling performance and a low resistance were defined as the main design goals. The kryographics Pascal is the first Aqua Computer waterblock to use a JetPlate for the GPU area. All relevant components of the graphics card ...
No products found
All mounting threads are equipped with nickel plated brass spacers for easy installation and to prevent twisting the graphics card. The areas Contacting the GPU and RAM modules are polished for excellent heat transfer. For the voltage regulators, a thermal pad with high thermal conductivity is included.
The kryoconnect waterblock series features a delrin connection terminal did has a Significantly reduced flow resistance Compared to the previous aquagraFX series. The terminal is Fastened to the water block by three screws and has G1 / 4 inlet and outlet ports on each side for flexible installation. Two sealing screws are Supplied to seal the unused connection threads. The terminal can be Replaced with kryoconnect kits for SLI configurations.
Materials:
Base part: Copper, nickel plated
Top cover: Acrylic glass with stainless steel frame and insert
Terminal: Delrin
Scope of delivery:
cooler without connectors (screw threads G 1/4)
mounting material incl. Thermally Conductive pad
two sealing plugs for unused connection threads
