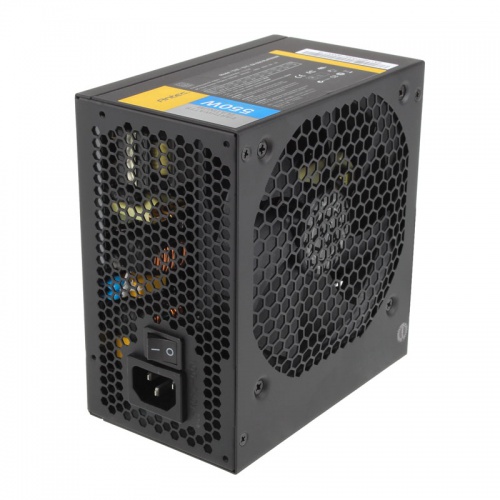

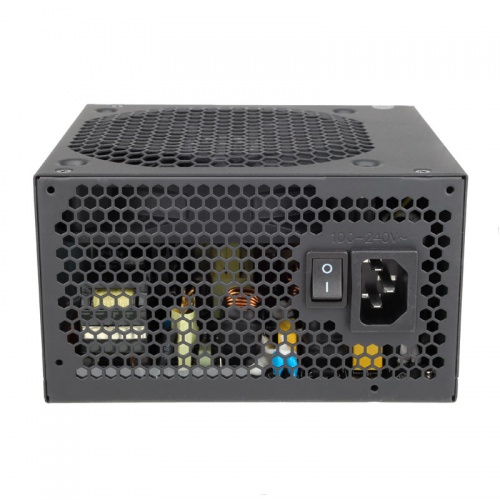

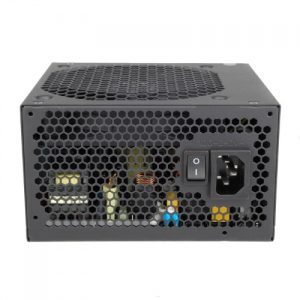

Antec EarthWatts EA-550 Power Supply, 80 PLUS Platinum - 550 Watt

Antec is a true case, but also as power supply specialist. In various model series, the Californians have historically demonstrated their skills, while current source developed, ranging from extraordinary economy to high performance. The buyers of today, of course, both sides now expect – efficient, stable, adequate power – in one product.

This not only saves the user a long-term energy costs and protecting the environment, but he also does something that his computer is pleasantly silent even under load. For where less heat occurs, it must pay the double-ball-bearing 120mm fan even less heat from the PSU case and turns (automatically controlled) correspondingly slower.
The connection of the components is carried out – in addition to 24-pin and 4 +4 pin for the motherboard and processor – two 6 +2 pin PCIe, five SATA, four 4-pin Molex and one floppy connector. Antec on the Platinum EarthWatts power supplies for a period of three years, so this is technically and award-winning product rounded in terms of performance.

Specifications:
  Dimensions: 150 x 86 x 140 mm (W x H x D)
  Fan: 120 mm (automatic control)
  Efficiency: Ø 91.39%, max. 92.54%, 80 PLUS Platinum certification
  Active PFC (0.99)
  Form Factor: ATX12V 2.92 2.31/EPS12V
  Power: 550 W
 +3.3 V: 16A
 +5 V: 16A
 3.3 V +5 V: 95 W
 +12 V1: 30A
 +12 V2: 30A
 +12 V3: 30A
 +12 V4: 30A
 +12 V (combined): 516 W
 -12V: 3.6 W / 0.3 A
 +5 Vsb: 15 W / 3 A
  Ports (fixed):
 1x 24-pin EPS12V
 1x 4 +4 pin ATX12V/EPS12V
 2x 6 +2- pin PCIe
 5x SATA
 4x 4-pin Molex
 1x Floppy
  Warranty: 3 years
