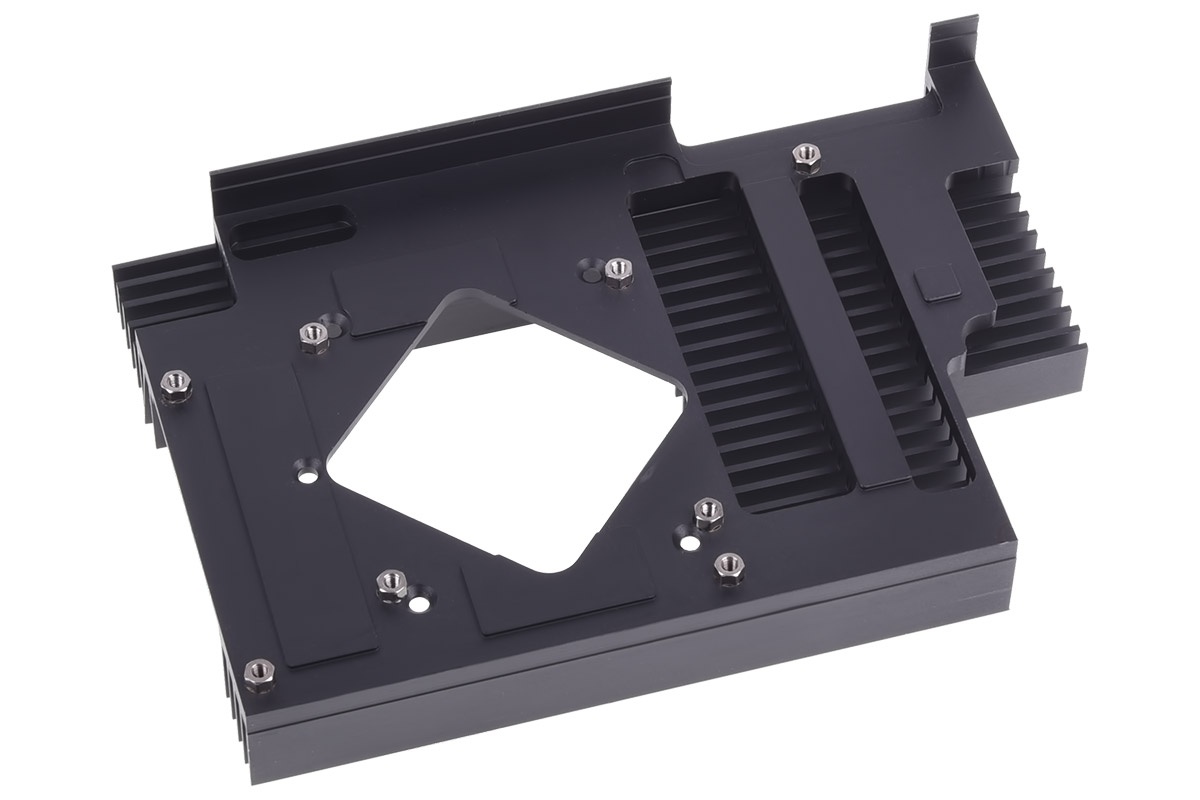

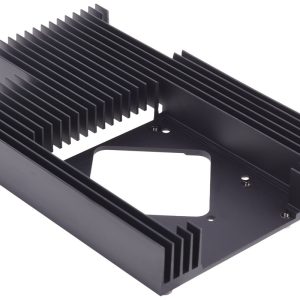

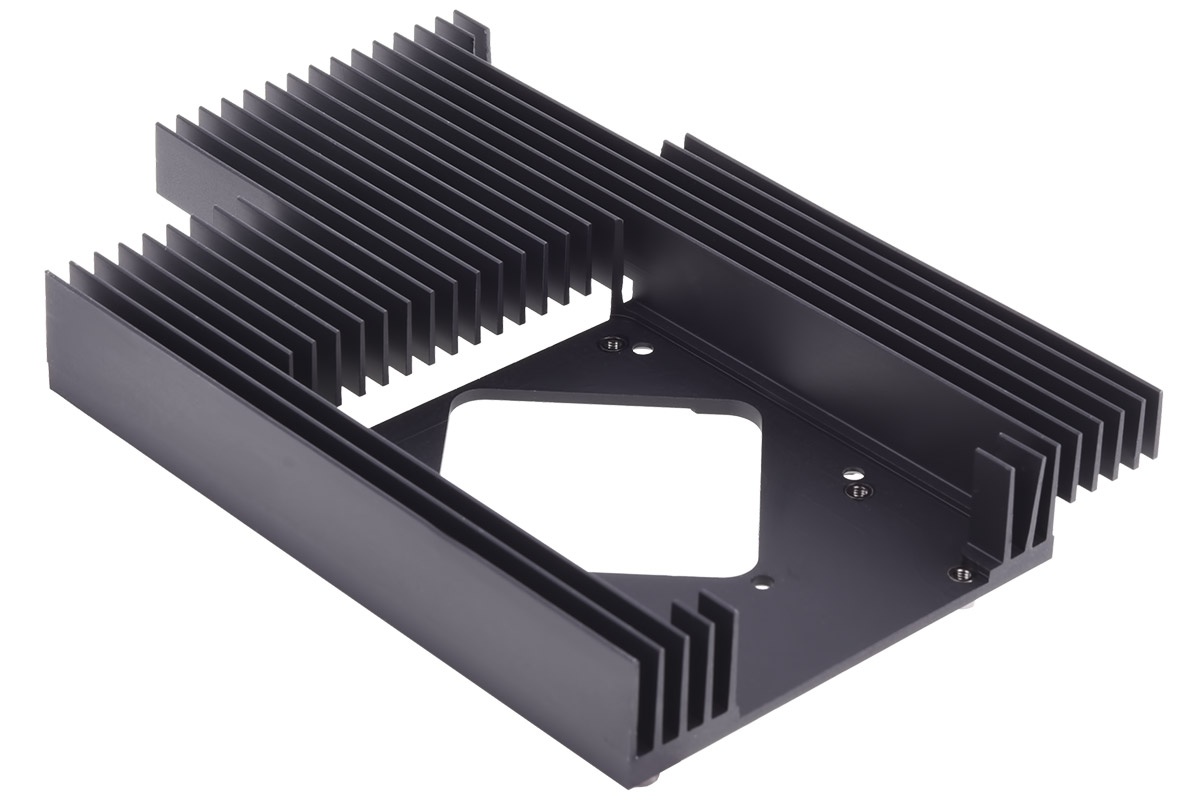

Alphacool Upgrade-Kit for NexXxoS GPX - Nvidia Geforce GTX 1080 M14 - black (without GPX Solo)

Upgrade Kit

If you buy a new graphics card and want to integrate it into your cooling loop, you wont need to buy a new graphics card cooler, which can get pretty expensive. Instead, you can save money with this Alphacool GPX Upgrade Kit. Simply unscrew the GPX cooler from the old cooling fins and mount it on the new cooling fins – that is, on the upgrade kit. For the best results in cooling performance, first remove the old thermal paste from the GPX cooler and apply a new thing layer between the GPX cooler and the new upgrade kit.

Function
The GPU is actively cooled through ingenious new injection technology. All the other chips are sufficiently cooled through the passive cooler in which the GPU water cooler is enclosed.

Cross Slot Structure
The cross slot technology in the base plate, patented in 2004 and used in the Alphacool NexXxoS XP, has been developed further. The fins and channel structure have been refined. The remaining panes are 0.5 x 0.5mm in size and 2.5mm tall. This enables a very large and fast rate of heat transfer from the copper to the coolant.

SLI Operation
Through the outside-facing inlet and outlet, this cooler can be used in SLI configurations with little difficulty. This way, up to four graphics cards can be connected with the Alphacool GPX SLI Connector.

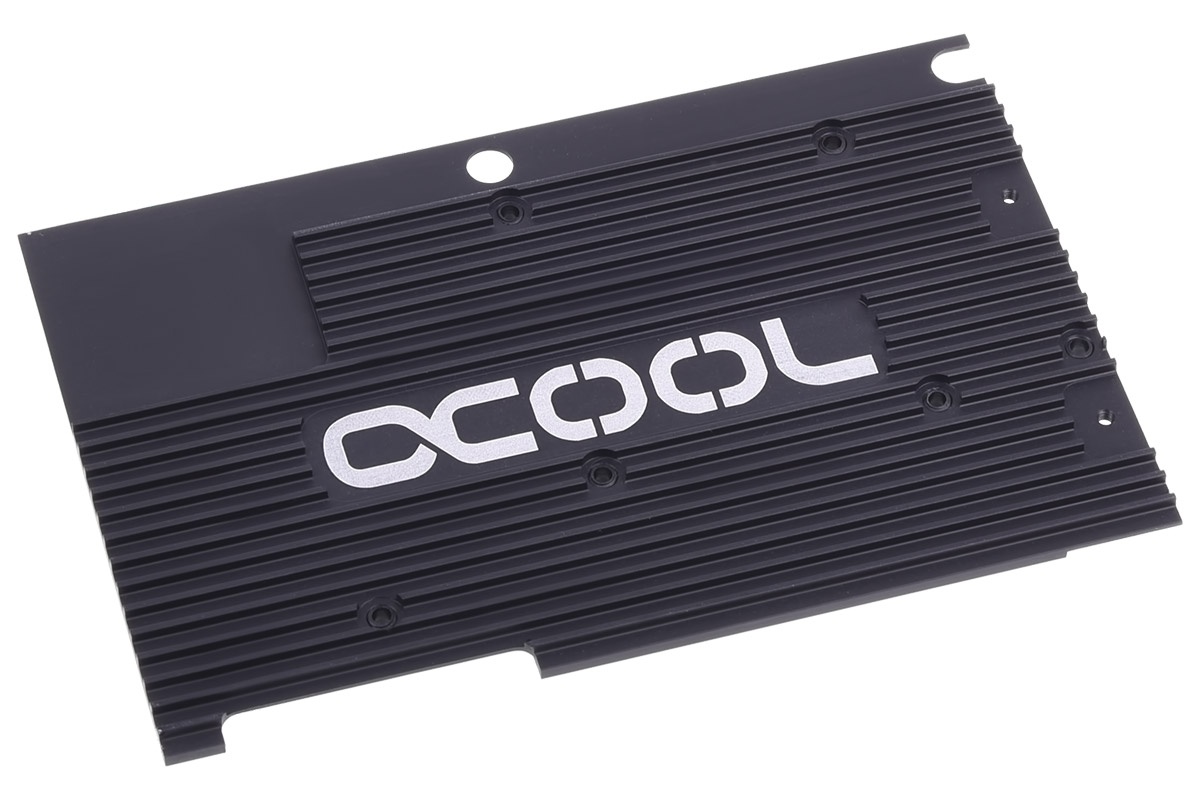

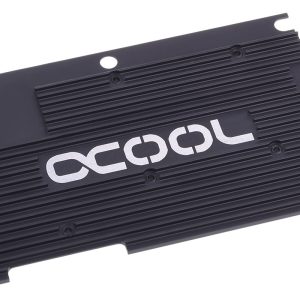

Backplate
Every cooler now includes a backplate which uses little passive cooling fins to cool the graphics card again, as well as giving the graphics card a finished appearance and protecting it at the same time.

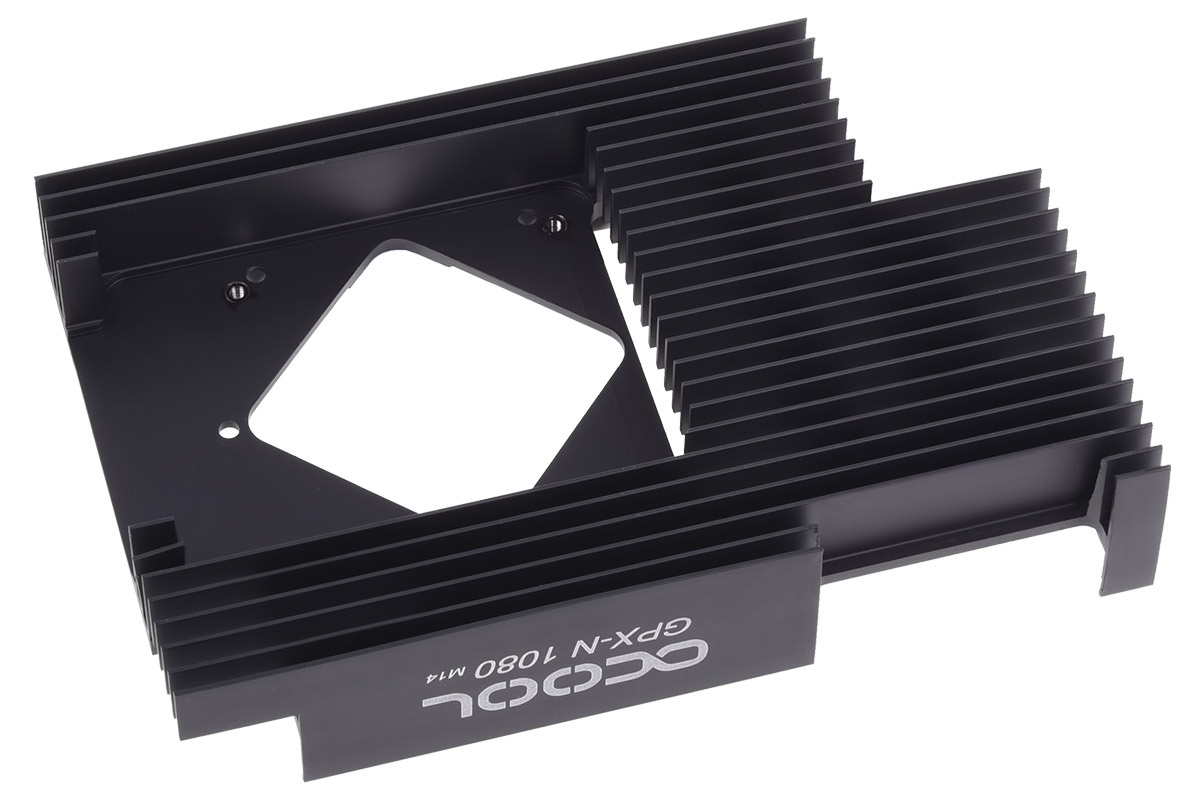

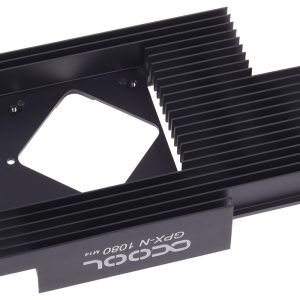

Cooling fins
Passive cooling happens through perfectly balanced, barely 18mm deep cooling fins, which completely cover the remaining parts of the graphics card. Light air circulation in the case means this cooler is in no way inferior to conventional coolers.

Graphics card not included

Scope of Delivery

1x Graphics card cooler
1x Backplate
Thermal pads
Thermal paste
Assembly materials
