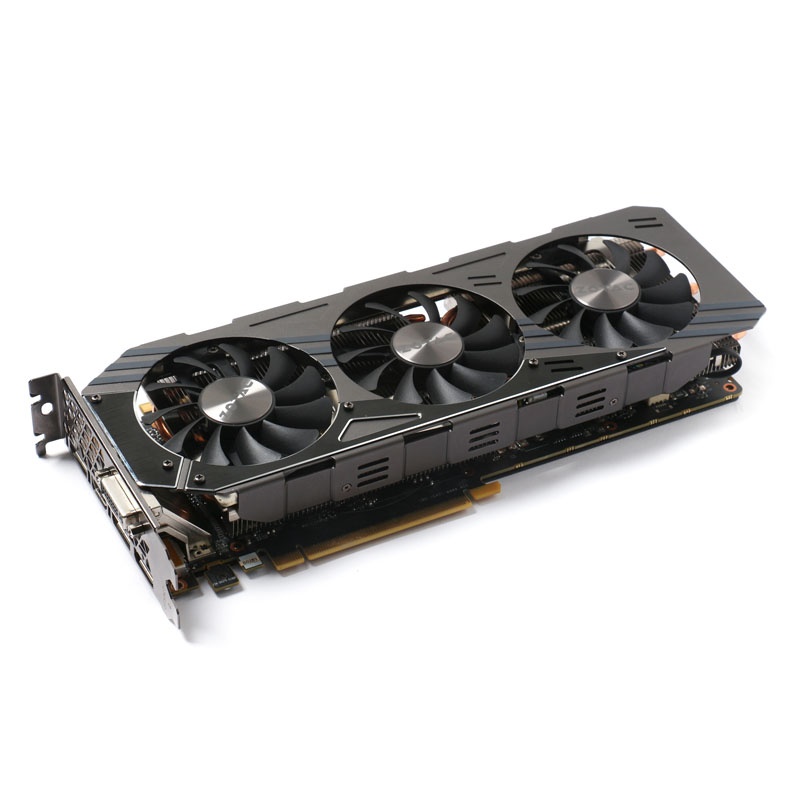

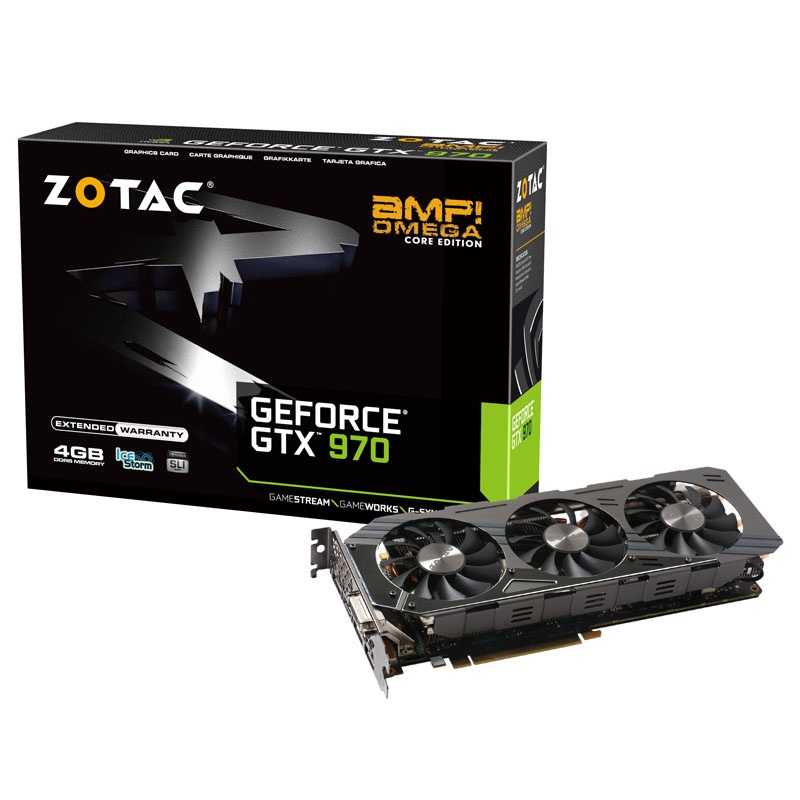

ZOTAC GeForce GTX 970 AMP! Omega Core Edition, 4096 MB GDDR5

The GM204 chip of the ZOTAC GeForce GTX 970 offered here AMP! Omega Core Edition clocked into the basic level with increased factory 1,152 MHz and boosts up to 1,304 MHz when needed and unfolds it – despite significantly lower power consumption than previous generations VGA – an impressive gaming performance! This conjures via DisplayPort 1.2, HDMI 2.0 and DVI even 4K (surround) resolutions smoothly and with high details on (several) Ultra-HD displays.

G-Sync-compatible monitors can be 970 even served by the NVIDIA GeForce GTX way up to 4K resolution, so now the Ultra-HD gaming to the special combination of NVIDIA graphics card and display ensures that unsightly tearing effects of past. NVIDIA provides a new super-resolution feature 4K images are now displayed in detail on Full HD monitors and Game Stream technology ensures that PC games can be streamed to a NVIDIA SHIELD device.

For the strong performance of the ZOTAC GeForce GTX 970 AMP! Omega Core Edition is responsible not only for the Maxwell GPU GM204 with its revised SMX units and 1,664 CUDA cores and the 4096 MB of GDDR5 graphics memory lush operating at 3,505 (effective 7010) MHz and 256 bit is attached. The power of the GeForce GTX 970 takes place in this ZOTAC model over two 6-pin PCI Express connector of the power supply, which should be able to apply at least 500 watts of power.

This NVIDIA GPU Boost 2.0 can fully grasp, it is important that the electronics of the map as cool as possible, so ZOTAC relies on its own IceStorm -Kühlerdesign with multiple heatpipes, a large cooling block of aluminum fins and three large axial fans that ensure you always have enough fresh air is available to cool the GPU, voltage transformer, RAM and co. In addition, the PCB is stabilized by a backplate.

In addition to their high gaming capability with low power consumption, the GeForce GTX 970 excited by many other advanced features, such as Adaptive Vertical Sync, the image enhancement modes FXAA and TXAA, support for PCI Express 3.0 and DirectX 12, NVENC, VXGI or NVIDIA Shadow Play. Of course, old acquaintances such as not missing the opportunity to GPU PhysX, 3D Vision and surround.

With the latest NVIDIA drivers, its still experience with GeForce GEFORCE EXPERIENCE! The ingenious tool is integrated directly into the graphics driver, enabling both Potty Driver Updates also perfect settings for each computer on every game! Given the huge database is queried in NVIDIAs cloud data center in various configurations, so that can be a mouse click make the optimal settings.

In order to realize the full potential of the card in the future, new drivers from NVIDIA or ZOTAC should be downloaded and installed at regular intervals.

Technical details:

     Dimensions: 280 x 111.15 mm (W x D)
     Height: 2 slot
     GPU: NVIDIA GeForce GTX 970
     Type: Maxwell GM204
     Manufacturing process: 28 nm
     GPU clock speed: 1152 MHz
     Boost Clock: 1.304 MHz
     Shader units (CUDA cores): 1,664
     Memory Size: 4096 MB
     Memory clock: 3,505 (7,010) MHz
     Type: GDDR5
     Memory interface: 256-bit
     Slot PCIe x16 (PCIe / PCI 2.x / PCIe 3.0)
     connections:
     3x DisplayPort 1.2
     1x HDMI 2.0 (4K at 60 Hz)
     1x DVI-I (dual link)
     Power supply: 2x 6-pin PCIe
     Recommended power supply capacity: min. 500 Watt
     Features: DirectX 12, OpenGL 4.4, 3D Vision, NVIDIA Surround, tessellation, PhysX, CUDA, NVENC, SMX, GPU Boost 2.0, Adaptive Vertical Sync, SLI, G-Sync, VXGI, Super Resolution, 4K Ultra HD support, 4K Surround NVIDIA Shadow Play, NVIDIA game stream, incl. backplate
     Compatibility (OS): Windows 8.1, 8, 7, Vista
     Manufacturer Warranty: 5 years (registration with the manufacturer required)
