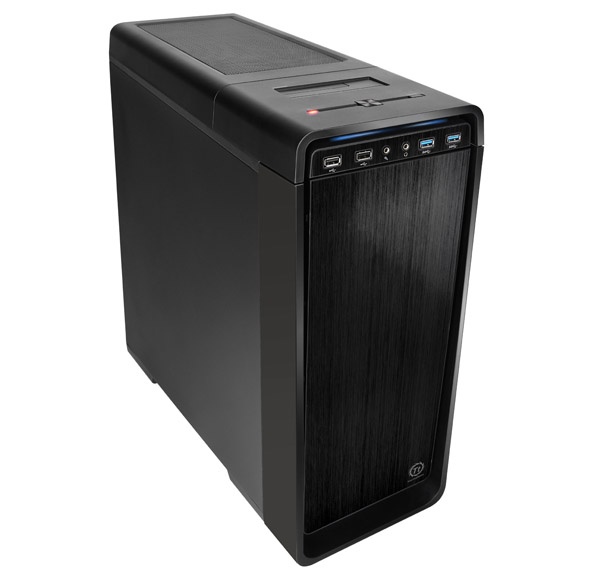

Thermaltake Urban S31 mid-tower chassis
Urban S31 mainstream mid-tower, categorized in Thermaltake chassis latest collection - Urban Series. The Complete Series has a simple and elegant aesthetic, design for users who looks for everything but a flamboyantly appearance.
Simple Design

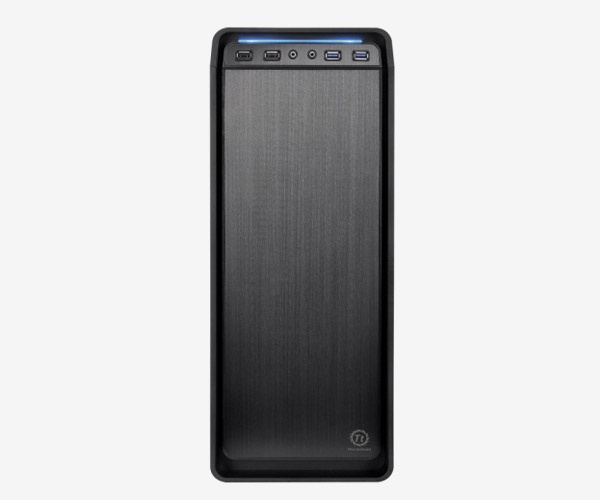

Built with brushed aluminum finish and steel mesh front door panel to mask the extrusive drive devices, not only unify the appearance, but so Provide A simple yet sophisticate aesthetic.
Thermaltake Urban S31 mid-tower chassisUrban S31 mainstream mid-tower, categorized in Thermaltake chassis latest collection - Urban Series. The Complete Series has a simple and elegant aesthetic, design for users who looks for everything but a flamboyantly appearance. Simple DesignBuilt with brushed aluminum finish and steel mesh front door panel to mask the extrusive drive devices, not only...
Thermaltake Urban S31 mid-tower chassisUrban S31 mainstream mid-tower, categorized in Thermaltake chassis latest collection - Urban Series. The Complete Series has a simple and elegant aesthetic, design for users who looks for everything but a flamboyantly appearance. Simple DesignBuilt with brushed aluminum finish and steel mesh front door panel to mask the extrusive drive devices, not only...
No products found
Mobile I / O ports

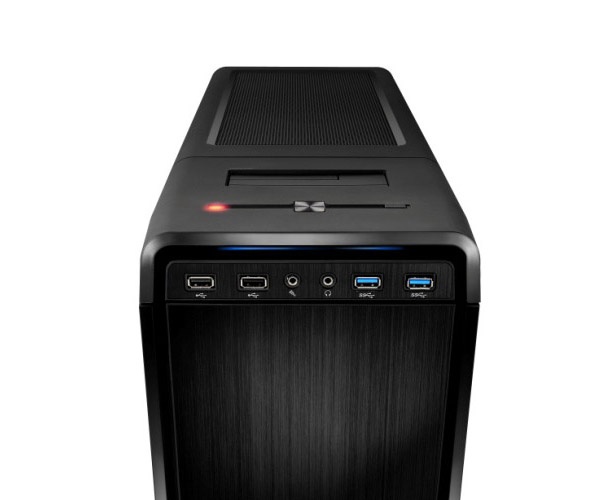

The perforated front-top panel has two Implemented data transfer of latest SuperSpeed USB 3.0 ports along with two USB 2.0 ports, a microphone and headset jacks HD, to grand direct access when needed.
Extreme silent performance
The preinstalled sound-damping Foams for extreme silence on purpose bothside panels of Urban S31 reduce noise and acoustic levels within the chassis.
Easy Hot Swap
Top-mounted 2.5 or 3.5 HDD Docking Station Enables blazing fast file transfer and effortless hot-swap drive replacement design for easy setup or removal of optical drives and HDD.
Innovative tool-less design
The latest tool-less innovation with 5.25 & 3.5 drive bay tool-free design minimized the hassles of installing ODD and HDD devices.
advanced ventilation
Two preinstalled 120mm fans to optimize ventilation system in Urban S31. Plus pre-mounted ventilation hole for more options, users can build up silent ventilation system by Their preference.
High-end Complete System on the go
Enables user to build up a complete high-end solution with ease with 240mm radiator liquid cooling system and extra long graphic card supported to protect users hardware and increase CPUs overclocking potential, mostly importantly delivers outstanding cooling efficiency in the Entire case.
model VP700M1N2N
Enclosure Type Mid Tower
Dimensions (H x W x D) 500 x 206 x 520 mm
(19.7 x 8.1 x 20.5 inches)
Net Weight 7.3kg / 16.1 lb
No Window side panel
Color Exterior & Interior: Black
material SECC
Cooling System Front (intake):
120 x 120 x 25 mm turbo fan (1000rpm, 16dBA)
120 x 120 x 25 mm fan (Optional)
Rear (exhaust):
120 x 120 x 25 mm turbo fan (1000rpm, 16dBA)
Top (exhaust): (Optional)
120 x 120 x 25 mm fan x 2 or 140 x 140 x 25 mm fan
Bottom (intake): (Optional)
120 x 120 x 25 mm fan
Drive Bays – Accessible: 3 x 5.25 , 1 x 3.5 (Converted from one 5.25 drive bay)
– Hidden: 6 x 3.5 or 2.5
– Docking: 1 x 3.5 or 1 x 2.5
Expansion Slots 7
Motherboard 9.6 x 9.6 (Micro ATX), 12 x 9.6 (ATX)
I / O Ports USB 3.0 x 2 x 2 USB 2.0, HD Audio x 1
Power Supply Standard PS2 PSU (Optional)
LCS upgradeable support 1/2 , 3/8, 1/4 water tube
Top: 1 x 120mm x 120mm or 2?
Rear: 1 x 120mm
Others CPU cooler height limitation: 155mm
VGA length limitation: 290mm (with HDD rack)
410mm (without HDD rack)
