Thermaltake Commander FT fan control

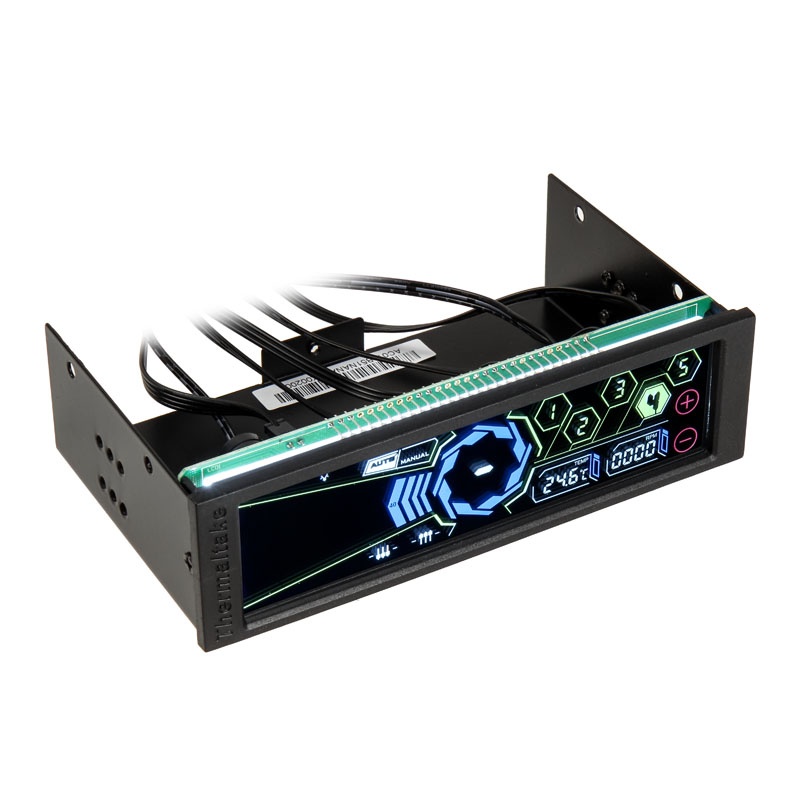

The two lateral elements and the floor are made and made a U-shaped sheet steel with black finish and ensure sufficient stability. The front consists of a black plastic frame with embossed Thermaltake logo on the left side. The large touchscreen display is optimally incorporated into the holder and runs almost the entire surface of the 5.25-inch model. A real eye-catcher for your case!

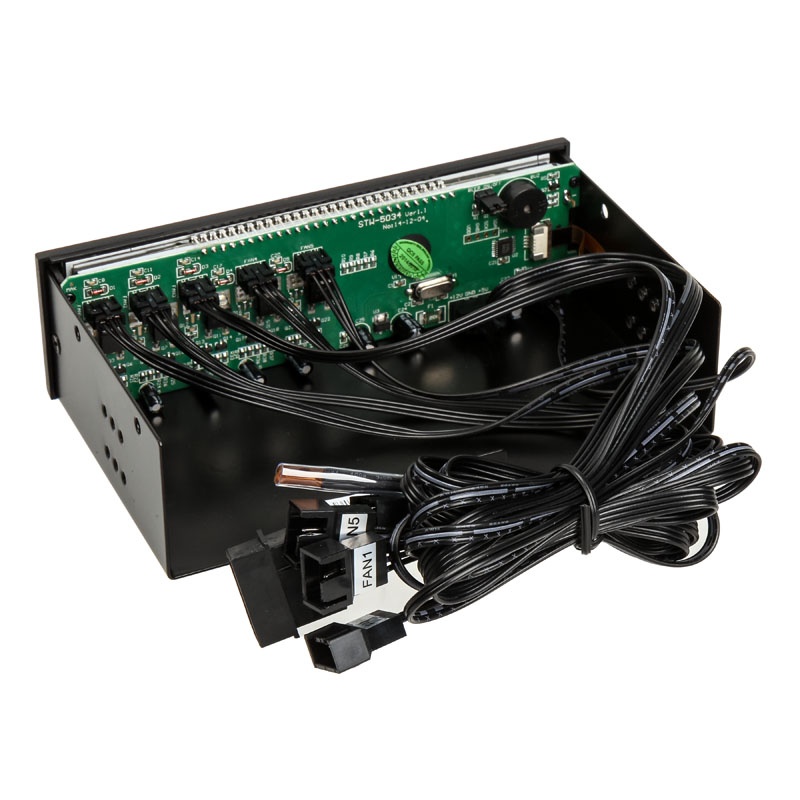

A total of five fans can be connected and controlled via 3-pin. The connections were however housed in a 4-pin socket, which can also be connect 4-pin PWN fan to the fan controller. However, these are then not controlled by the PWM signal, but also as any other fan, via the voltage. In addition, a temperature sensor is included, which can be freely placed and an individual monitoring of heat generation allows to control the cooling effect directly.

The Thermaltake Commander FT can provide at each of the five channels 10 watts for a total of 50 watts. This performance is more than sufficient, able to operate from the Popular Fans models up to three fans at one output can, without the limits of the fan control can be achieved. Power is supplied via 4-pin Molex on AC power.

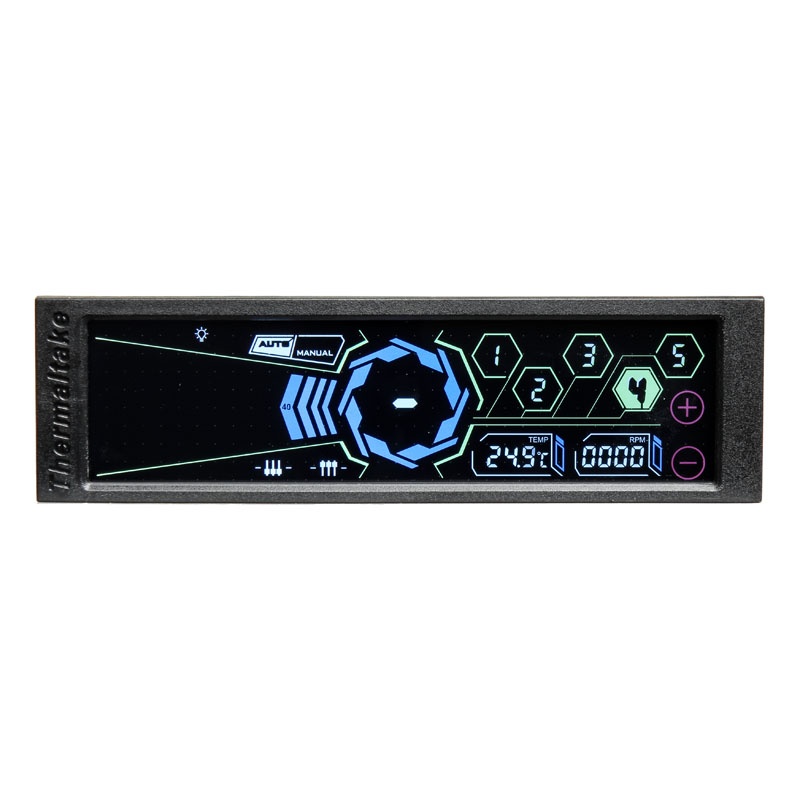

The display is clear and most of the functions are self-explanatory. Over the five numbered boxes can switch between the channels back and forth and are then made for each channel settings. At first glance, evident is the fan speed and the temperature, the former can be adjusted via plus and minus keys to the personal needs. Moreover, brightness, performance or Silence mode, automatic or manual mode, and the control stage of the current channel can be set.

Technical details:

   – Dimensions: 148 x 42 x 88 mm (W x H x D)
   – Slot: 1x 5.25
   – Weight: 300g
   – Material: steel, plastic
   – Color: Black
    Display: Touchscreen
   – Fan connectors: 5x 3-pin (PWM fan also connected, but only adjustable overvoltage)
   – Load capacity: 10 W per
   – Temperature sensors: 1
   – Temperature range: 0 – 90 degrees
   – Power supply: 4-pin Molex
    Scope of supply:
    -Thermaltake Commander FT
   – 4x Screws
   – duct tape
   – assembly Instructions
