Silverstone is expanding the Tundra series of its complete water cooling systems by the SST-TD02 in the slim version. Suitable for almost all modern processors, this complete system reaches a height of only 37 mm, which means it can also be installed in housings with little space and a small form factor.
Silverstone is expanding the Tundra series of its complete water cooling systems by the SST-TD02 in the slim version. Suitable for almost all modern processors, this complete system reaches a height of only 37 mm, which means it can also be installed in housings with little space and a small form factor.
Silverstone is expanding the Tundra series of its complete water cooling systems by the SST-TD02 in the slim version. Suitable for almost all modern processors, this complete system reaches a height of only 37 mm, which means it can also be installed in housings with little space and a small form factor.
No products found

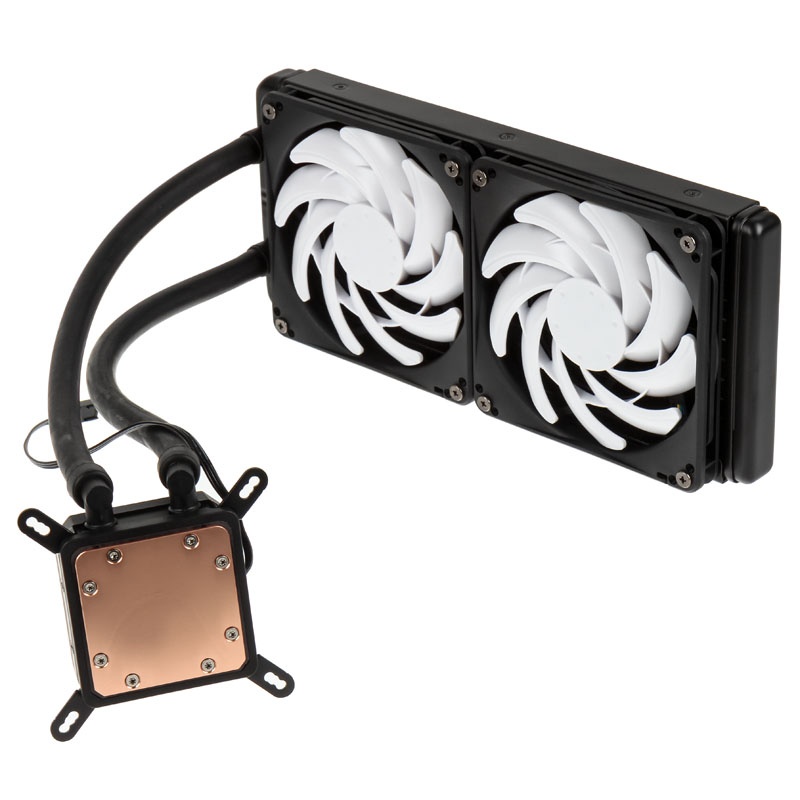

The 240-radiator and the two 120-mm fans provide enough power and look also chic. The black basic design is only interrupted by the white fan blades and the white Silverstone logo on the water block.

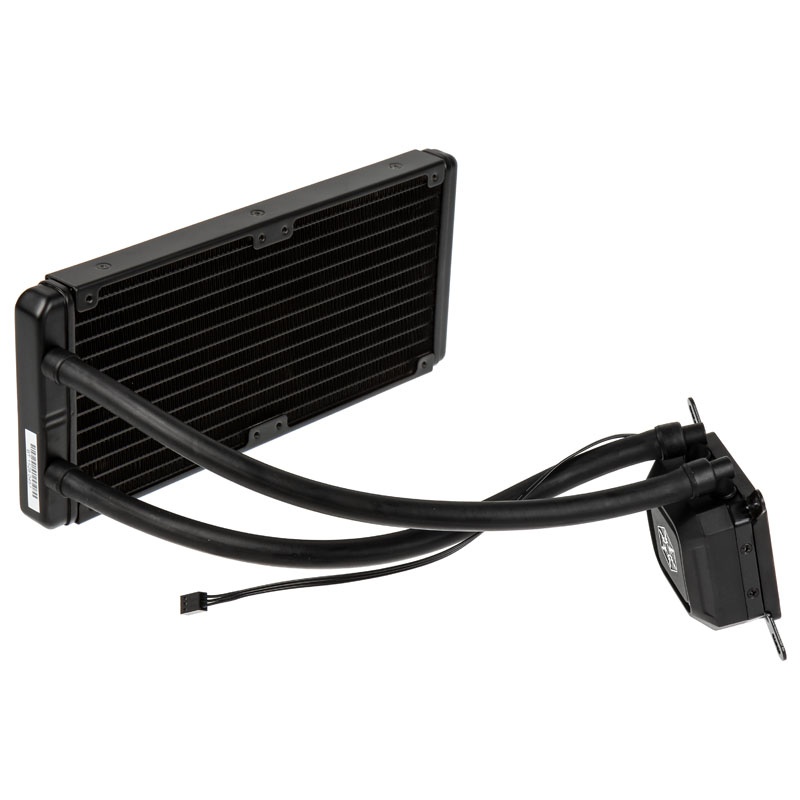

With a total height of 37 millimeters, the Radiator + fan combination is extremely space-saving and can also be installed in housings with extremely little space. Despite the compact size, Silverstone has not missed high-end features from other liquid cooling models in the SST-TD02-Slim-V2, and therefore offers a perfect solution with excellent price / performance ratio for small PC systems.
A white 120-mm fan can be controlled by automatic PWM control between 800 and 2,200 rpm. At max. 27.4 db (A), an airflow of up to 60.9 m³ / h is achieved. According to the manufacturer, a profiled lamella design is supposed to increase the heat transfer by 40 percent compared to competing products.
The installation is greatly simplified by the aluminum clips and the steel backplate. The bottom plate thus does not have any screw holes, which results in a higher cooling capacity as a result of the increased contact area according to the manufacturer.
The complete cooling system is completely maintenance-free. A refilling is not necessary.
Technical details:
Radiator dimensions: 273 x 120 x 22 mm (L x W x H)
Radiator dimensions (with fan): 273 x 120 x 37 mm (L x W x H)
Material: aluminum, copper, plastic, rubber (hoses)
Weight: 0.695 kg
Fan: 2x 120 mm (800 – 2,200 rpm, 16,5 – 27,4 dB (A), PWM-controlled, 22,25 – 60,9 m³ / h)
Connection: 4-pin PWM
Hose length: 31 cm
Static pressure: 0.31 – 1.84 mm H 2 O
Voltage: 12 V (fan, pump)
Current Rating: 0.02 – 0.15 A (Fan); 0.28 A (pump)
Compatibility:
Intel Socket LGA 775 / 115x / 1366/2011/2011-v3
AMD socket AM2 / AM3 / AM / FM1 / FM2
