External drive bays
The Value of models VS3-ATX case series have three bays for optical drives and an externally accessible 3.5 drive bay for as card reader, fan controller or hub.

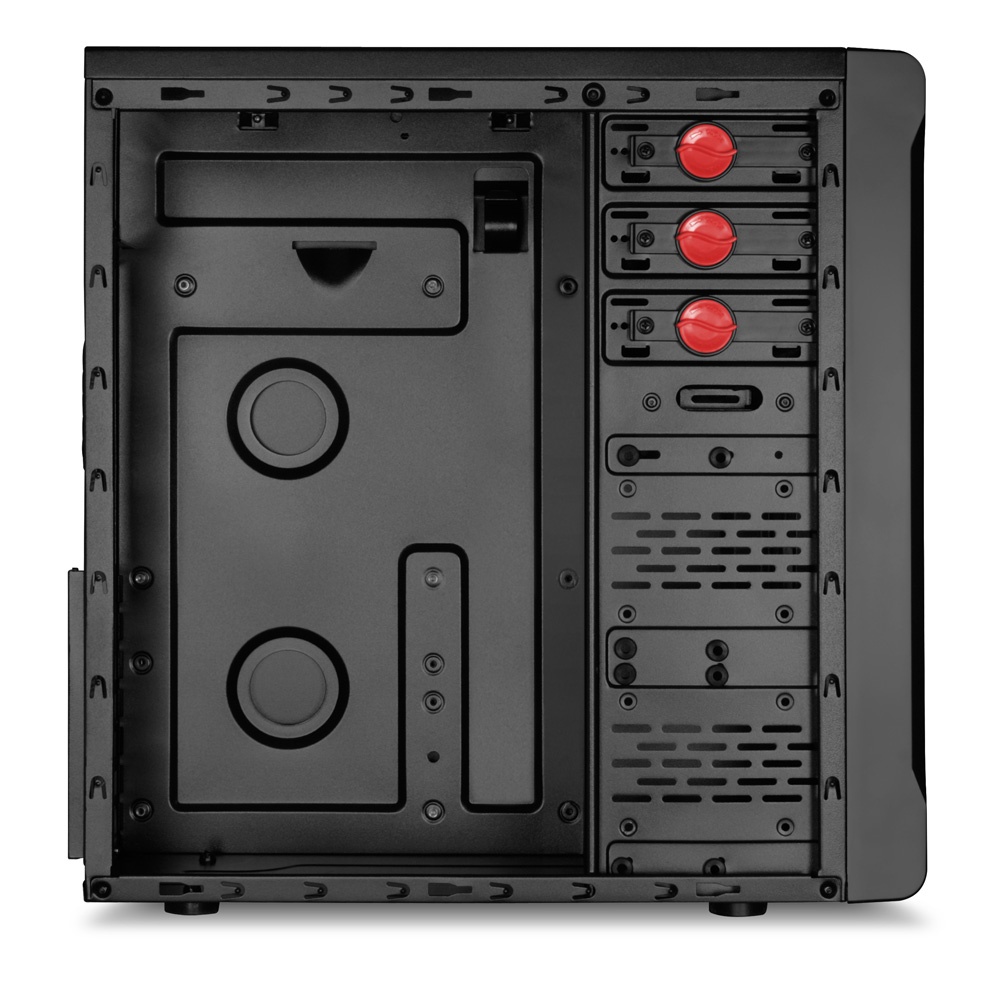

Internal mounting area
In an internal mounting area can be either two 3.5 hard drives and one 2.5 HDD / SSD or alternatively a 3.5 hard drive and two 2.5 HDDs / SSDs block.
Here there are two mounting options are in vertical alignment on the side panel of the drive cage while a standard 3.5 -Festplattenschacht is in a horizontal position available.
External drive baysThe Value of models VS3-ATX case series have three bays for optical drives and an externally accessible 3.5 drive bay for as card reader, fan controller or hub.Internal mounting areaIn an internal mounting area can be either two 3.5 hard drives and one 2.5 HDD / SSD or alternatively a 3.5 hard drive and two 2.5 HDDs / SSDs block.Here there are two mounting options are in ve...
External drive baysThe Value of models VS3-ATX case series have three bays for optical drives and an externally accessible 3.5 drive bay for as card reader, fan controller or hub.Internal mounting areaIn an internal mounting area can be either two 3.5 hard drives and one 2.5 HDD / SSD or alternatively a 3.5 hard drive and two 2.5 HDDs / SSDs block.Here there are two mounting options are in ve...
No products found
Long VGA cards
This division of mounting options, the option that results in graphics cards with a maximum length of up to 35 cm in the otherwise quite compact housing held use.
Fan configuration
The internal components are cooled by a pre-installed 120 mm LED fan in the front of the case. More fan can obstruct the side panel and the rear of the housing to increase air flow inside on.

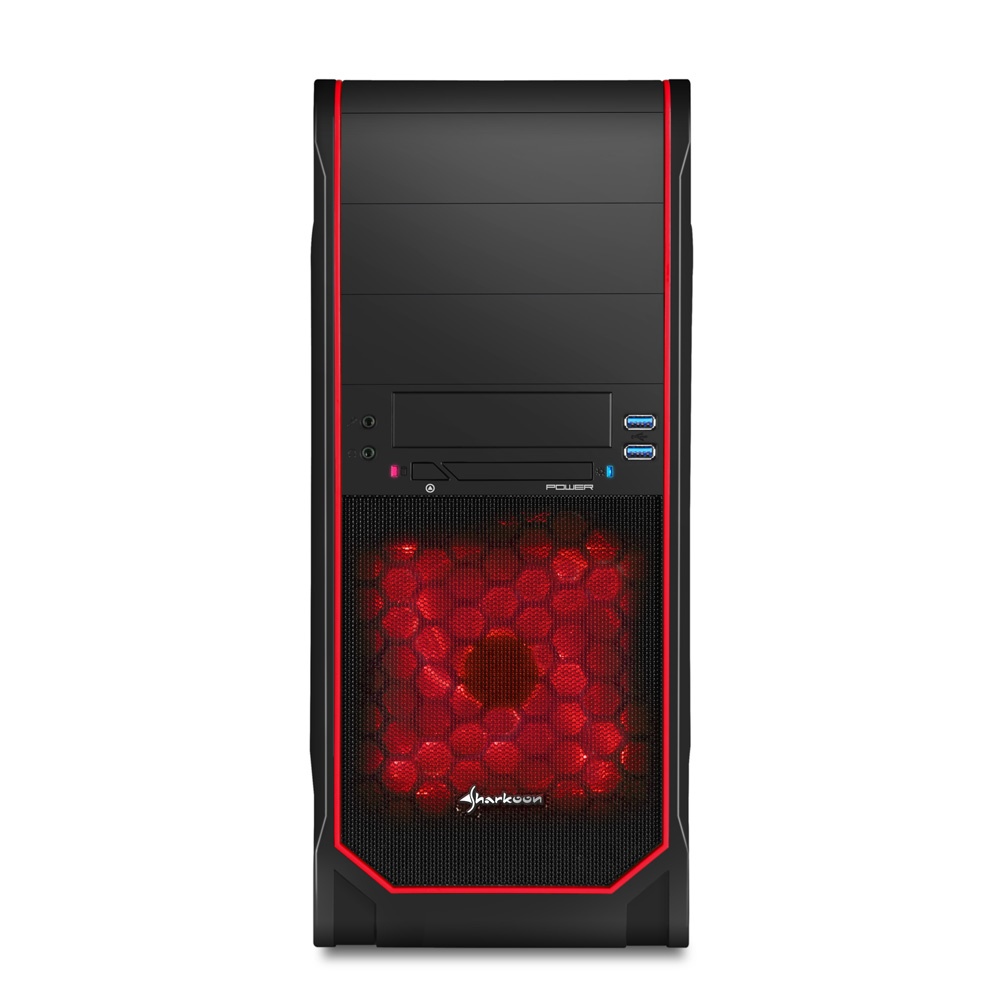

Front I / O
The VS3 value housing has an overhead power supply bracket and a front I / O with two USB 3.0 ports, a microphone and a headphone jack.
The two USB3.0 ports are connected via a 19-pin motherboard connector with just that and offer an alternative USB2.0 connector to provide backward compatibility with older motherboards.
color versions
The case is available in black with chrome-colored, green or red inserts. The front fan (although in the chrome version in blue) lights up accordingly.
features:
ATX case
3x 5.25 drive bays (external)
1x 3.5 drive bay (External)
Internal mounting area for 2x 3.5 – & 1x 2.5 HDDs / SSDs or 1x 3.5 – & 2x 2,5 HDDs / SSDs
Front I / O: 2x USB3.0, 2x Audio
7 slots for expansion cards
Mesh front panel
Quick fasteners for optical drives
Decoupled Mount for 3.5 HDDs
interior painting
Dimensions: 427 x 190 x 420 mm (L x W x H)
Weight: ~ 4 kg
Fan configuration:
Front panel: 1x 120mm LED fan (pre-installed)
Side panel: 1x 120 or 140 mm fan (optional)
Back: 1x 80- or 92-mm fan (optional)
Color options:
Black housing, silver and blue fan application
Black housing, green and application of green fan
Black housing, red Application and red fan
compatibility:
Max. Length graphics card 35 cm
Max. Height CPU Cooler 15.5 cm
Max. Length 23.5 cm Power Supply
Accessories:
6x Quick fasteners for optical drives (pre-installed)
9x mainboard spacers (6x preinstalled)
6x screws for PSU mounting / Expansion Card
8x long coarse thread screws for 3.5 HDDs
8x coarse thread screws
10x short fine thread screws for 2.5 HDDs / SSDs
13x long fine thread screws
1x speaker
1x Installation Guide
