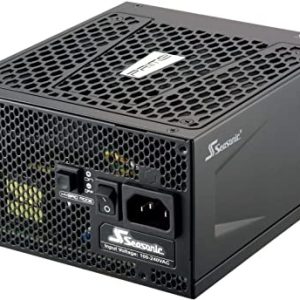

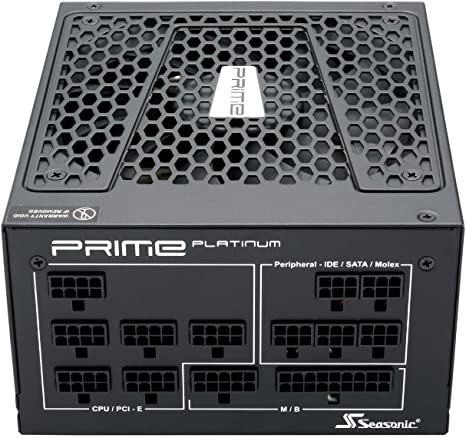

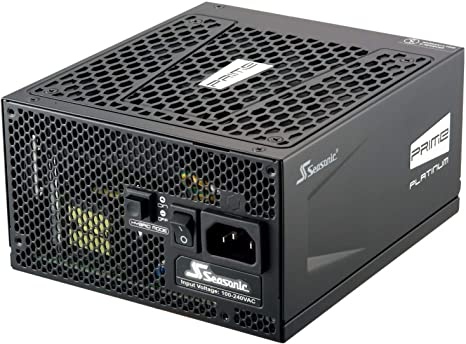

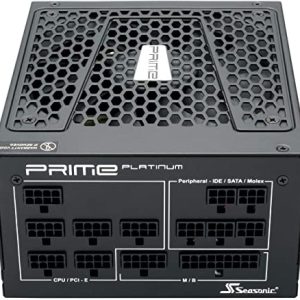

Seasonic Prime PX 1300

– ATX 12 V
– Fully Modular
– 80 PLUS Platinum Certified
– 12 Years Warranty

Dimensions:
1600 and 1300 W: 210 mm (L) x 150 mm (W) x 86 mm (H)
1000 and 850 W: 170 mm (L) x 150 mm (W) x 86 mm (H)
750 W and 650 W: 140 mm (L) x 150 mm (W) x 86 mm (H)

Pressing on with its One Seasonic Initiative, the PRIME TX, PRIME PX and PRIME GX series became the successors to the Seasonic PRIME and PRIME Ultra series.

The PRIME Series has always demonstrated outstanding performance and have become the epitome of technological excellence and quality through the years. This third generation of PRIME Series rolled out not only with a uniformed naming scheme but also with updated general design and connection cables. As each new model in these PRIME series have their distinctive set of features and specifications, prospective customers will find a streamlined buying guidance through understanding the One Seasonic process.

80 PLUS PLATINUM
The PRIME Platinum Series achieves 80 PLUS Platinum certification with its 92 % efficiency at 50 % system load.

MICRO TOLERANCE LOAD REGULATION
Seasonics latest design keeps the output voltage within a very tight range, achieving under 0.5 % load regulation. This impressive electrical performance and stability makes this power supply an ideal choice for high-performance systems.

Technical Specifications
– 80PLUS Platinum
– Cybenetics Efficiency Level TBA
– Cybenetics Noise Level TBA
– Form Factor Intel ATX 12 V
– Dimensions 210 mm (L) x 150 mm (W) x 86 mm (H)
– Fan Information Fan Size 135 mm
– Fan Control Premium Hybrid Fan Control
– Fan Bearing Fluid Dynamic Bearing
– Life Expectancy 50,000 hours at 40 degreesC, 15 % – 65 % RH
– Cable Information Modularity Fully Modular
– Cable type Flat black cables
– Electrical Features Operating Temperature 0 – 50 degreesC
– MTBF @ 25 degreesC, excl. fan 150,000 hours
– AC Input Full Range
– Protection OPP, OVP, UVP, OCP, OTP, SCP
– Safety and Environmental Safety and EMC cTUVus, TUV, CB, CCC, BSMI, EAC, CE
– Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH
– Warranty 12 Years
