SAPPHIRE is the largest AMD graphics card manufacturer in the world and now more than a decade guarantee of high quality pixel accelerator. The range encompasses the entire repertoire from the entry level right up to the overclocked versions with separate cooler designs. So of course it can not take the manufacturer to be in the development of Radeon-R7 and R9er series of the party.
AMD introduces the R7 and R9 of two new graphics cards series, replacing the Radeon HD series. The different models are doing all players - from casual gamers to hardcore true enthusiasts - satisfy.
Sapphire Radeon R9 280X Tri-X OC, 3072 MB DDR5, DP, HDMI
SAPPHIRE is the largest AMD graphics card manufacturer in the world and now more than a decade guarantee of high quality pixel accelerator. The range encompasses the entire repertoire from the entry level right up to the overclocked versions with separate cooler designs. So of course it can not take the manufacturer to be in the development of Radeon-R7 and R9er series of the party.
AMD introd...
- SKU: GCSP-103
- MPN: 11221-22-20G
- EAN: 4895106273788
- Warranty: 12 Months
SAPPHIRE is the largest AMD graphics card manufacturer in the world and now more than a decade guarantee of high quality pixel accelerator. The range encompasses the entire repertoire from the entry level right up to the overclocked versions with separate cooler designs. So of course it can not take the manufacturer to be in the development of Radeon-R7 and R9er series of the party.
AMD introd...
Featured products
No products found

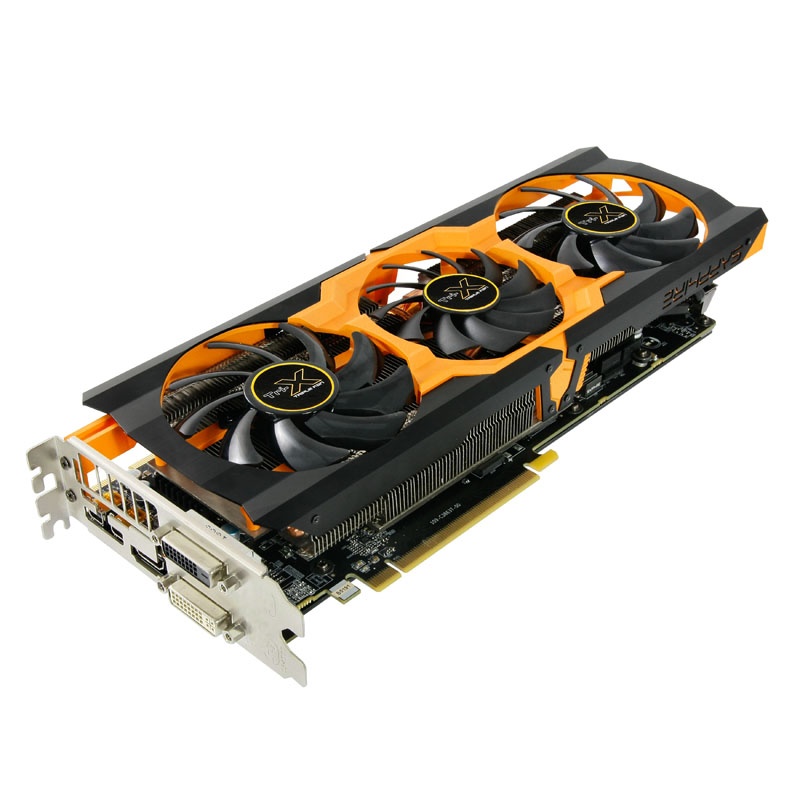

With SAPPHIRE R9 280X Tri-X OC a model of R9 series, which is clearly classified in the high-end segment appears. The map arranges itself in terms of performance in around the level of the HD 7970. The graphics card appears in the 2-slot format and has a large heat sink on the three fans sit
The GPU is clocked at the SAPPHIRE Radeon R9 280X Tri-X OC with 1100 MHz maximum boost and memory with 3200 MHz (6400 effective). The RAM is three gigabytes in size and connected via a 384-bit interface.
The bandwidth in communication between the graphics card and motherboard or CPU falls high out, because the SAPPHIRE R9 280X Tri-X OC uses the latest interface standard PCI Express 3.0, whereby – with suitable residual Hardware – the bandwidth over PCIe 2.0 on 16 GB / s doubles.
The SAPPHIRE R9 280X Tri-X OC relies on DirectX 11.2 and controls to monitors via two DVI and one HDMI port or two mini display ports, whereby multiple displays at the same time the corresponding (3D) can take over representation thanks to Eyefinity and CrossFireX. In this case, up to five monitors simultaneously supported.
Sophisticated techniques such as the Mantle API help to create a faster and more direct connection to the GCN architecture and therefore for a much faster computation and therefore ultimately also for a more realistic gaming experience. The power is supplied via two 8-pin PCIe connectors. For operation, the manufacturer recommends a power supply with at least 750 watts of power.
In order to realize the full potential of the card in the future, new drivers from AMD should (formerly ATI) or SAPPHIRE be downloaded and installed at regular intervals. This is thanks to the Gaming Evolved clients now also easily and completely automates possible.
Technical Details:
Dimensions: 308 x 41 x 113 mm (W x H x D)
Height: 2-Slot
GPU: AMD Radeon R9 280X
Type: Tahiti XTL
Manufacturing process: 28 nm
GPU clock speed: 1100 MHz (. Maximum boost)
Shader units: 2,048
ROP Units: 32
Memory Size: 3072 MB
Memory clock: 3200 (6400) MHz
Type: GDDR5
Memory interface: 384-bit
Slot: PCIe x16 (PCI / PCIe 2.x / PCIe 3.0)
connections:
2x Mini-DisplayPort
1x HDMI 1.4a
1x DVI-D (Single-Link)
1x DVI-I (Dual-Link)
Power supply: 2x 8-pin PCIe
Recommended power supply Output: min. 750 Watt
Features: DirectX11.2, OpenGL 4.4, OpenCL 1.2, 2.0 Eyefinity, CrossFireX, HD3D, triple-fan cooler, UEFI support, True HD support, Mantle API, Gaming Evolved client
Compatibility (operating system): Windows 8, 7
