SAPPHIRE is the largest AMD graphics card manufacturers in the world and now more than a decade guarantee for high quality pixel accelerator.
The range encompasses the entire repertoire from the entry level right up to the overclocked versions with separate cooler designs. So of course it can not take the manufacturer to be the expansion of the Radeon R7er and R9er series of the party .

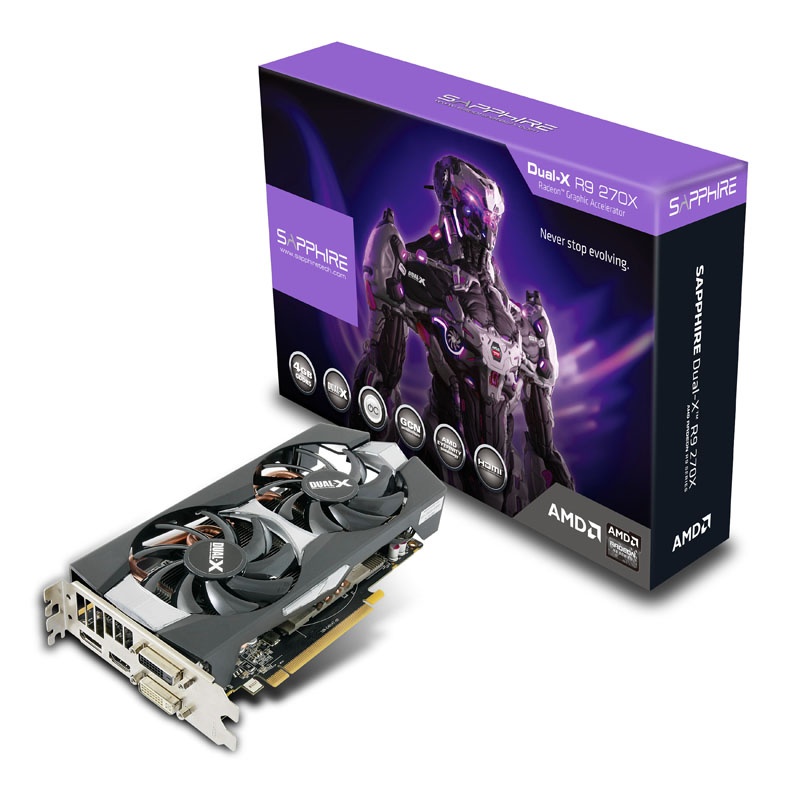

SAPPHIRE Radeon 270X R9 Dual-X OC boost, 4096 MB GDDR5, DP, HDMI
SAPPHIRE is the largest AMD graphics card manufacturers in the world and now more than a decade guarantee for high quality pixel accelerator.
The range encompasses the entire repertoire from the entry level right up to the overclocked versions with separate cooler designs. So of course it can not take the manufacturer to be the expansion of the Radeon R7er and R9er series of the party .
- SKU: GCSP-063
- MPN: 11217-04-20G
- EAN: 4895106268449
- Warranty: 12 Months
SAPPHIRE is the largest AMD graphics card manufacturers in the world and now more than a decade guarantee for high quality pixel accelerator.
The range encompasses the entire repertoire from the entry level right up to the overclocked versions with separate cooler designs. So of course it can not take the manufacturer to be the expansion of the Radeon R7er and R9er series of the party .
Featured products
No products found
AMD introduces the R7 and R9 two new graphics cards series , replacing the Radeon HD series . The different models are doing all players – from casual gamers to hardcore enthusiasts – satisfy.

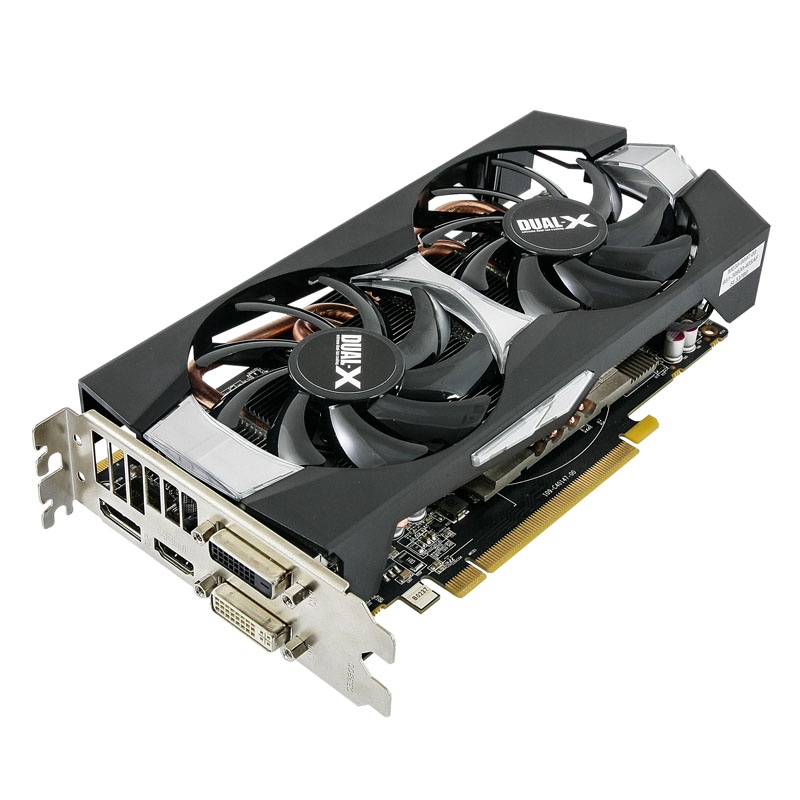

With the SAPPHIRE R9 270X Dual -X OC boost with 4 GB of GDDR5 memory , a good performance model , which is already knocking at the door of the enthusiast – class is displayed. The graphics card appears in the 2- slot format and has a large heat sink on the two fans sitting .
The GPU, which in this case means Curacao XT , clocked at SAPPHIRE Radeon 270X R9 Dual -X OC with 1.070 MHz maximum boost and the memory at 2800 ( 5600 effective ) MHz . The RAM is four gigabytes in size and connected via a fast 256- bit interface .
The bandwidth in communication between the graphics card and motherboard or CPU falls high out , because the SAPPHIRE R9 270X Dual -X OC Boost 4GB uses the latest interface standard PCI Express 3.0 , which is – with appropriate residual hardware – the range over PCIe 2.0 doubles to 16 GB / s .
The SAPPHIRE Radeon R9 270X Dual -X OC Boost 4GB relies on DirectX 11.1 and controls monitors via DVI -D , DVI -I and a HDMI port and a display port , with thanks to Eyefinity and CrossFireX various matching displays also can accept the ( 3D ) representation . The power is supplied via two 6 -pin PCIe connectors .
In order to realize the full potential of the card in the future , should new drivers from AMD (formerly ATI) or SAPPHIRE be downloaded and installed at regular intervals.
Technical details :
Dimensions: 228 x 35 x 109 (W x H x D)
Height: 2 slot
GPU: AMD Radeon R9 270X
Type: Curacao XT
Production : 28 nm
GPU clock : 1,070 MHz (max boost)
Shader unit : 1,280
Memory Size: 4096 MB
Memory Clock: 2800 ( 5600 ) MHz
Type: GDDR5
Memory interface: 256-bit
Slot PCIe x16 ( PCI / PCIe 2.x / PCIe 3.0)
connections:
1x DisplayPort
1x HDMI
1x DVI-I ( dual link)
1x DVI-D ( dual link)
Power supply: 2x 6- pin PCIe
Recommended power supply – output: min. 500 watts
Features: DirectX 11.1, OpenGL 4.2, 2.0 Eyefinity , CrossFireX , HD3D , TriXX utility , Dolby True HD support
Compatibility ( OS ): Windows 8, 7
