Originally known primarily for its quality CPU cooler for all conceivable situations manufacturer RaiJintek can be case-range continues to grow and presents again a case of wonderful anodized aluminum. The equally colorful and extremely compact model of the new RaiJintek Styx is the popular, cognate Cube called Metis, which will now be expanded in the form of Styx, and therefore the first micro-ATX motherboard ?? So complete and powerful hardware ?? can accommodate. Again, the naming was inspired by Greek mythology and so the dead river Styx in the kingdom of the same name deity is known to include in it Bathers invulnerable and even the other gods, including Zeus himself contributed their oaths after Titanomachy always Styx.

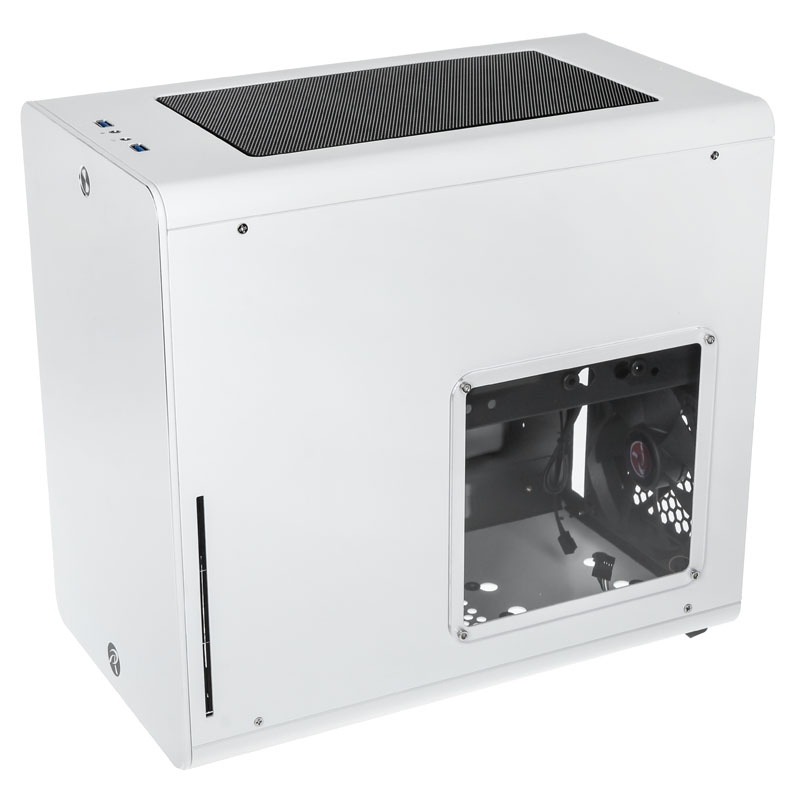

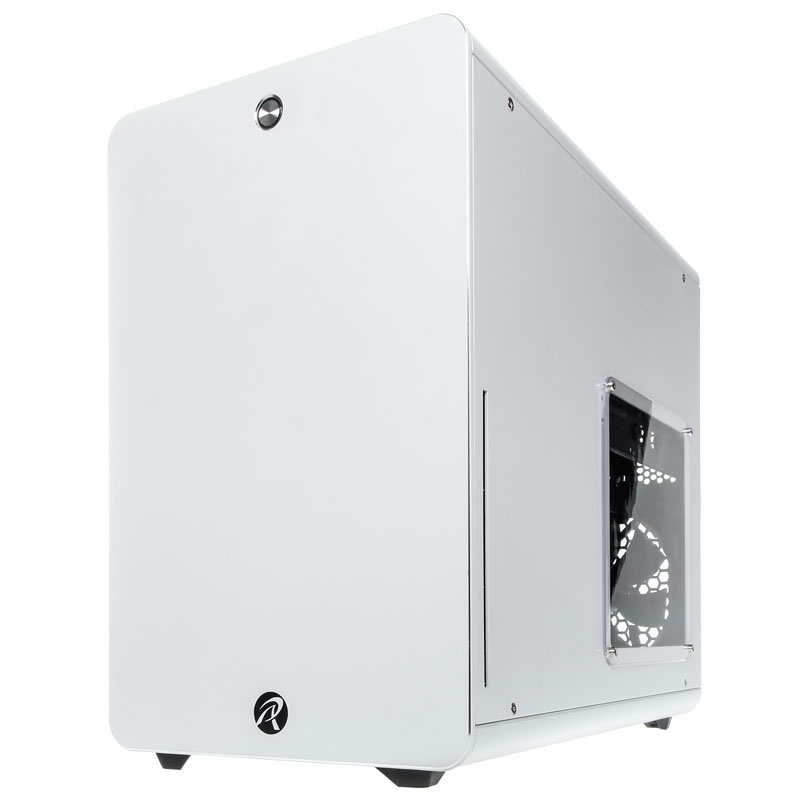

Like the little brother Metis RaiJintek united with his latest creation wonderfully highest design art from Germany with classic pure look and an attractive price / performance ratio. The outward appearance impresses Styx with its simple but elegant design in elegant white, which is decorated on the front by the manufacturer logo and the illuminated power button. In this version, the right side part also a window is cut, which gives a number of opportunities, its housing with LED illumination optical upgrades and reveals excellent insight on the hardware installed. The sleek aluminum case for micro-ATX motherboards is made of 1.5 mm thick, anodized aluminum and measures 21.0 cm (width) by 33.5 cm (height without feet) times 36.0 cm (depth) , The vertically oriented motherboard is located on a black lacquered partition made of steel.

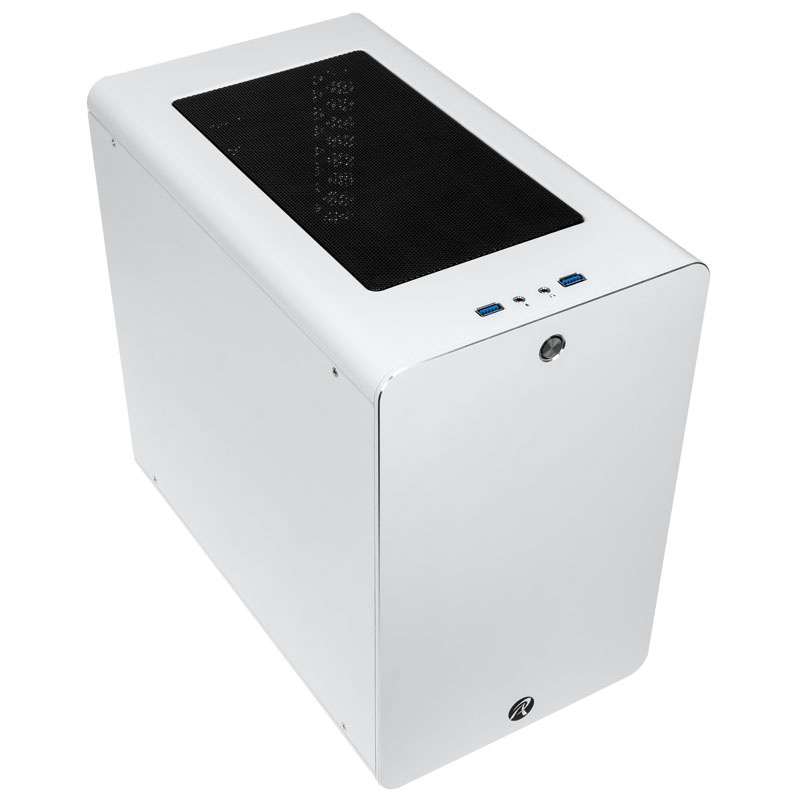

RaiJintek created so that the innovative design of the Styx a good balance between the smallest possible volume, yet usable space for powerful hardware, thus combining an attractive flexibility in the choice of components with small footprint yet. The cleanly designed top (lid) is home to the most accessible placed I / O panel with two USB 3.0 ports and audio inputs and outputs. The ventilation system inside provides that on the opening or an optional 120 mm fan at the bottom of fresh air is sucked in and heat for one over the pre-installed 120 mm fan on the rear and two optional 120 mm fans is transported away on the lid. In addition, the rear of the front vertical mounted PSU blows in full ATX form its heat down from the case.
Instead of case fans, the cover also includes fans maximum 57 mm deep 240mm radiator for water cooling can be secured. The Styx also offers enough space to a 3.5-inch or two 2.5-inch drives on the ground, two 2.5-inch drives behind the motherboard tray and either two 3.5-inch or 2.5-inch drives in a drive carrier (which in turn is attached to the motherboard on the right side) to attach always decoupled. Behind the front is on top of that an external 5.25-inch slot for slim slot-in ODD housed with lateral opening slot. Dual-slot gaming graphics cards can be up to 28 cm long in the Styx and strong Coolers Tower format can easily be built up to a height of 180 mm. So technology miracles are possible! are the stable feet, which additionally provide for a good decoupling of vibrations on the underside.
Technical details:
Dimensions: 210 x 335 x 360 mm (W x H x D)
Material: aluminum, steel
Weight: approx 4.5 kg
Color white
Form Factor: Micro ATX, Mini-ITX
Fan:
1x 120mm (rear, pre-installed)
2x 120 mm (cover, optional)
1x 120 mm (bottom, optional)
Radiator Mountings (without fans slots):
1x 240mm (lid, max. 57 mm deep in total)
1x 120 mm (rear)
Drive Bays:
3x 3.5 inch (internal, is 4x 2.5-inch slots)
6x 2.5 inch (internal, is 3x 3.5 inch slots)
PSU 1x standard ATX (optional)
Expansion Slots: 5
I / O panel:
2x USB 3.0 (internal connection)
1x per Audio In / Out
Maximum video card length: 280 mm
Maximum CPU cooler height: 180 mm
