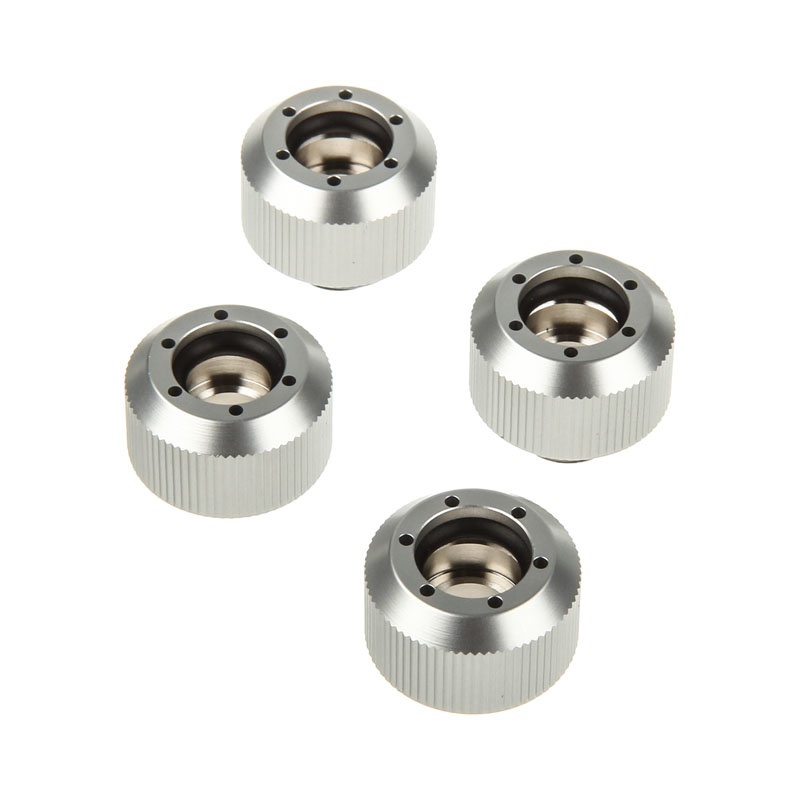

PrimoChill Revolver Compression Groove Fitting 4x Set for Acrylic Tube 13/10mm - Silver

PrimoChill is a small family brand from New Mexico in the United States , which has made since 2001 with lovingly designed products a name in the Watercooling and especially the modding scene. It is known PrimoChill among other things as a provider of cooling liquids , color additives for this or hoses . With the series of turret ports that are reminiscent of a revolving drum , the Americans make...

Primochill
  • SKU: CB9-WASC-191
  • MPN: F-RCSK3812-4
  • EAN: 0897337038215
  • Warranty: 12 Months
This product is now End of Life
Alternative items from  Primochill
  • Barrow NVIDIA RTX 5090 MSI Suprim + Vangaurd, aRGB Graphics Card Waterblock + Backplate - B-Grade
    Barrow NVIDIA RTX 5090 MSI Suprim + Vangaurd, aRGB Graphics Card Waterblock + Backplate - B-Grade
    Code: BG-64BS-805
    Original price was: £149.99£124.99.Current price is: £66.40£55.33. Inc VatEx Vat
  • Jonsbo TF3-360SCB AIO CPU Cooler with LCD, ARGB - 360mm, Black
    Jonsbo TF3-360SCB AIO CPU Cooler with LCD, ARGB - 360mm, Black
    Code: WASE-957
    Original price was: £179.99£149.99.Current price is: £155.00£129.17. Inc VatEx Vat
  • Barrow NVIDIA RTX 5090 ASUS ASTRAL, aRGB Graphics Card Waterblock + Backplate
    Barrow NVIDIA RTX 5090 ASUS ASTRAL, aRGB Graphics Card Waterblock + Backplate
    Code: BAR-GP35
    Original price was: £149.99£124.99.Current price is: £70.00£58.33. Inc VatEx Vat

PrimoChill is a small family brand from New Mexico in the United States , which has made since 2001 with lovingly designed products a name in the Watercooling and especially the modding scene. It is known PrimoChill among other things as a provider of cooling liquids , color additives for this or hoses . With the series of turret ports that are reminiscent of a revolving drum , the Americans make...

Details

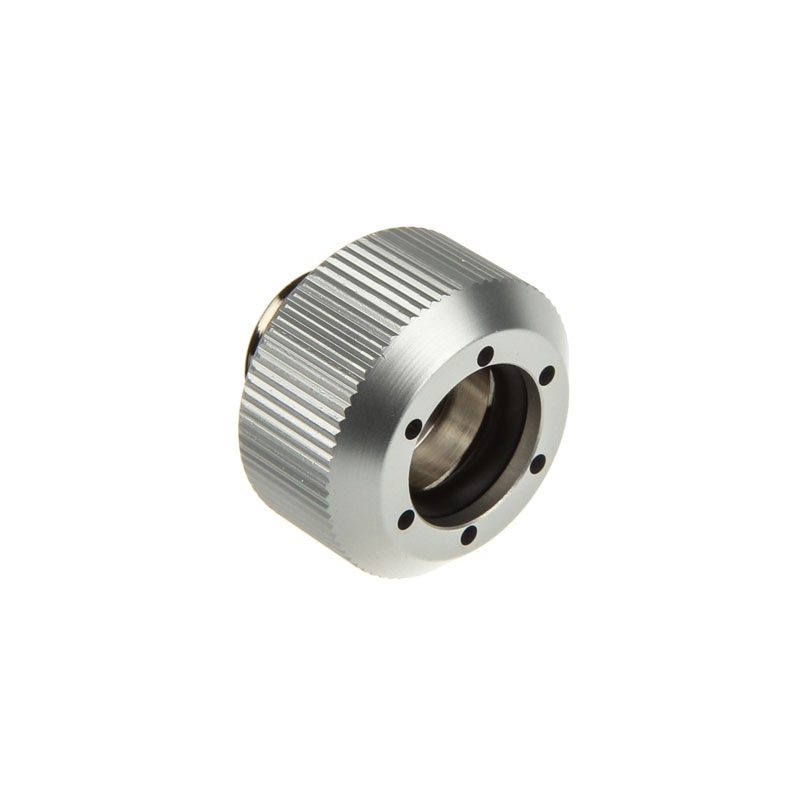

When joining such an acrylic tube with a cooler or other watercooling component , then either ideally back to such a special connection because so on the one hand , the tube is firmly attached to the nickel-plated brass fitting , on the other hand not the black anodized nut made of aluminum but too much pressure on the fragile Rigid Acrylic Tube exercises .

So that adequate sealing is provided and does not leak between the coolant tube and connector has the revolver – fitting a sealing ring ( O-ring) of rubber. The knurled nut is here for a good grip when tightening a fine diamond pattern. The compression fitting is suitable for one hand 13/10-OD/ID-Tubes and on the other side there is a G1/4 thread.

Technical details :
Compatibility: acrylic tubes 13 /10 mm Outside-/Inside diameter
Thread: G1 / 4 inch
Number : 4
Color: Silver
Material: Nickel plated brass (fitting ) , anodized aluminum ( nut )

Please Note: These fittings are for use with the Primochill Acrylic Tubing only and cannot be used with Flexible tubing or any other Acrylic tubing.
