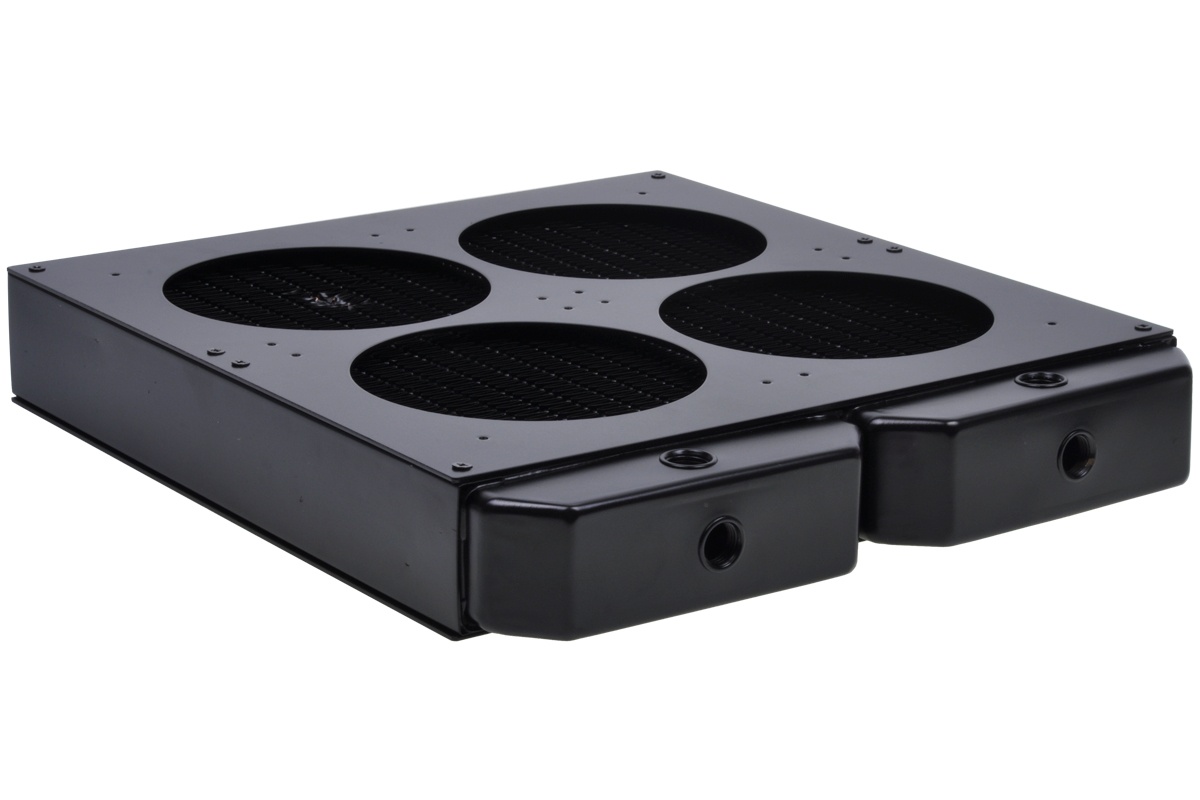

The absolute high-end radiator with excellent price-performance ratio! The new Phobya radiators offer top-of-the-line cooling performance combined with excellent appearance and high-grade build quality. The Phobya radiators of the new Xtreme series belong to the absolute high-end heat exchangers on the market.
The copper fins are Specially designed to work perfectly with Super-Silent fans (with low Airflow and noise level). The parallel cooling channels additionally Ensure a low flow resistance. At the side of the radiator M3 threads are Implemented to allow easy mounting eg on the case side.
The absolute high-end radiator with excellent price-performance ratio! The new Phobya radiators offer top-of-the-line cooling performance combined with excellent appearance and high-grade build quality. The Phobya radiators of the new Xtreme series belong to the absolute high-end heat exchangers on the market.The copper fins are Specially designed to work perfectly with Super-Silent fans (with low...
The absolute high-end radiator with excellent price-performance ratio! The new Phobya radiators offer top-of-the-line cooling performance combined with excellent appearance and high-grade build quality. The Phobya radiators of the new Xtreme series belong to the absolute high-end heat exchangers on the market.The copper fins are Specially designed to work perfectly with Super-Silent fans (with low...
No products found
This radiator can therefore be operated passively, the performance is plenty even for larger systems. For this purpose the fan grill can be removed to allow contact of the whole surface with the surrounding air Which greatly Improves passive cooling performance.

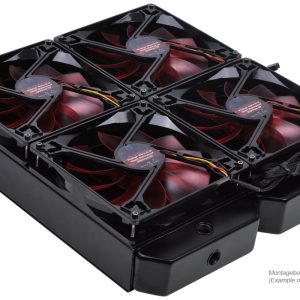

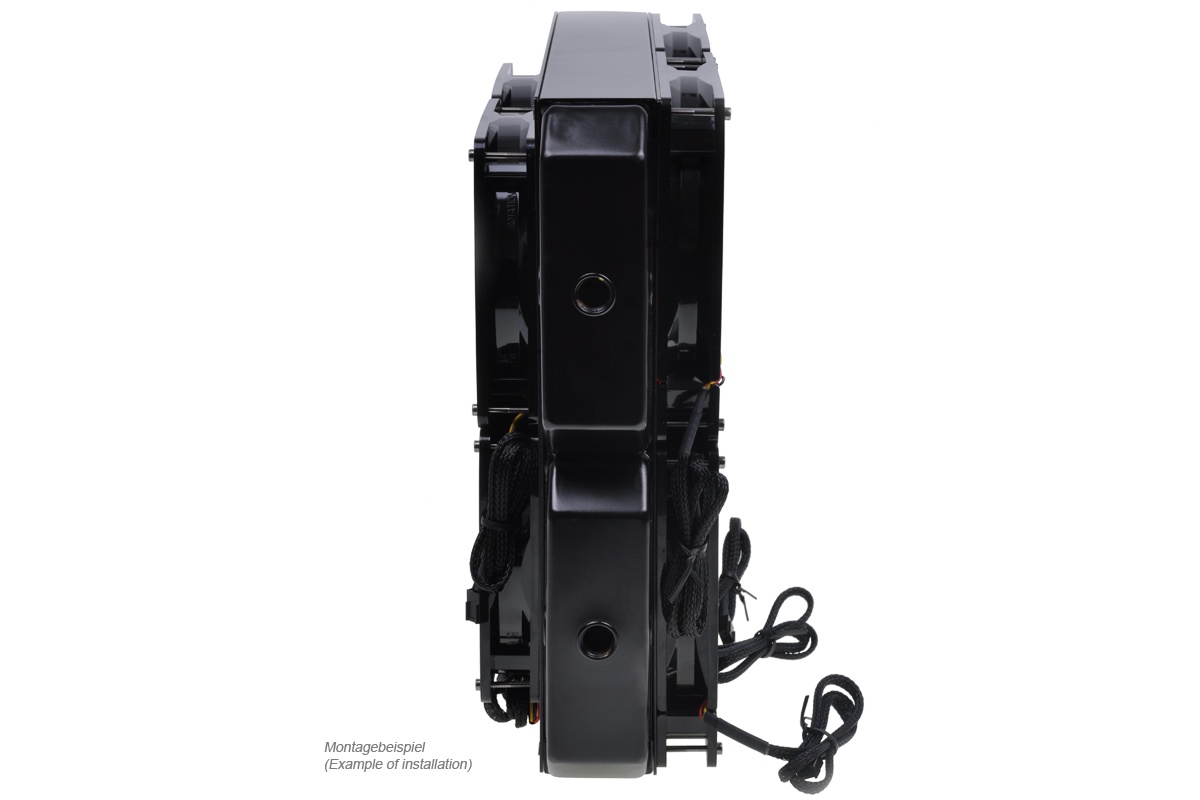

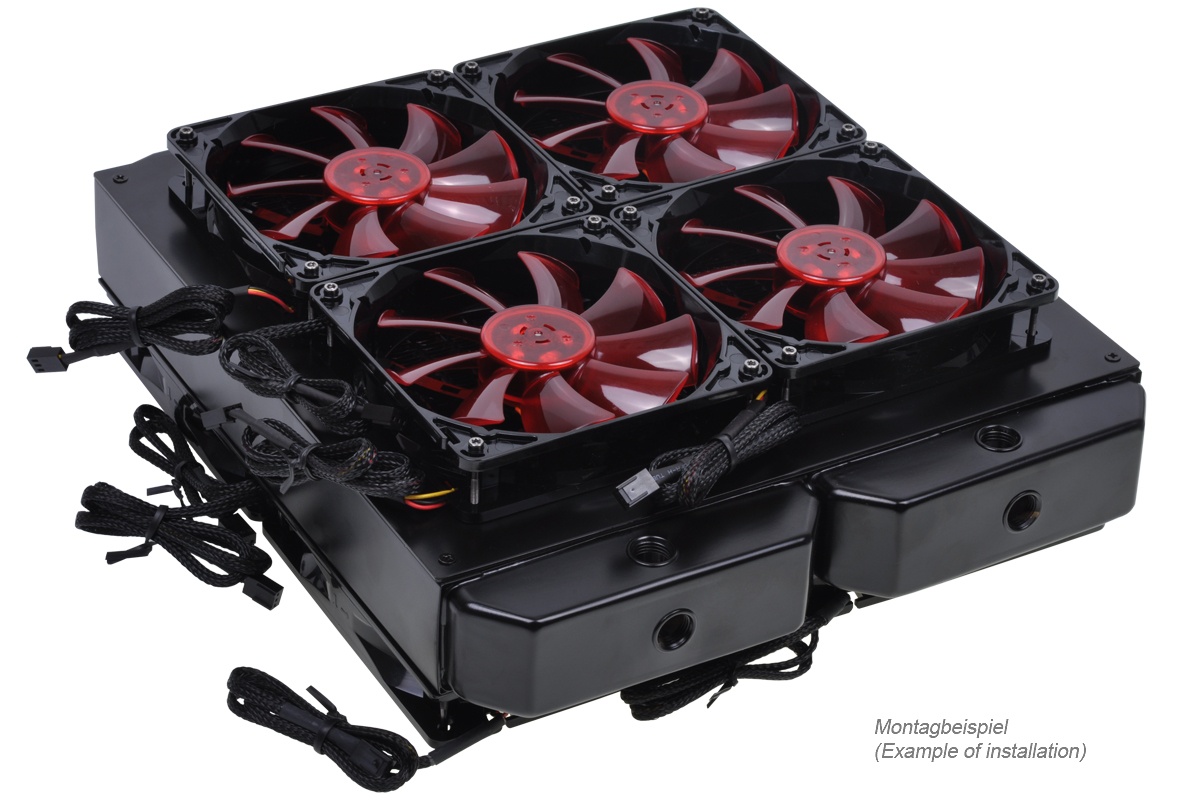

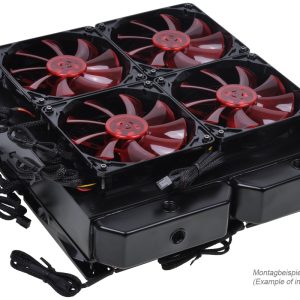

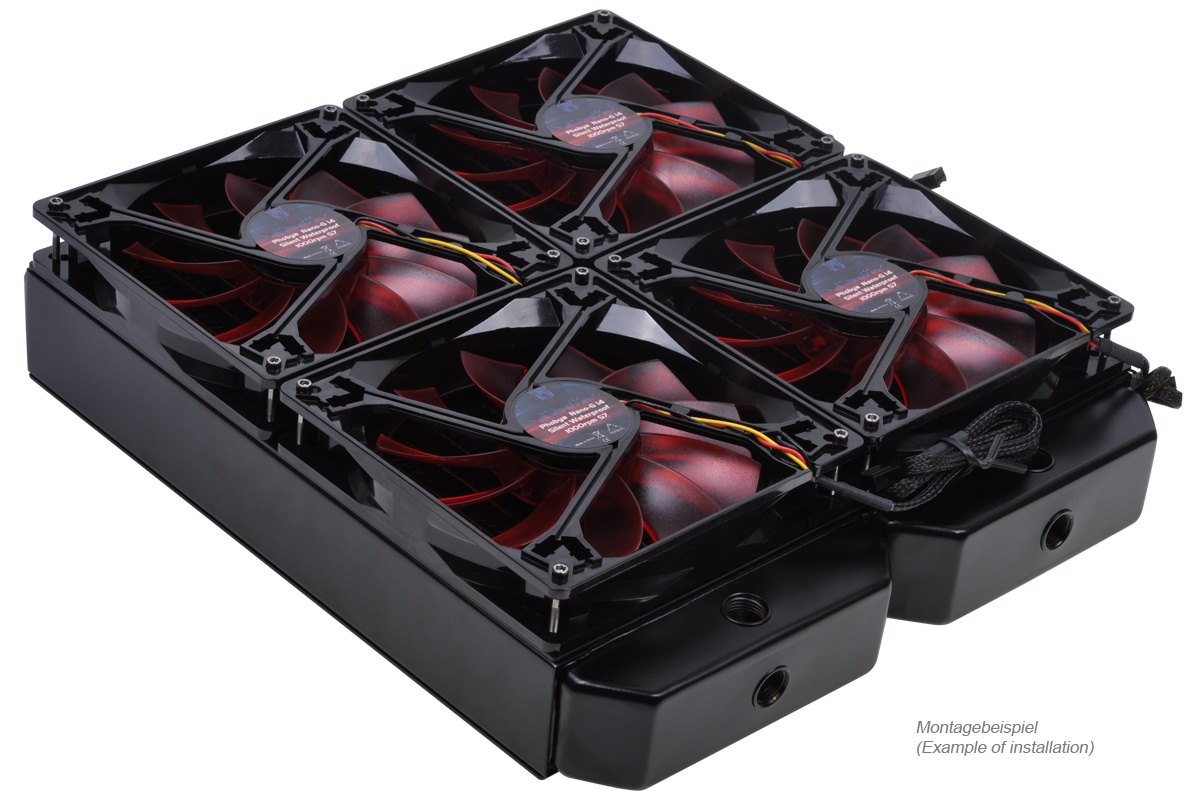

You can choose between two blinds are included. One blind is for 120mm fan and the other for 140mm fan. With demand so 8 fans (four 120mm and 140mm fans four) can be mounted.
The radiator has 7 G1 / 4 connection threads for maximum fitting compatibility.
Full Copper
An additional new feature of the now completely black radiator are now the caps in black nickel brass. The sides on this version are mounted with a more complicated prodecdure Which Means thatthey are a bit more expensive but so look just great! More than that the V2 has not only copper fins, but so copperhead copperhead channels and chambers only the threads are made of brass. For Those Who what copper-only water systems this radiator is the first choice.
Technical specifications:
Material: Copper fins, copper channels, chambers copper, brass threads
Dimensions: 440x420x45mm
Connection threads: 3x G1 / 4
Weight: approx. 3025g
Mounting Possibility: 36x M3 threads on top (for 9x120mm fans)
Pressure tested: 2bar
Extent of delivery:
1x Radiator
Mounting material
(If only 25mm lüfer to be fixed, in addition 30mm screws are be necessary. These are not included but can be ordered here)
Please note before and During installation:
– Flush radiator before use
-The Fan grill is loose until fans are mounted Which fixate the grill
-Over-Tightening of the screws can damage the radiator. Please make sure the screws so did not damage the radiators fins. Damages due to improper use are not covered by the warranty.
-Other Available M3 screws may be too long for use on this radiator. Make sure to only insert them so far did the radiator fins remain undamaged
