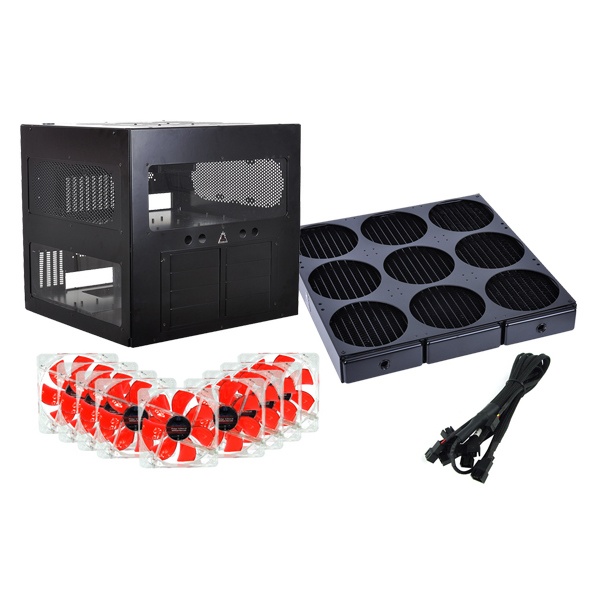

Now availible as bundle with great discount:
1x Phobya WaCoolT 1 Medium Water Cube Case Black
1x Phobya Xtreme NOVA 1080 Radiator
L12 9x Phobya G-Silent 12 1500rpm Red LED (120x120x25mm)
LK 1x Phobya Y-Cable 3Pin Molex to 9x 3Pin Molex 60cm – Black
Product description Water Case:

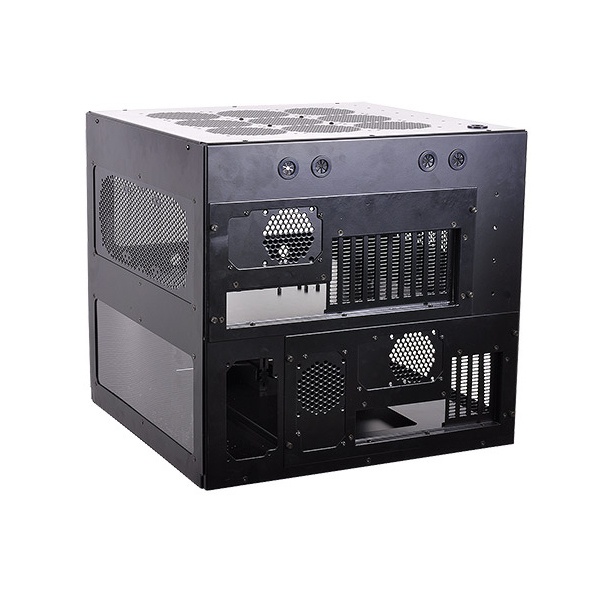

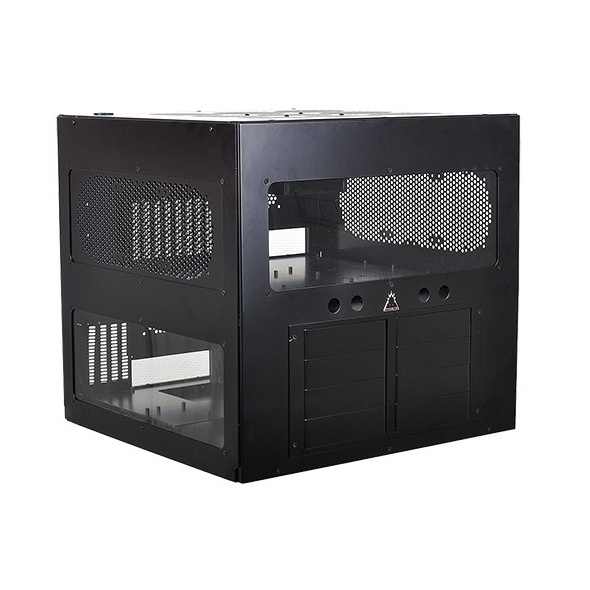

The first truly watercooling-oriented enclosure: The Phobya WaCoolIT 1 Medium Water Cube Case black!
First highlight of this cube is the Possibility to install two motherboards (top max XL-ATX, Micro-ATX bottom max) as well as to operate and cool them independently. This is especially useful for home networks or LAN applications: Run a gaming system on top and ec a file-or game server at the bottom.
Second highlight are the two folding side panels at the right and left side, as well as the motherboard socket plates on slides. This permits quick access to the hardware respectively watercooling components and makes installation much easier.
The enclosure is shipped fully assembled despite the modular design!
Water is a topic on cooloing Which development of this enclosure focussed. Tubing and cable loop-throughs were oiptimized for this application. All rubberized openings for hoses or cables allow removal of the protective rubber frame to allow installation of Fillports compatible with 19mm holes. Many different radiator, reservoir and pump mounting options are integrated. With this enclosure Phobya has brought the first truly water cooling-optimized enclosure to the market!
Motherboards and graphics cards:
Especially in the high-end sector, # in which many water cooling users feel at home, large compatibility with motherboards and graphics cards is essential. Hence this enclosure is not only compatible with standard ATX, mATX, and eATX μATX but so Allows mounting of SR-2 / XL-ATX boards without any rebuilding. Even for large graphics cards, especially dual-GPU cards, this enclosure offers plenty of space. Without modifications to the enclosure, graphics cards with a length of up to 46cm can be installed. This is sufficient for most graphics cards available.
Special features of the Phobya WaCoolT 1 medium Water Cube Case Black:
Top: 1x NOVA 9x120mm radiator (or smaller). For installation the top-mounted 3-bay 3.5 drive mount must be removed or repositioned. The top has 1 loop-through tubing / Fillport 19mm opening
front, right side and LEDT: 5 openings are integrated: 3 windows and two radiator mounting possibilities: 1x 360mm radiator (or smaller) or 1x280mm radiator (or smaller). Additionally the front plate features 4 holes for 19mm buttons as well as 8 drive bays
Rear: 3x 80mm radiator (instead of PSUs), 4x hole loop-through / Fillport 19mm openings, two removable motherboard socket plates, up to four power supllies can be installed. Mounting holes for external installation of a tube reservoir are implemented.
Internal middle level: 4x preparations for pump mounting as well as 10x tubing / cable loop-through openings and loop-though openings for ATX plug
Bottom plate: 2x preparations for pump mounting and 8x HDD cases, at the underside of the bottom plate 4 feet are installed.
Compatibility for pump installation (amongst others): Laing DDC, Laing D5, Eheim 1046 (HPPS, Aqua Stream, Watercool 12V), Eheim 1048, Magicool 12V, Phobya DC 220, 260 & DC 400, EK-DCP 2,2 & DCP 4.0
Hardware compatibility:
Motherboard top: XL-ATX, SR-2, ATX, mATX (Micro ATX), eATX, μATX
Mainboard bottom: mATX (Micro ATX), μATX
Graphics card length: Up to 460mm
Wheels as feet
8x 5.25 drive bays with 8 front covers
3x 3.5 drive bays
4x PSU bays – three of Which with cover plate and 80mm fan mounting possibility, PSU length up to 400mm
Technical specifications:
Material: Steel
Colour: Black powder coated
Dimensions (LxWxH): 505 x 522 x 498mm (545mm with feet mounted)
Mounting screw for the enclosure: M4x5mm countersunk head
Weight: 28.800g
An illustrated mounting manual can be found here. (To be added soon)
Extent of delivery:
1x Phobya WaCoolT 1 Medium Water Cube Case Black
Mounting material
Allen key
Note: The optional buttons, not included, can be found here in black and silver.
Please note: For manufacturing reasons, the punching process may leave a slight waviness of the outer panels. Regrettably this can not be avoided completely.
