650 watts rated power in SFX format for particularly compact systems
No products found
– Efficiency certified with 80 PLUS Gold
– 92 mm fan with semi-passive operation at less than 30% load
– Modular connection cables with black sleeve for a tidy look
– Four 6+2-pin PCIe connectors for high-performance graphics cards

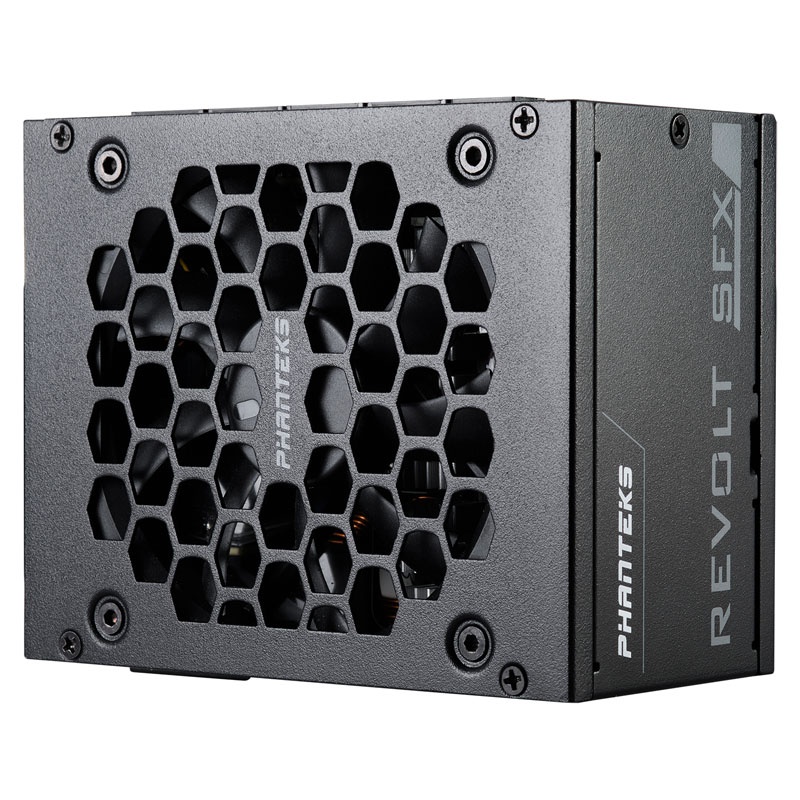

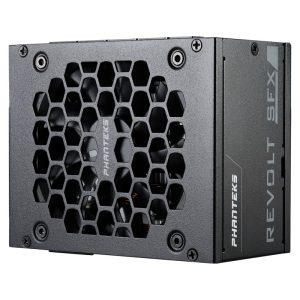

PHANTEKS Revolt SFX: Compact power supply with 80 PLUS gold efficiency
The SFX power supply PHANTEKS Revolt SFX with its 650 watts total output power is suitable for gaming PCs from the mid-range segment. The power supply works very efficiently, which results from the use of high-quality electrical components. The 80 PLUS Gold certified power supply achieves an efficiency of up to 90% at a load of 50%.
The POWER supply from PHANTEKS offers a classic black housing, which allows it to blend inconspicuously into dark builds. The fully modular connection cables with black sleeves ensure a tidy look inside the case.
With this power supply you have the possibility to simply remove cables that you do not need. Thus, you make optimal use of every centimeter and also manage to enable a better airflow inside your housing, as no annoying cables block the air circulation.
Thanks to its compact dimensions with a length of only 125 mm, the more modern connection cables and sufficiently strong power, the PHANTEKS Revolt SFX is ideal for users who need a quiet and small power supply for their ITX build.

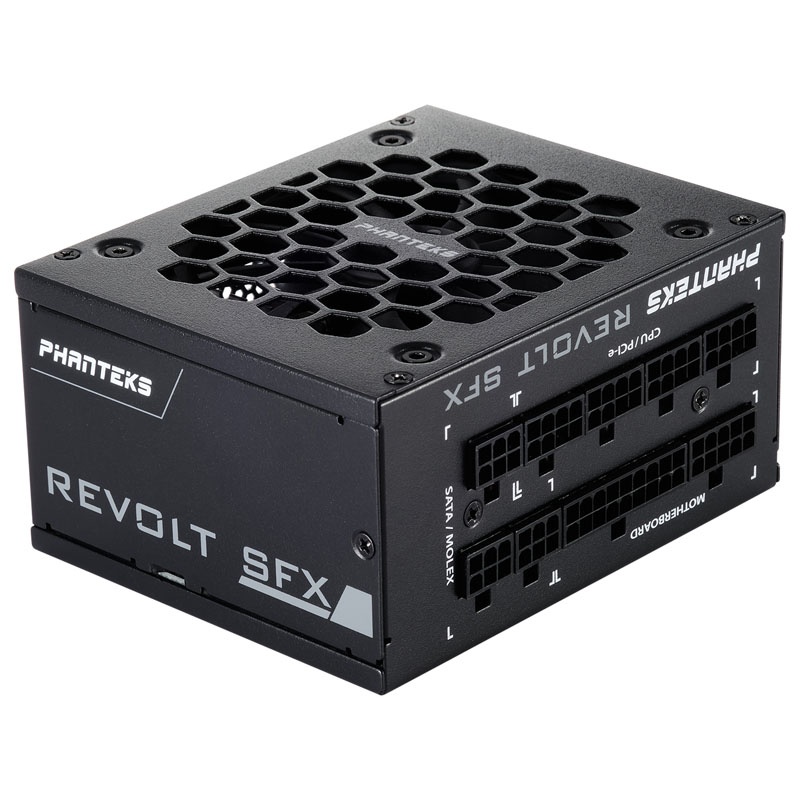

Modular connections for more flexibility
The PHANTEKS Revolt SFX convinces with its extensive connectivity. In addition to a 24-pin connector for the motherboard, it also provides two 4+4-pin connectors for the CPU and a high-performance graphics card. In addition, the power supply offers eleven SATA slots and a 4-pin Molex connector for drives and other components.
The 92mm fan ensures efficient cooling of the power supply. The fan has a smooth-running fluid dynamics bearing, which is characterized by a high smooth running during operation and a long durability.
The fan shuts down at a load of 30% or less. As a result, the power supply works completely silently. This feature makes the power supply particularly interesting for users who appreciate a completely silent power supply during office operation or multimedia applications.
Specifications:
Dimensions: 100 x 63.5 x 125mm (W x H x D)
Fan: 120 mm (fluid dynamics bearing, automatic control with semi-passive mode)
Efficiency: ~87/90/87%@20/50/100% load, 80 PLUS Gold Certificate
Form factor: SFX
Power: 650W
+3.3V: 20A
+5V: 20A
+3.3V & +5V: 120W
+12V: 54A / 648W
-12V: 0.3A / 3.6W
+5VSB: 3A / 15W
Life span: min. 100,000 hours at 25 degreesC
Connectors (detachable):
1x 24-pin ATX
2x 8-pin ATX/EPS
2x 8-pin PCIe x2
2x 6-pin SATA x4
1x 6-pin SATA x3 / Molex x1
Protection: OCP/ OPP/ UVP/ OVP/ OTP/ SCP / No-load strength / Reset Protection
Scope of supply:
1x PHANTEKS Revolt SFX power supply
1x 18+10-pin cable (one plug, 350 mm)
2x 8 (4+4)-pin cable (one plug, 400 mm)
2x PCIe 6+2-pin cable (two plugs, 400 mm / 100 mm)
2x SATA cable 90 degrees (four plugs 450 mm – 150 mm / 100 mm / 100 mm / 100 mm)
1x SATA 90 degrees and Molex cable 180 degrees (four plugs 450 mm – 150 mm / 100 mm / 100 mm / 100 mm)
1x power supply pocket
1x power cable
1x SFX to ATX holder
1x cable bag
1x zipper bag
1x operating instructions
1x Velcro cable tie
1x screw set
Manufacturers warranty: 10 years
