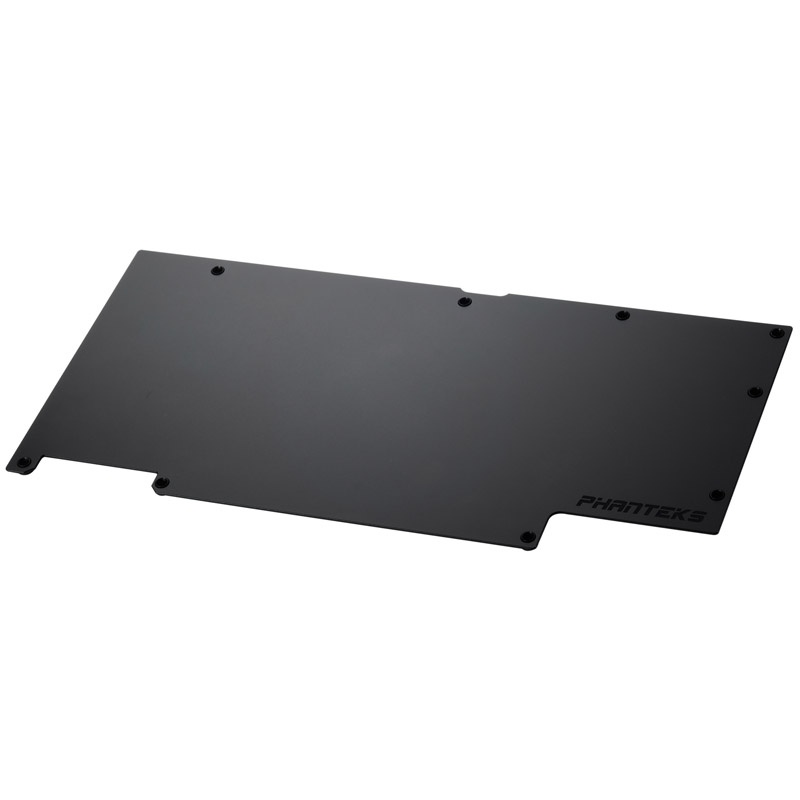

PHANTEKS Glacier G30 Strix Backplate ASUS Strix RTX 3080/3090 - black

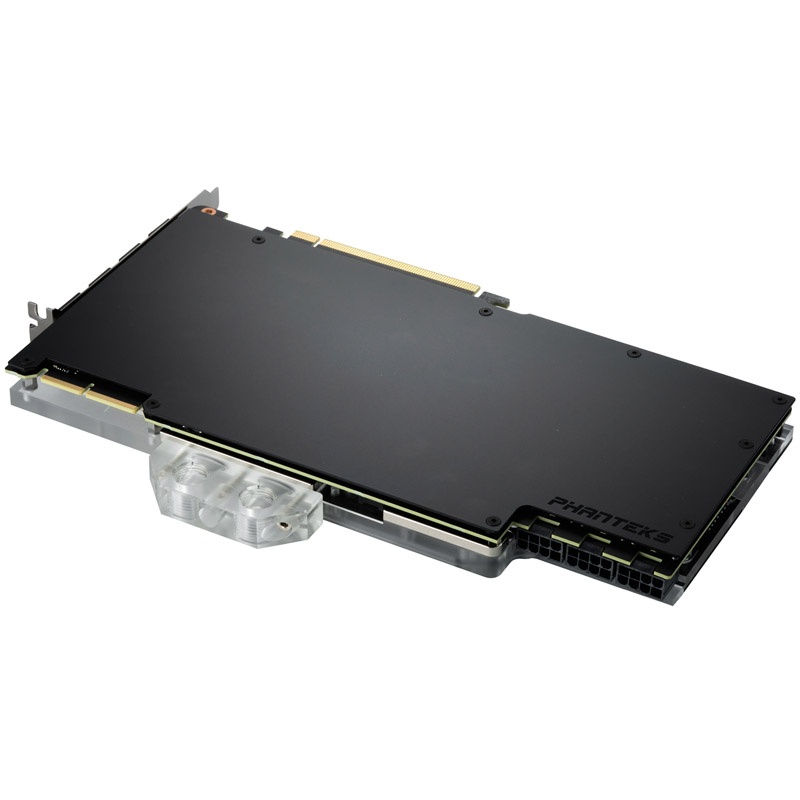

It significantly improves the force distribution in the area of the voltage regulator and contributes to the cooling of the PCB components thanks to the heat conducting pads. The backplate is black anodized and is mounted on the back of the graphics card.

In addition to the optical upgrade, the backplate offers greater stability for the graphics card with water cooler. This effectively prevents the PCB from bending as a result of one-sided tightening of the screws when attaching the main cooler and thus permanently exposed to tension.

Technical details:
– Dimensions: 265.5 x 1 x 127.5 mm (W x H x D)
– Material: black anodized aluminum
– Weight: 94 g
– Compatibility: ASUS ROG Strix RTX 3080/3090 with Glacier G30 Strix cooler

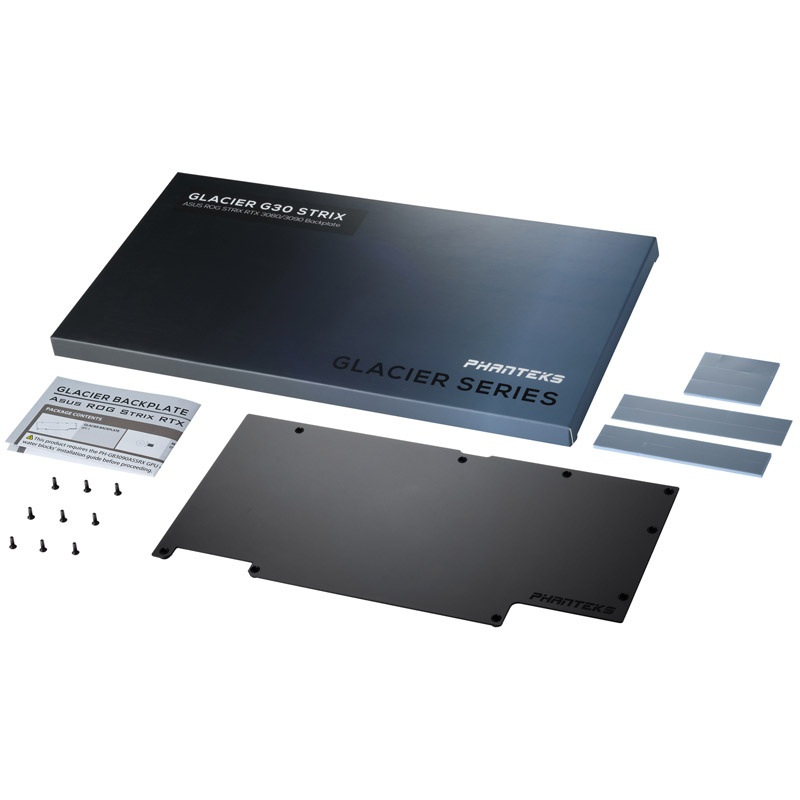

Scope of delivery:
– 1x PH-GB3090ASSRXBP_BK01 backplate
– 1x thermal pad 1 (38 x 14 x 1.75 mm)
– 2x thermal pad 2 (50 x 14 x 1.75 mm)
– 1x thermal pad 3 (12 x 14 x 1.75 mm)
– 1x thermal pad 4 (110 x 12 x 0.5 mm)
– 1x thermal pad 5 (70 x 12 x 0.5 mm)
– 1x thermal pad 6 (108 x 10 x 2.5 mm)
– 1x thermal pad 7 (78 x 10 x 2.5 mm)
– 9x M2.5×8 screws and washers
– 1x instruction
