Phanteks Enthoo Mini XL upgrade kit for 2nd mITX board

With this upgrade kit even the dual motherboard operation is possible, that is, so that two systems can be operated in the small, but its possibilities surprisingly large Phanteks Enthoo Mini XL at once – in parallel at the same time!

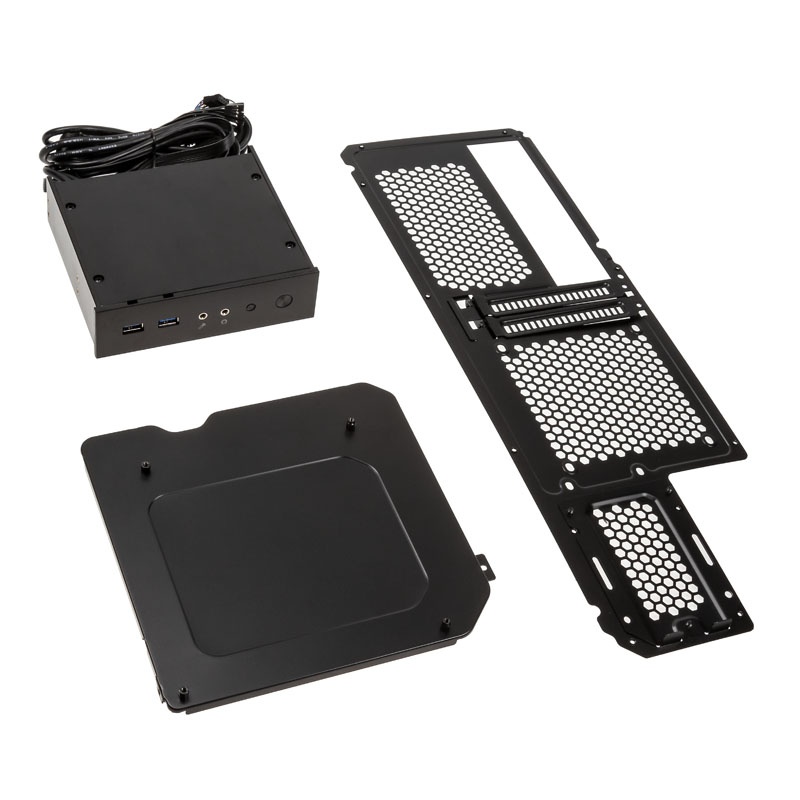

Therefore, this set is among others the motherboard tray included, which is bolted to the back of the power supply panel of the chassis and then receives an additional mini-ITX board. This sits at the top of case, above the main motherboard. Also includes an alternative rear wall for upgrade package.

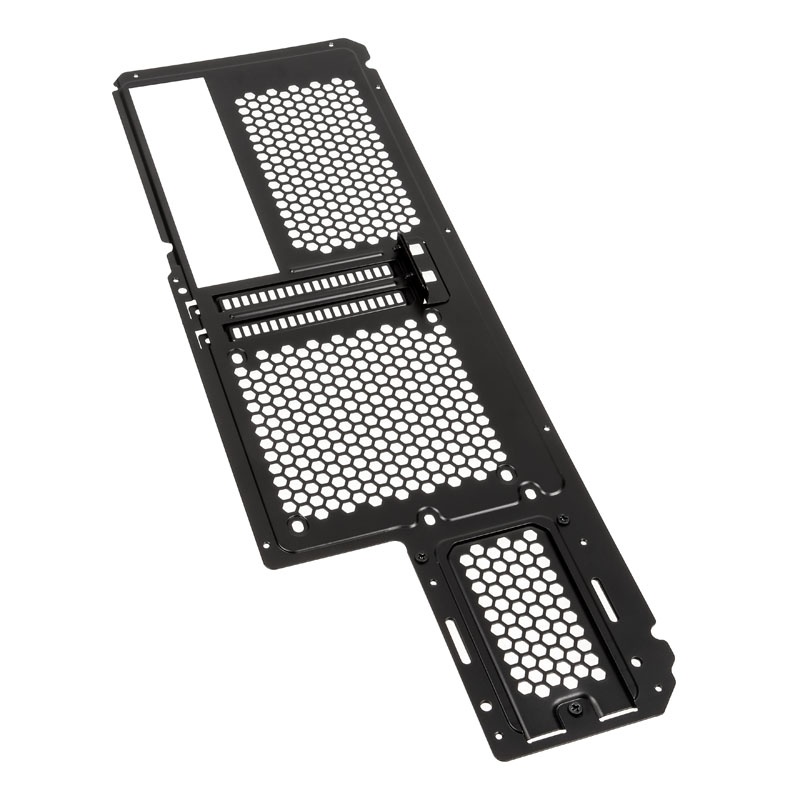

This is easy to screw on, replace the original rear of the tower and then offers instead of the upper fan slots a recess for the I / O Shield of the second motherboard and two PCI aperture on the use of plug-in cards on the mITX board. Screws for nimble solving are also included.

In addition, a further recesses below is present, in which a patch panel can be pushed. The small power supply then sits right next to the expansion cards of the lower motherboards and can ensure that the additional board is powered up with electricity.

Finally, a panel is included in the upgrade kit yet, that can be used in one of the external 5.25-inch slots of Enthoo Mini XL. The I / O panel provides two USB 3.0 ports, two audio jacks and power and reset buttons for switching on and off of the second system.

Technical details:

     Material: Steel
     Color: Black
     Form Factor: Mini-ITX
     Power supply: 1x SFX
     Compatibility housing:
     Phanteks Enthoo Mini XL
